Skyrc Toro 10 S60 60A ESC+Ares 3000KV/11.5T/2P Brushless Motor w/ Programming Card for 1/10 Scale Car

Availability: Out Of Stock

  • Price:$106.99
  • Price in reward points: 1070 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $104.85 $102.71 $99.50 $95.22 Contact US
Quantity:

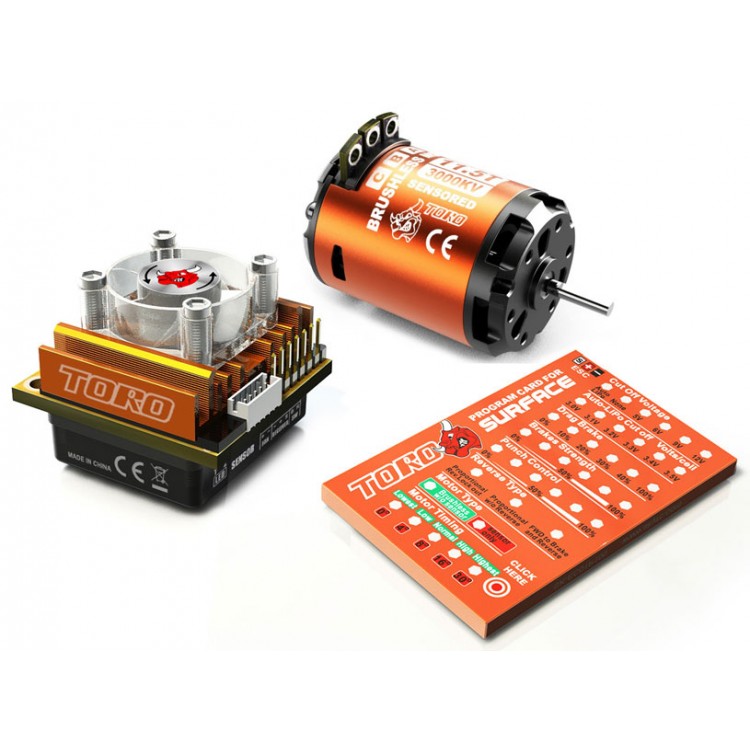

Skyrc Toro 10 S60 60A ESC+Ares 3000KV/11.5T/2P Brushless Motor w/ Programming Card for 1/10 Scale Car


ESC Motor Program Card
Toro 10 S60 60A ESC Ares 3000KV/11.5T/2P BL Motor  Y


ESC Features:

Controls, TORO 10 RTR Sensor

Rev/Brk/ or Fwd/Rev

Input Power (Cells)

2-3S LiPo/LiFe, 4-8 NiMH (12.6V Max)

Motor Limits

S120 120A

2S LiPo(4-6S NiMH): On Road 4.5T
Off Road 6.5T
3S LiPo(7-8S NiMH): On Road 6.5T
Off Road 9.5T

S60   60A

2S LiPo(4-6S NiMH): On Road 6.5T
Off Road 8.5T
3S LiPo(7-8S NiMH): On Road 10.5T
Off Road 17.5T

S45   45A

2S LiPo(4-6S NiMH): On Road 8.5T
Off Road 11.5T
3S LiPo(7-8S NiMH): On Road 13.5T
Off Road 17.5T

S35   35A

2S LiPo(4-6S NiMH): On Road 10.5T
Off Road 13.5T
3S LiPo(7-8S NiMH): On Road 13.5T
Off Road 18.5T

Linear BEC

5.0V 2Amp

Status LED

White LED, 3 color LED (Red, Green & Orange)

Thermal Overload Protection

Yes

Compatibility

Sensored Brushless Motor or Sensorless Brushless Motor

Dimensions(L*W*H/without fan)

40.5*37.5*24mm(1.6*1.47*0.95in)

Weight(Without wires)

45g(1.59oz)

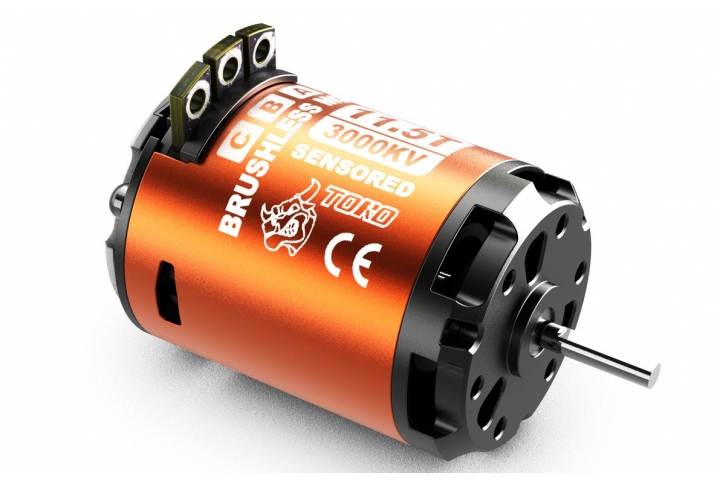

Motor Features:

Item Name Ares 3000KV/11.5T/2P BL Motor for 1/10 Car
Sensored /Sensorless sensored No loading @7.2V Current 3.2A
Turns 11.5T Max current 23A
KV value 3000KV Resistance (Ω) 0.0257Ω
Poles 2P Battery range 2S
Diameter 35.9mm Operation Temperature /
Motor length 51.5mm Max Temperature 180°
Extend shaft diameter  3.17mm Suitable car scale 1/10
Length of extend shaft 13.6mm Suitable ESC 60A
Weight  163g Connector Type /



Programming card specifications:

- Dimension: 52.5x79.5x6.6mm
- Weight:11g
