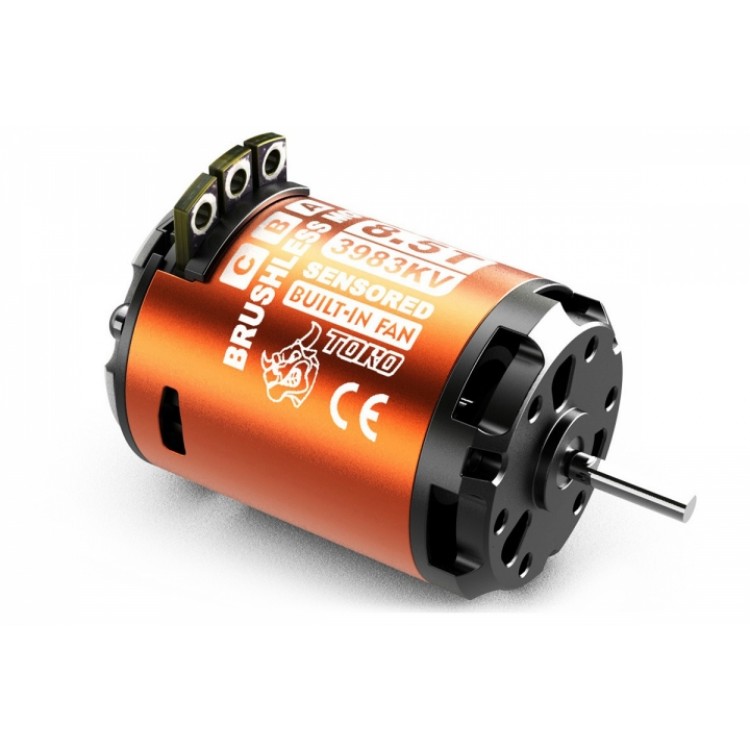

• SkyRc Ares Motor 1/10 Sensor 3983KV/8.5T/2P Brushless Motor for Car

SkyRc Ares Motor 1/10 Sensor 3983KV/8.5T/2P Brushless Motor for Car

Availability: Out Of Stock

  • Price:$49.99
  • Price in reward points: 500 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $48.99 $47.99 $46.49 $44.49 Contact US
Quantity:

SkyRc Ares Motor 1/10 Sensor 3983KV/8.5T/2P Brushless Motor for Car

Description:
ARES series brushless motor incorporates radial fan in its front end bell, creating powerful airflow to dissipate heat. The high efficient cooling system enables cooling operating temperature during and after running compared to motor of others.
Like all SKYRC brushless motors, the ARES Brushless motor is hand-wound for maximum copper fill, and each motor is individually tested for consistency to ensure the best product is sent to customers.

Features:
- Sensor -based for Excellent Torque and Low-Speed Driveability;
- Incorporate Radial Fan in Front End Bell;
- Adjustable Timing;
- Compatible with any Sensored/ Sensorless ESC;
- CNC Machined Billet T6 Aluminum Heatsink Can;
- High Purity Copper Windings Maximizes Conductivity;
- High Power Solder Tabs;
- Removable/Replaceable Rotor;
- Powerful Sintered Neodymium Magnet ;
- Precision Engineered for Maximum Energy Conversion;

Specifications:

Item Name Ares 3983KV/8.5T/2P BL Motor for 1/10 Car
Sensored /Sensorless sensored No loading @7.2V Current 5.8A
Turns 8.5T Max current 33A
KV value 3983KV Resistance (Ω) 0.0141Ω
Poles 2P Battery range 2S
Diameter 35.9mm Operation Temperature /
Motor length 51.5mm Max Temperature 180°
Extend shaft diameter  3.17mm Suitable car scale 1/10
Length of extend shaft 13.6mm Suitable ESC 100A
Weight  163g Connector Type /
