• Tarot 5.8G 32CH Audio Video A/V Receiver Rx for FPV Multicopter FM/PLL TL300N3 L241 Helicopter

Tarot 5.8G 32CH Audio Video A/V Receiver Rx for FPV Multicopter FM/PLL TL300N3 L241 Helicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.11
  • Price in reward points: 241 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.63 $23.15 $22.42 $21.46 Contact US
Quantity:

Tarot 5.8G 32CH Audio Video A/V Receiver Rx for FPV Multicopter FM/PLL TL300N3 L241 Helicopter

Specification:
- Weight: 17.2 G (without antenna)
- Dimension: 55×32×13mm
- Working frequency: 5645-5945 MHZ
- Channel: 4 bands / 32 channels
- 5-DIP switch
- Receiving Sensitivity: -85 dbm
- Input Voltage: DC 7-26V (2-6S)
- Antenna Adaptor: SMA 50Ω
 Working Temperature: -10 ~ 60 degrees
- Frequency: FM/PLL
- AV output: 2.5mm 4 pins AV output
- Power input: 3.5mm (exterior) 1.3 mm (interior) DC

Note:
- Install the antenna before connecting the power to avoid further damage.
- Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
- Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
- The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
- The output voltage is 5V1A. Please confirm the current and voltage of the camera

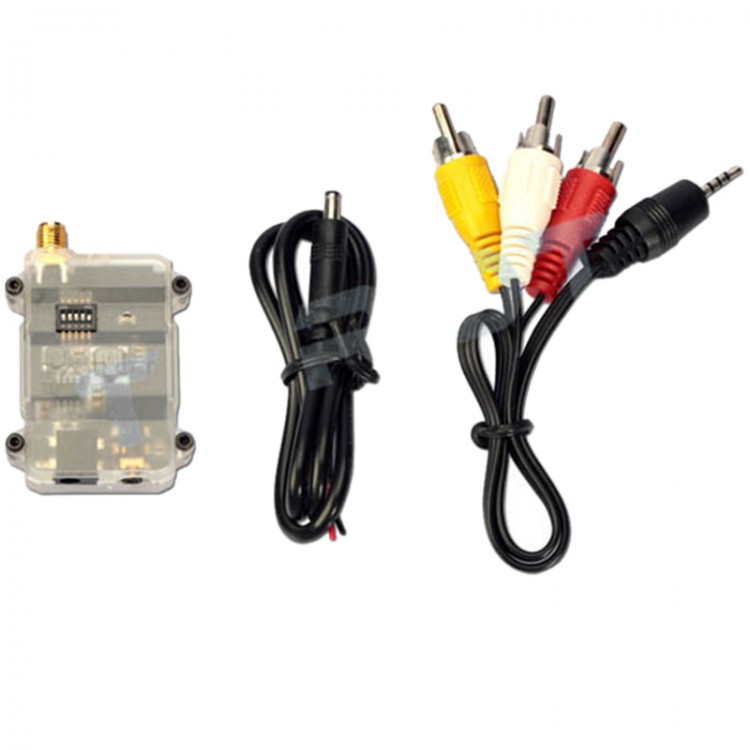

Pacakge included:
- 1× 5.8G receiver
- 1×3.5mm power cable
- 1× 2.5mm AV cable
- 1× User manual
