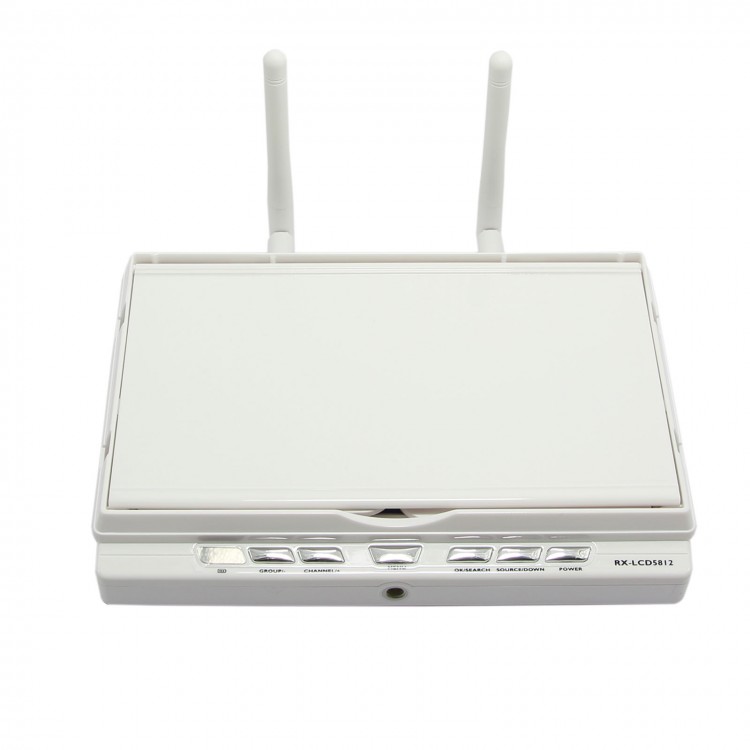

7 Inch RX-LCD5812 5.8GHz HD LCD Screen Diversity Receiver DVR Monitor 1024*600P for Multicopter FPV Photography White

Availability: In stock, usually dispatched in 1 business day

  • Price:$165.50
  • Price in reward points: 1655 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $162.19 $158.88 $153.92 $147.30 Contact US
Quantity:

7 Inch RX-LCD5812 5.8GHz HD LCD Screen Diversity Receiver DVR Monitor 1024*600P for Multicopter FPV Photography White

Description:

- 7 inch LCD
- Pixel: 1024*600
- LCM luminance: 500cd/m²
- 5.8GHz wireless receiver
- Receiving frequency: ISM 5.6GHz-5.9SGHz 32CH
- Receive mode: diversity receive
- Video output level:1V±0.2Vp-p/ 75ohm
- Audio output level: 0.5---2.0Vp-p/ 0Kohm
- TV system: PAL/ NTSC/ AUTO
- Wireless receiver sensitivity: <-98dBm (15dBuV)
- Antenna connector: SMA connector
- Lithium battery: 1900mA/ 7.4V (Removable)
- Working voltage: DC 7-25V
- Supply current:  <650mA/ 12V DC
- Automatic signal search:  support
- USB HOST: AV play, photo viewing, software, upgrades
- HDMI IN: 1080P (Max)
- AV file format: MPEG2. MPEG2 HD, MPEG4, MPEG4_SD, MPEG4_HD, H.264

Interface:
- AV OUT: 2.5*1 (RF A OUT/ RF BOUT and Diversity OUT)
- AV IN: 2.5*1
- HDMI IN: TYPE C*1(support Hot plug)
- USB: Micro USB x 1
- DC IN: OD/ ID: 3.5/ 1.2MM*1
- 5.8GHz ANT: SMA*2

Appearance:
- Size: 180*120*19.5mm
- Integrated sunshield: support removable
- Weight: 500g (with sunshield and battery)

Package includes:
- Monitor x 1(w/ integrated removable sunshield)
- AC adapter x 1
- Antenna x 2
- Power supply cable x 1
- AV cable x 2
- Cloth x 1
- English Manual x 1
