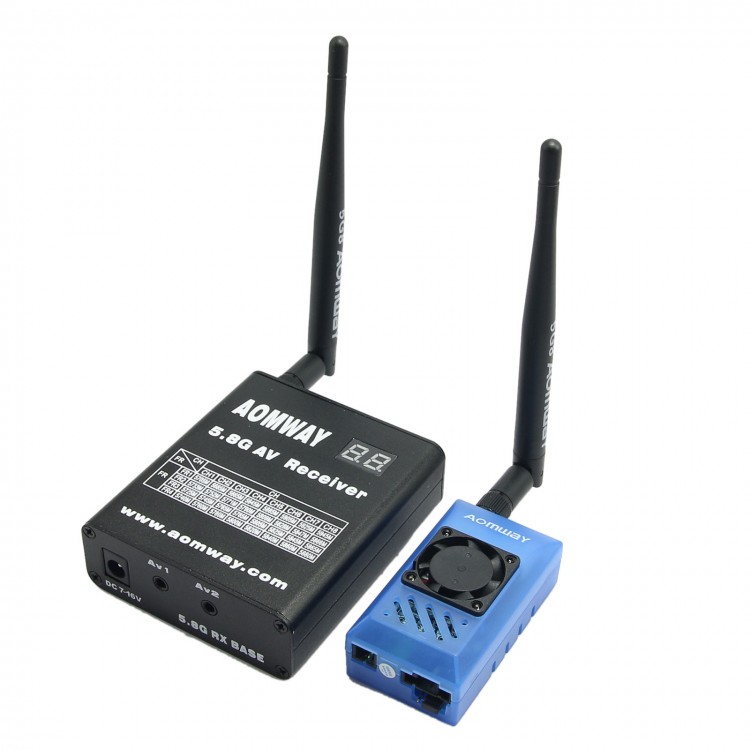

5.8G Aomway AV Receiver RX004 No DVR +Transmitter TX 1000mw for Multicopter FPV Photography

5.8G Aomway AV Receiver RX004 No DVR +Transmitter TX 1000mw for Multicopter FPV Photography

Improvements made on the original version:
- It will never be burn down if it is not with antenna or antenna is not tighten up
- Adopting high temp resistance, durable, half transparent material shell
- All large power transmitter is with customized 5db antenna (internal thread SMA

5.8G large power TX features:
- 5.8G wide FM AV simultenous transmission
- TX power: 1000mw 30.5db
- Built in two frequency to choose from:  5740-5860MHz / 5705-5925MHz
- 15 TX channel:  CH1-7+CH1-8
- With 5db omidirectional antenna
- Small size, 55*27*11mm
- Weight: 43g
- Stereo sound, left right channel is independently transmission
- PAL/ NTSC
- Input voltage wide range: DC 7-16V
- Size: 60*33*20mm














RX004 parameters:
- Working frequency range:
FR1 5705-5945MHZ    FR3 5725-5865MHZ
FR2 5733-5866MHZ   FR4 5740-5860MHZ
- DVR audio video recording, 720P D1 format
- Video compression format: MJPG
- Video output format: AVI
- Video output format: PAL(or NTSC)
- TF card storage: max support 64GB
- High sensitivity: -95%
- Input voltage: 7-25V (2-6S)
- Consumption: DC 12V   170mA
- Channel choose: 32CH, digital display
- Size: 80*70*25mm, aluminum case
- Weight: 126g (antenna not included)

Content of the package:
- 1 x 1000mW 5.8Ghz TX
- 1 x 5.8G RX004
