Teeny1S F3 Flight Control Board Integrated OSD Blheli_S ESC Teeny 1S 6A for FPV Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.49
  • Price in reward points: 265 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.96 $25.43 $24.64 $23.58 Contact US
Quantity:

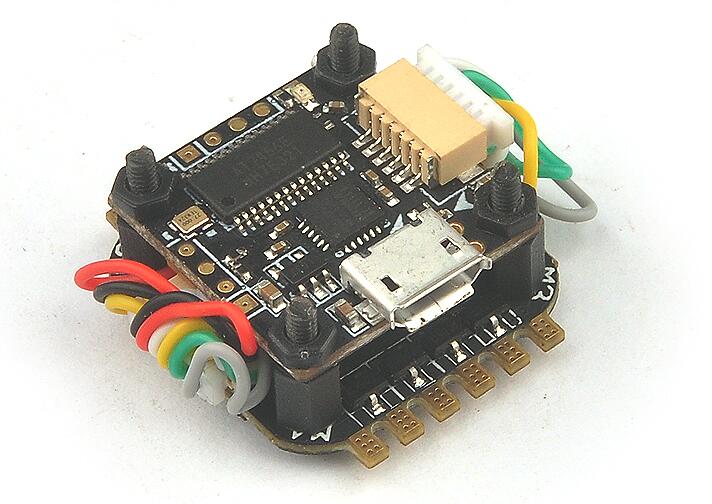

Teeny1S F3 Flight Control Board Integrated OSD Blheli_S ESC Teeny 1S 6A for FPV Quadcopter

Product Description:
- Flight Control Board Teeny1S F3 Integrated Betaflight OSD 1S power+ ESC Teeny1S Four in One Blheli_S 6A ESC
- Mini Omnibus F3 flight control,integrated Betaflight OSD with MPU6000 ,support DSHOT,Oneshot,16mmx16mm BLHELI_S Four in One ESC

Specification:

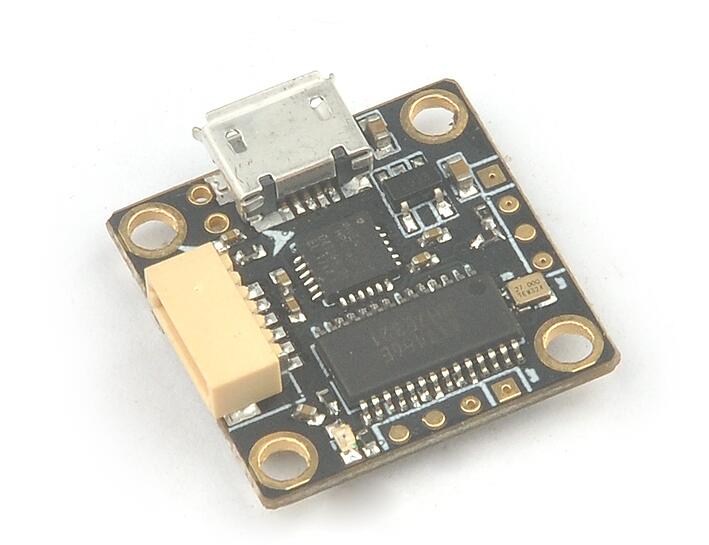

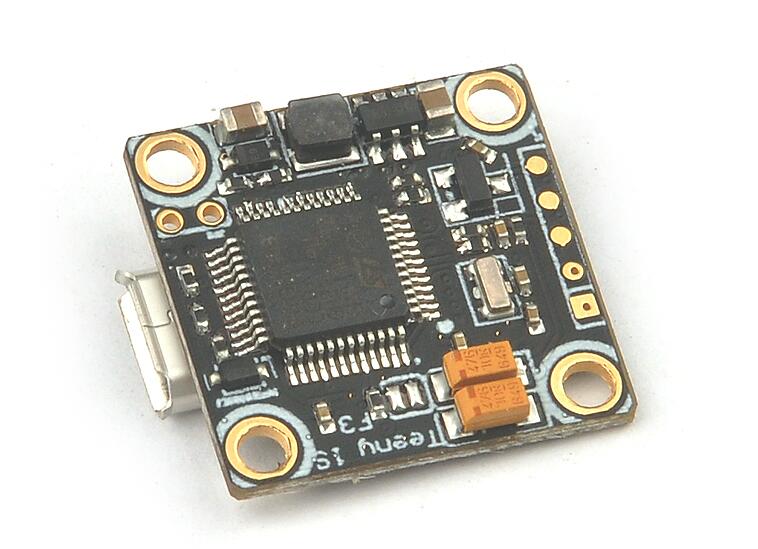

- Flight controller
- Item name: Teeny1s F3 flight controller board
- Size: 20*20mm
- Mounting hole: 16*16mm
- Diameter: 2mm
- Weight: 2.0g
- Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.7_OMNIBUS
- Built-in SESC: 5V/0.5A
- Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
- Power supply: 1S lipo battery (3.3V-4.35V)
- Suitable for 60mm-80mm mini brushless FPV Quadcopter frame

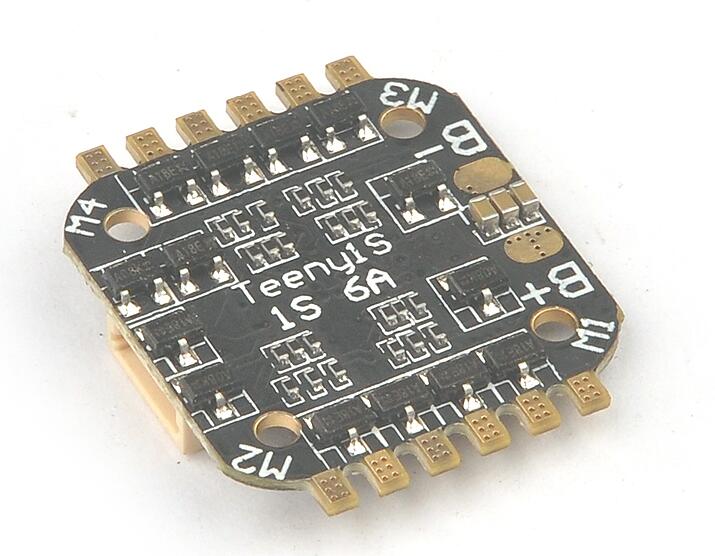

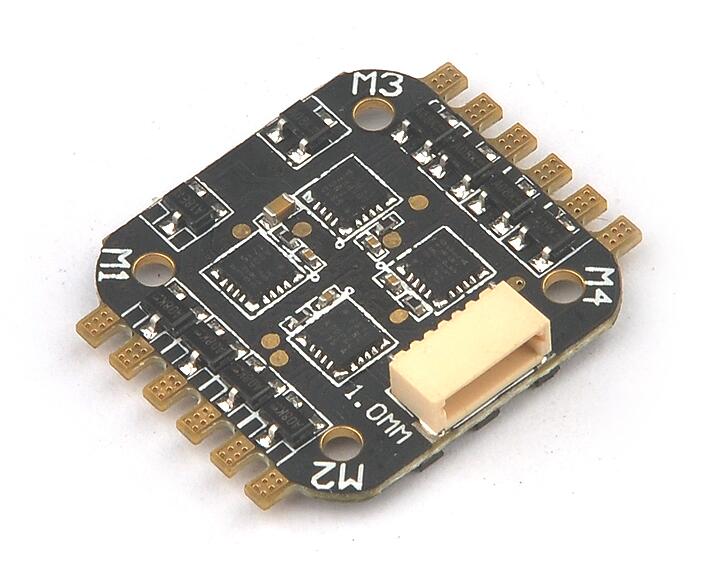

- ESC
- Item name: Teeny1s 4 In 1 6A BLHeli_S ESC
- Size: 23x28mm (includes solder pad)
- Mounting holes: 16x16mm, φ2mm
- Weight: 2g
- Input voltage: 1S lipo or 1S HV-LIPO
- Con. Current: 6A
- Peak Current: 7A (5S)
- Firmware: BLHELI_S
- Processor: SILABS EFM8BB10F8G
- BEC: NO
- Driver: 3 in 1 MOS
- Supports Dshot150 Dshot300 Dshot600 Oneshot125 Multishot PWM

Features:
- Support programmable LED_Strip
- Support BLheli/BLHELI_S suite Pass-through ready
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Default Dshot600 ready
- Built-in voltage detection, alarm
- Built-in Betaflight-OSD
- Buzzer solder pin
- LED_STRIP solder pin

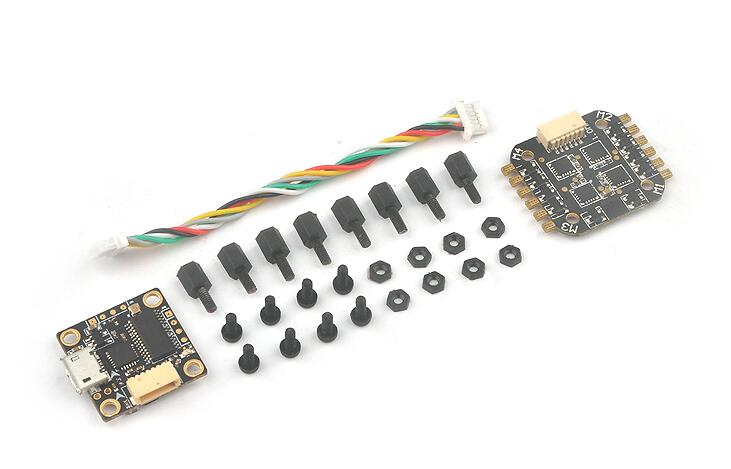

Package included:
- 1 x Teeny1S F3 flight control board
- 1 x Teeny1S 6A 4in1 ESC
- 8 x M2*5+5 Nylon column
- 8 x M2 Nuts
- 8 x M2 Screw
