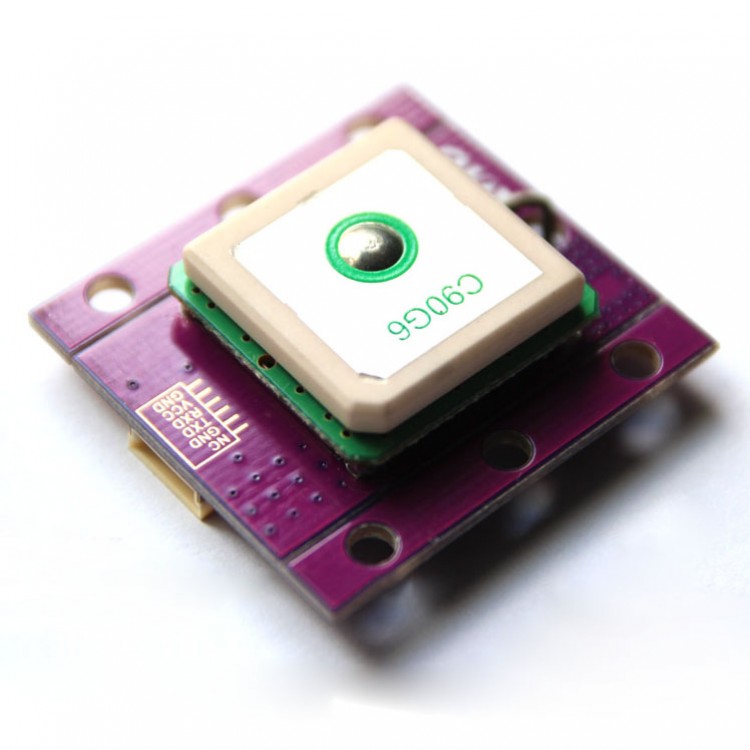

Ublox NEO-6M GPS APM2.5 Pirate Flight Control SupportablePermanently Save the Configuration

Product Features
- Integrated eepROM chip, can permanently save the configuration, interface, 1.0 pitch terminal directly compatible APM2 APM2.5
- Built-in active antenna, the effect is visible, relatively passive antenna Star Search faster, more accurate positioning
- The default output statement 38400 UBX statement compatible with the pirates APM2 can automatically identify
- U-center software can use the configuration output statements and baud rate can be kept permanently, relative to other no integrated eepROM module gps more convenient.
- Aircraft wing design, become fixed hole side snapping. The volume can be smaller, suitable for a variety of installation environments

Description
- The UBLOX NEO-6M gps, APM2.5 pirate available permanently save the configuration Integrated eepROM chip, can permanently save the configuration, interface, 1.0 pitch terminal directly compatible APM2 APM2.5 Built-in active antenna, the effect is visible, relatively passive antenna Star Search faster, more accurate positioning
- The default output statement 38400 UBX statement compatible with the pirates APM2 can automatically identify U-center software can use the configuration output statements and baud rate can be kept permanently, relative to other no integrated eepROM module gps more convenient. Aircraft wing design, become fixed hole side snapping. The volume can be smaller, suitable for a variety of installation environments
- The full size 33.3MM X 35.2MM X 10MM
- Removing bilateral fixing hole size 22.5MM X 35.2MM X 10MM
- NEO-6M-0-000 U-BLOX small volume module 16.0 * 12.2mm * 2.4mm 50-channel u-blox engine, over 1 million effective correlators Less than 1 second hot start and assisted start TTFF
- -162dBm the the SuperSense capture and tracking sensitivity With KickStart function, weak model can achieve accelerated start
- A-GPS services GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine Rate of 5Hz positioning update Accuracy Positioning 2.5MCEP SBAS 2.0mCEP
- Capture the cold start 29s Warm start 27s Auxiliary start <3s Hot start <1s
- Sensitivity Capture-162dBm Tracking-147dBm -146dBm cold start Multipath rejection Intelligent multipath detection and suppression A-GPS
- Operating restrictions Speed of 515m / s (1000 section) Serial port a UART interface A USB V2.0, full speed 12Mbit / s A DDC interface An SPI interface Serial and I / O voltage of 3V level Protocol NMEA, UBX binary Digital I / O interface can be configured pulse The one EXTINT input interface Voltage 2.7V - 3.6V Power consumption <80mW@1.8V 120mW@3.0V
