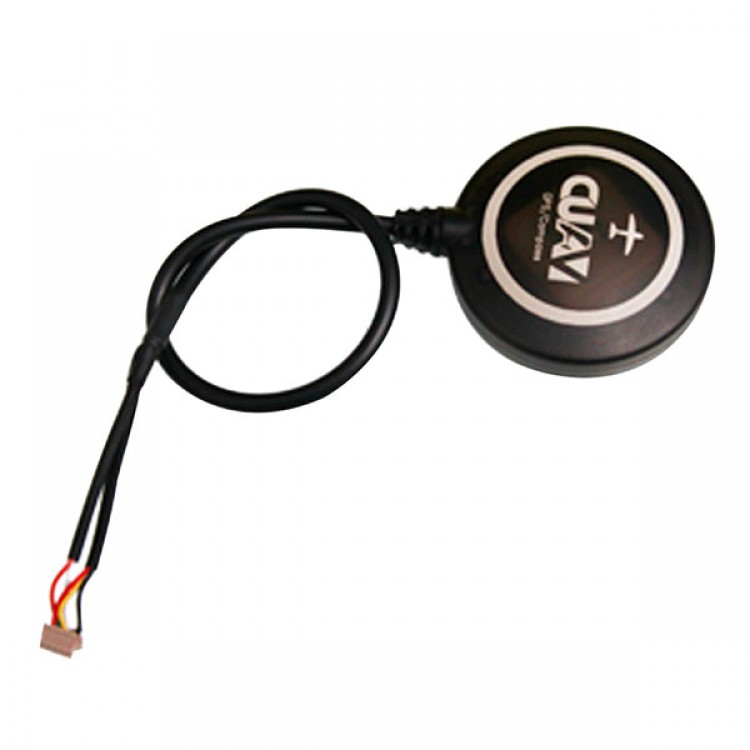

• Pix UBLOX NEO-6M Built in Electronic Compass Flight Control High Precision GPS for FPV Photography

Pix UBLOX NEO-6M Built in Electronic Compass Flight Control High Precision GPS for FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.45
  • Price in reward points: 375 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.70 $35.95 $34.83 $33.33 Contact US
Quantity:

Pix UBLOX NEO-6M Built in Electronic Compass Flight Control High Precision GPS for FPV Photography

Description:

- The data cable interface of PIX and APM version is different, please choose the right flight control version
- This GPS is DF13 terminal interface, it should use DF13 plastic case if you need to change plastic case
- Built in electronic compass version can use at APM 2.5/2.6, compatible with PIX flight control
- 2.5 version needs cutting up electronic compass jump wire
- UBLOX NEO-6M/ LEA-6H GPS, APM2.5 Pirate MWC is available, can store configuration permanently
- Default output sentence is 38400 UBX
- NEO-6M and LEA-6H max precision is 2.5m
- The price differences between 6M and 6H is very large, because 6H is multicore digifax isolation scheme, sensitivity and searching speed is better than 6M

GPS cable definition:
- Red vcc  black gnd
- Green RX   yellow TX

Compass cable definition:
- Orange SCL   white SDA

Description:
- NEO-6M-0-000 U-BLOX, small volume module, 16.0*12.2mm*2.4mm
- 50 Channel u-box machine, 1 million available correlator
- Hot start and auxiliary start first positioning time is less than 1sec
- 162dBm SuperSense catching and tracking sensitivity
- Has KickStart function, can realize accelerating start when signal is weak
- Support service like AssistNow Online and AssistNow Offline A-GPS
- GPS、GALILEO、SBAS(WAAS、EGNOS、MSAS、GAGAN)hybrid engine
- 5Hz positioning update speed rate

Precision:
- Positioning 2.5MCEP
- SBAS 2.0mCEP
- Acquisition cold start 29s
- Warm start 27s
- Auxiliary startup <3S
- Hot start <1s

Sensitivity:
- Acquisition:  -162dBm
- Track: -147dBm
- Cold start: -146dBm
- Multipath suppression
- Intelligent multipath detection and suppression
- A-GPS
- Support AssistNow Online and AssistNow Offline
- Limited operation
- Speed: 515m/s (1000section)
- Serial: 1 UART interface
- One USB V2.0, full speed 12Mbit/s
- One DDC interface
- One SPI interface
- Serial and I/O voltage 3V level
- Agreement NMEA, UBX binary system
- Digital I/ O interface, time pulse can be configured
- One EXTINT input interface
- Voltage: 2.7V--3.6V
- Consumption: <80mW @ 1.8V
- 120mW @ 3.0V
- Back up power supply: 1.3V -4.8V, 30uA
- Antenna type: active and passive
- Operation temp: -40----85degree
