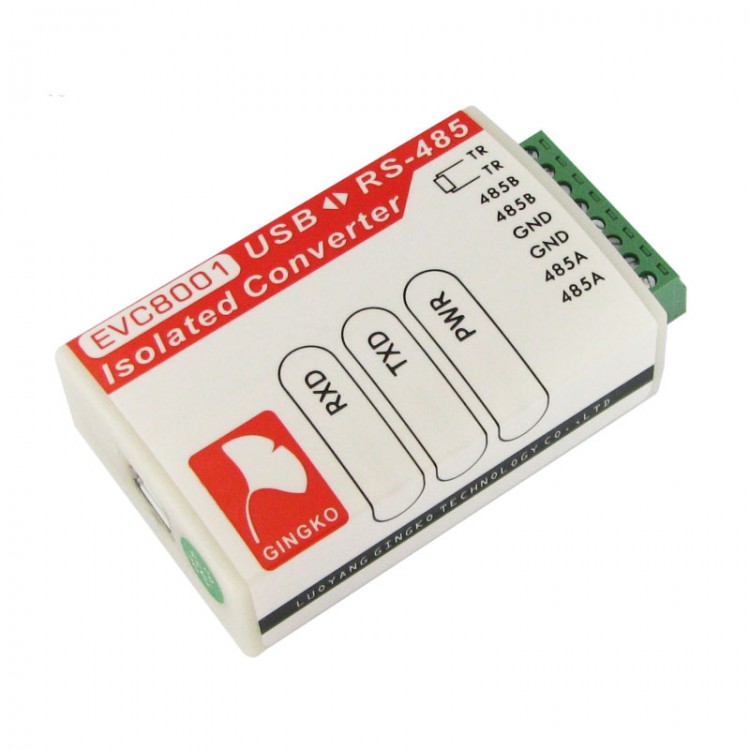

USB 485 RS485 Isolation Converter Antimine Lightening Protection Industrial FT232 EVC8001
Description:
- know come in , di . with tools picture of a use , probabilit , assured . buy products can't only watch price , depends on the total cost ( contains maintenance cost , timecost , even loss count en- ) . the teamsheet preferential in , everyone please do not miss .
- evc8001 is xiaomagee team built boutique usb turn grade rs-485 isolation converter , used all the best plan , every detail are done optimization , maximite . numouse : bright spot
- adopt the best of mouth usb to serial chip ft232rl , perfect support the most operating system ( do not ask system support problem , dare to say you use will certainly support ) .
- rs-485 interface tertiary treatment ( lightning protection switch-tube , tvs protection , filter network ) , super protection
- built-in high power termination resistors direct through configurable interface , 802 convenient .
- all all , is to let people with a rest assured tools , help to everybody , research and development installation , debuging , leg quality inferior products , kingmen find you troubling and , buy cheap ique , but the use of don't cheap , just imagine a day everyone time , timecost need number , to mention the indirect equipment and progress of the loss . we must keep cool head . miss the chance won't come again , wasted time not return .
Parameters:
- Baud rate: 300-460800bps
- Isolation plan: adopting ADI magnetic coupling isolation plan
- Output interface: half duplex RS-485, built in terminal resistance
- Isolation voltage: 2500Vrms (Adopting 300V isolation voltage power module)
- Interface plan: super stable FT232RL chip
- Loading performance: RS-485 can mount 256 panel points
- Output protection: lightening protection +TVS protection + filter network
- Powers supply range: 4.75-5.25V, about 75mA
- Working indication: power supply, sending, receiving indication
- Operation system: support Windows, Linux, MAC
- Working temperature: -40----85 industrial
- Size: 70*45*24mm
