Description:
PLC Gateway D225 is a converter for converting the data protocol for Mitsubishi PLC into protocol for Modbus TCP RTU. The D225 can store the I/O data of the PLC to the gateway through the RS-232 or RS-485 serial port for Mitsubishi PLC. The gateway transmits the data to the cloud platform through the protocol for Modbus, and also allows your software to pass through the local area network anywhere. Or Internet access to serial port devices.

Features:
1. Built-in industrial grade core for ARM Cortex, high performance, low power consumption, stable and reliable.
2. Converting the data protocol for Mitsubishi PLC into protocol for  Modbus TCP, then connect to cloud. Support 1 channel RS-232, 1 channel RS-485 and 1channel TTL.
3. Support 1 channel RJ45 Ethernet port
4. Support RESET button to restore factory function (long press for 3 seconds to recover) to prevent parameter setting error.
5. Using metal shell material, protection grade IP30, metal shell and system safety isolation, especially suitable for industrial control applications.
6. Using configuration software to set device parameters, support for WIN XP, WIN 7, WIN 8 and WIN 10, friendly interface.
7. Support static IP address or DHCP to obtain IP address automatically, and query the devices in the network through UDP broadcast protocol.
8. Support local HMI touch screen and remote simultaneous access to PLC for data acquisition and monitoring.
9. Support server domain name resolution. Support firmware upgrade through TTL, firmware update is more convenient.

Advantages:
- PLC data acquisition protocol conversion gateway
- Support for Mitsubishi PLC, Siemens PLC protocol conversion into protocol for Modbus TCP
- Convert RS485, RS232, TTL to Ethernet
- Support PLC upload cloud platform
- Support TPC client/server
- Industrial design
- Software hardware watchdog
- Support domain name resolution
- Support dynamic/static IP
- Custom registration package, heartbeat package
- Support virtual serial port: TCP/IP connection, UDP broadcast can be mapped to the virtual serial port of the machine, and the application program can complete remote control, data transmission and other functions by accessing the virtual serial port
- Docking with cloud platform can customize registration treasure and heartbeat package

Serial Parameters (Mainly for connection to PLC):
- Serial port selection: select and display current serial port channel, including: RS232 and RS485 (default RS232)
- Baud rate: Choose from 4800, 9600, 14400, 5600, 57600, 19200, 38400, 115200, 128000 (Default 9600).
- Data bit: select from 5Bit, 6Bit, 7Bit and 8Bit(Default 7Bit).
- Check Digit: Choose from NONE, EVEN, ODD (default EVEN).
- Stop bit: select from 1Bit, 1.5Bit, 2Bit (default 1Bit).

Ethernet Parameters (Set IP and port of the host):
- IP Mode: Select the mode of obtaining IP.
* Dynamic: Obtain IP address automatically from DHCP server (default is dynamic)
* Static: Manually configure a static IP address for the device
- IP address: device IP address
- Port number: The port number when the device is used as a TCP/UDP server, which can be customized and modified. The range is 0-65536 (default 502).
- Subnet mask: current subnet mask
- Gateway: current gateway address
- DNS server: the current DNS serve

Server Parameters:
- IP/Domain Name: The IP or domain name of the target server. The factory default value is the domain name of KING PIGEON V3.0 cloud platform. (Default modbus rtu.kp rtu.com)
- Port number: The port number of the target server (4000 by default).
- Heartbeat interval: the interval time between sending heartbeat packets, ranging from 1-999 (seconds) (default 10).
- Registration package: the registration data sent to the server (empty by default).
- Registration response package: The server receives the response data returned by the registration package (empty by default).
- Offline package: The server sends the content to the device, and the device will be offline (empty by default).
- Heartbeat packet: data sent by the device to the server (empty by default).
- Heartbeat response packet: The device receives the heartbeat response data sent by the server (empty by default).

Application Scenarios:
- Industrial Automation: PLC-D255-Switch-DCS system
- Wind power discharge detection: PLC-D255-switch-wind power generation control system
- Non-standard equipment: PLC-D255-switch-control system

LED Indicators:
- Power: Red. When it is always on, it means that external power supply works normally. When it is off, external power supply cut off.
- Ethernet: Red. When it is always on, it means that TCP connection is enabled. When it is off, there is no TCP connection.
- RS485/RS232: Red. When it flashes, there is data transmission in serial port. When it is off, there is no data transmission.

Product Specifications:
Power Supply:
- Working Voltage: 9～36 V DC
- Power Consumption: Normal: 100mA at 12V, Max.: 120mA at 12V
- Power Supply Protection: Anti-reverse connection, ESD air: 15KV, surge: 4KV

Ethernet Port：
- Specifications: 1 x RJ45, 10Mbps
- Protection: ESD contact: 8KV, surge: 4KV (10/1000us)

Serial Port:
- Number of serial ports: 1 x RS232, 1 x RS485, 1 x TTL
- Serial port baud rate: 4800bps-128000bps
- Data bit: 5, 6, 7, 8, 9
- Parity: None, Even, Odd
- Stop bit: 1, 1.5, 2
- Protection: ESD contact: 8KV surge: 4KV (8/20us)

Software Parameters:
- Network Protocol: For IPV4, TCP/UDP, DHCP, DNS, Modbus RTU, Modbus TCP
- IP acquisition method: Static IP/DHCP
- DNS: Support
- User configuration: Web configuration, support for WIN XP, WIN 7, WIN 8, WIN 10
- Network cache: Send: 8Kbyte; Receive: 8K byte.
- Registration package: Support registration packages customize
- Heartbeat package: Support heartbeat packages customize

Certificate:
- MTBF: ≥100,000hrs
- EMC:
* EN 55022: 2006/A1: 2007 (CE & RE) Class B
* IEC 61000-4-2 (ESD) Level 4
* IEC 61000-4-3 (RS) Level 4
* IEC 61000-4-4 (EFT) Level 4
* IEC 61000-4-5 (Surge)Level 3
* IEC 61000-4-6 (CS)Level 4
* IEC 61000-4-8 (M/S) Level 4
- Others: CE, FCC, ROHS, 3C

Environment:
- Working temperature & humidity: -45 to 85℃/113℉ to 185℉, 5～95% RH
- Storage temperature & humidity: -45 to 105℃/113℉ to 221℉, 5～95% RH

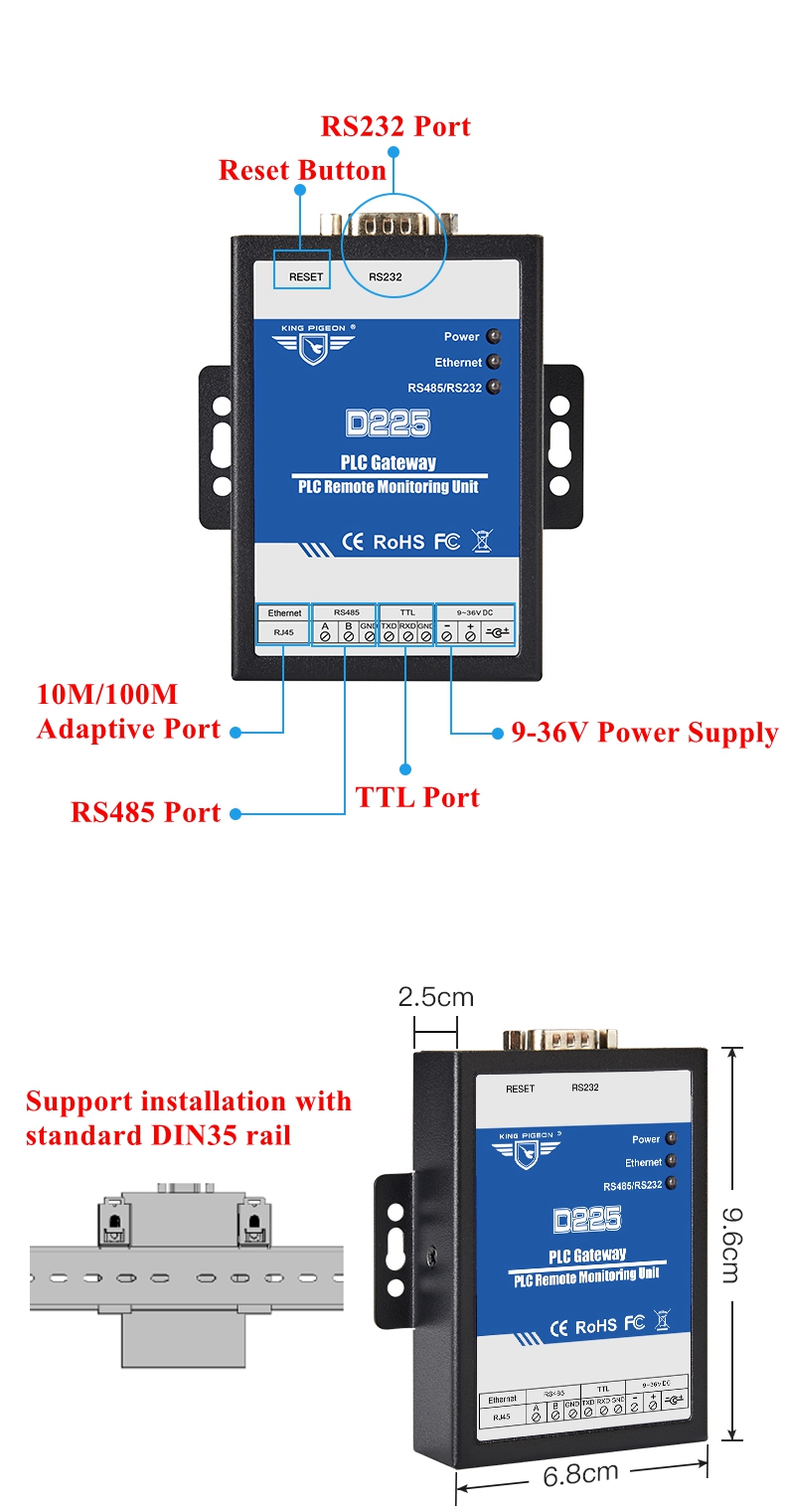

Others:
- Housing: Metal
- Size: 9.6 x 6.8 x 2.5cm/3.8 x 2.7 x 1 inch (L*W*H)
- IP level: IP30
- N.W.: 260g/0.6LB
- Installation: Wall-mounted, rail-mounted

Package Included:
- 1 x Set of PLC Gateway
