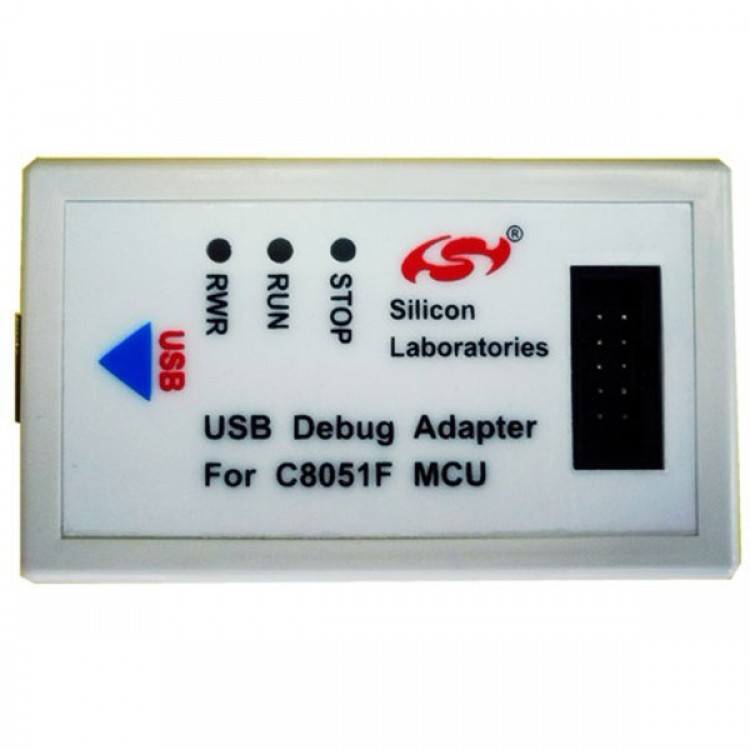

USB Debug Adapter for C8051F MCU U-EC3 U-EC5 U-EC6 Emulator Downloader


Features

- USB Debug Adapter for C8051F (Enhanced 51) USB microcontroller debugger.
- The MCU can be used for simulation, debugging, downloads, encryption and so on. Support the full range of C8051F MCU.
- Housing cost is very beautiful with white ABS plastic shell quality
- Be compatible with the IDE is Keil, SilabsIDE, IAR
- Enable single-step, continuous single-step, breakpoint, and stop / run, registers and memory to support and modify.
- And Silabs the USB Debug Adapter and EC3/EC5 debugger compatible.
- Support for JTAG and C2 mode, debugging, support up to 4 breakpoints.
- Firmware upgradeable, WinME above systems free driver, plug and play.
- USB-A female interface, with USB-A high-quality extension cords.
- Small size, exquisite workmanship,
- When using the C2 interface, you can only use the 2 lines (C2CK, C2D), is very convenient.
- Buffer circuit with output drivers, with the ESD protection devices, protection of powerful debugger, very stable.
- Output 5V/500mA current. Can be used to power the target. Support 5V microcontroller debugging.
- EC6 backward compatible EC5, EC3, better performance, faster.

Pinout

1

NC

2

GND

3

GND

4

TCK/C2D

5

TMS

6

TDO

7

TDI/C2CK

8

+3.3V/800mA

9

GND

10

+5V/500mA
