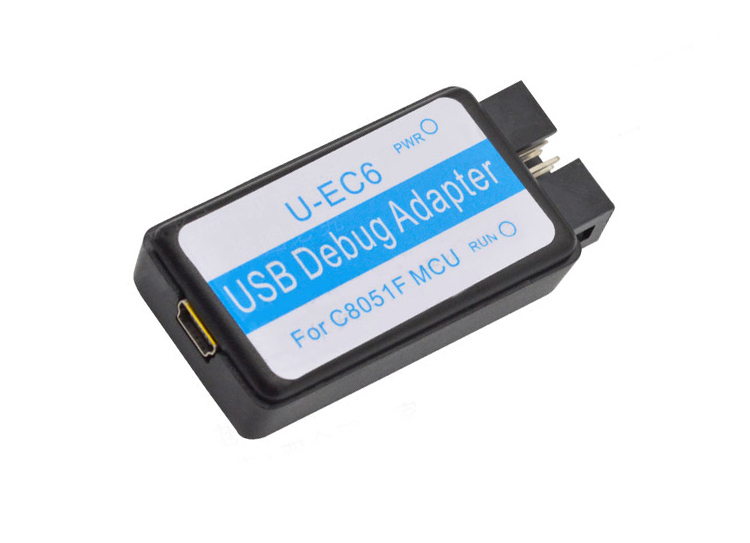

U-EC6 USB Emulator Debugger USB Debug Adapter JTAG/C2 Download Cable for C8051F MUC
Description:
- U-EC6 emulator, USB debug adapter
- Support program download and online simulation
- With USB2.0 interface, driver-free installation, and hardware-enhanced protection functions (Reduce the rate of hardware damage caused by improper use)
- Product size: approx. 49 x 27 x 14mm/1.9 x 1.1 x 0.6". Featuring a PVC waterproof face sticker, it looks sophisticated and generous
- All products are made of machine patch and mass production, ensuring the stable working performance of the product and ensuring the quality
- Support for WIN XP, WIN7, WIN8, and WIN10
Supported Software:
It can be seamlessly connected and debugged with various official software (for KEIL and SILABS), such as for SILICON LABORATORIES IDE, FLASH UTILITY PROGRAMMER, PRODUCT PROGRAMMER, and IAR EMBEDDED WORKBENCH FOR MCS-51.
Supported Devices:
1. Support full series C8051F MCU:

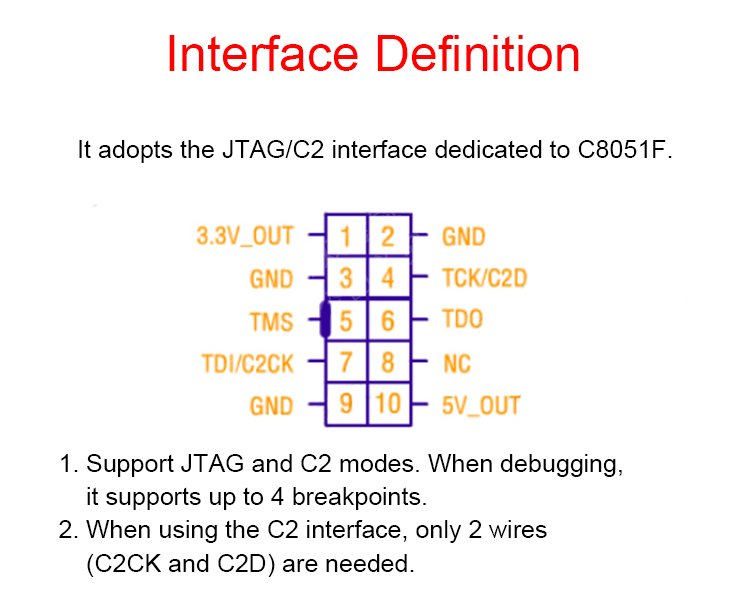

- JTAG interfaces: C8051F00X, C8051F01X, C8051F02X, C8051F04X, C8051F06X, C8051F12X and C8051F2XX
- C2 interfaces: C8051F3XX, C8051F41X, C8051F5XX, C8051F7XX, C8051F8XX, and C8051F9XX
2. With automatic firmware upgrade function: this emulator can realize the simulation of a full range of C8051F chips, as well as the subsequent production of C8051F MCU series products
Functions/Performance:
1. Multiple circuit protection: The emulator has ESD protection circuit and 500MA resettable fuse, which can effectively protect your computer USB power supply module and prevent the computer motherboard chip from burning.
2. Double buffer chip: The double buffer chip inside this emulator can prevent direct damage to the main chip. Our chips use the new original chip for NXP to ensure quality.
3. Dual power supply strong output: This emulator supports dual power output, which can output 5V/500MA and 3.3V/500MA, directly power the target board, and greatly facilitates development.
4. Equipped with high-quality USB cable: The USB cable is designed with a magnetic ring, about 1.5m/4.9ft long, and a wire diameter of 5mm/0.2".
Package Included:
- 1 x USB Debug Adapter
- 1 x USB Cable
- 1 x 10Pin JTAG Cable
