XAircraft FC1212V2 Flight Control Kit AHRS-S V2 Sensor+AutoPilot Pilot Flight Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$299.90
  • Price in reward points: 2999 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $293.90 $287.90 $278.91 $266.91 Contact US

XAircraft FC1212V2 Flight Control Kit AHRS-S V2 Sensor+AutoPilot Pilot Flight Control
- XAircraft FC1212-P is a newly designed flight controller. Its literal meaning is Professional Flight Controller with 12In/12Out, which means it is a professional flight controller with 12 inputs and 12 outputs. FC1212-P itself does not have any Attitude sensors, it could really control attitude of the aircraft under condition of cooperation of AHRS module, such as self-ballancing, etc.

- XAircraft AHRS-S V2 is second generation product of AHRS-S. AHRS is abbreviation of Attitude and Heading Reference System, which means attitude and Heading Reference System. It can carry out calculation of Attitude and Heading. FC(flight controller) works according to Attitude and Heading Reference provided by AHRS to finish flight posture, self-balancing. It is the basis of all other flight control, the FC must be equipped with the AHRS.

FC1212-P Input Feature:
- Input1-Input5 is normal receiver input, can doing basic flight and flight module switching.
- Input6-Input8 is assist function of turn on channel,can turn on or turn off Compass and Autopilot function, for Example Carefree , Go home and so on.
- Input9 is the channel of control camera mount pitching for doing control camera pitching.
- Input10 is the channel of control camera mount shuttle, it can control the shuttle of camera to do the focus and shoot movement.
- Input10 can support Futaba S.Bus agreement, save more connection link, can be more Succint.
- Input12 support Power Monitor electric system, can get data of battery Voltage and can warming when some part works strange.

FC1212-P Output Feature
- Support 2-8 axis copter craft.
- Output1-Output8 can configure to output for the servo or ESC like the Tricopter need three Motors and one servo of the stern, you can configure Output1-Output3 for ESC Output,Output4 for servo output .
- Output9 for camera mount pitching servo output, use for control camera pitching and self-poise.
- Output10 for camera mount roll servo output, use for control camera rolling and self-poise.
- Output11 for camera shuttle servo output, use for camera focus and shoot movement.
- Output12 for Pilot lamp Output, Pilot lamp will flashing light based on the signal attitude and buzzer siren

FC1212-P Port Feature
- Link Port, use for connect to PC software to upgrade firmware, when PC connect to software, The Green light of FC1212 will star flashing.
- Port A- PortE , those five ports use for connect subordinate module of FC1212, for Example AHRS, Autopilot ,OSD and so on.Those five ports like The USB port in PC, you can connect AHRS to any ports in those five ports. when module connection the light will lighten.

FC1212-P Compatible Modules:
- AHRS-S V2 and AHRS-P
- USB Link
- Autopilot
- Power Monitor
- Pilot Lamp

New Feature Brought by Compass:
- Carefree function: in Carefree mode, there is no need to worry about the direction of the head for operators to control the aircraft.
- Heading Lock function. When rudder (rotation, Yaw,) was released, the aircraft will automatically revert back to the original course.
- FC performed the GPS fixed-point, auto-return function also require Compass to provide heading data.

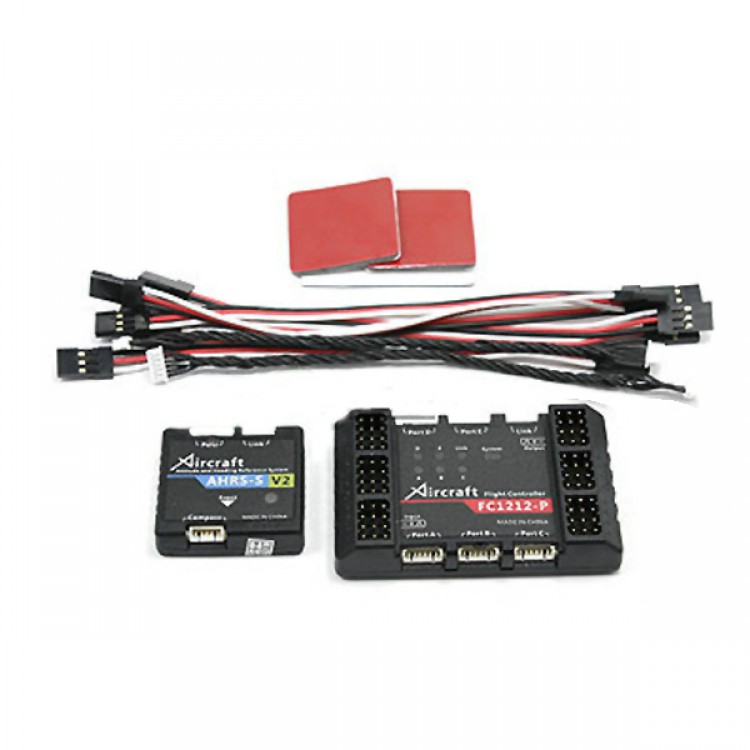

Package Includes:
- 1x FC1212-P Flight Controller (weight: 25g)
- 1x AHRS-S V2 Attitude Sensors (Weight: 8.4g)
- Necessary wires,double sided sapes
