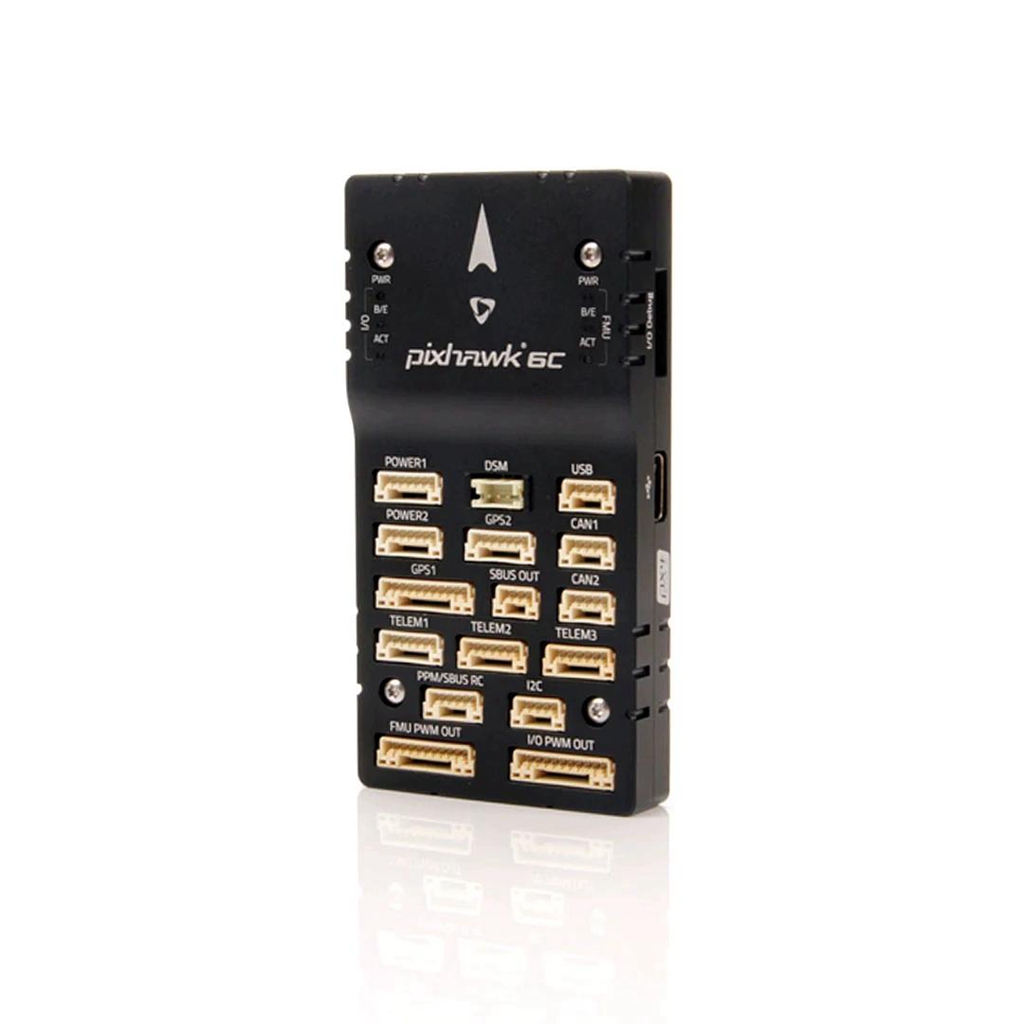

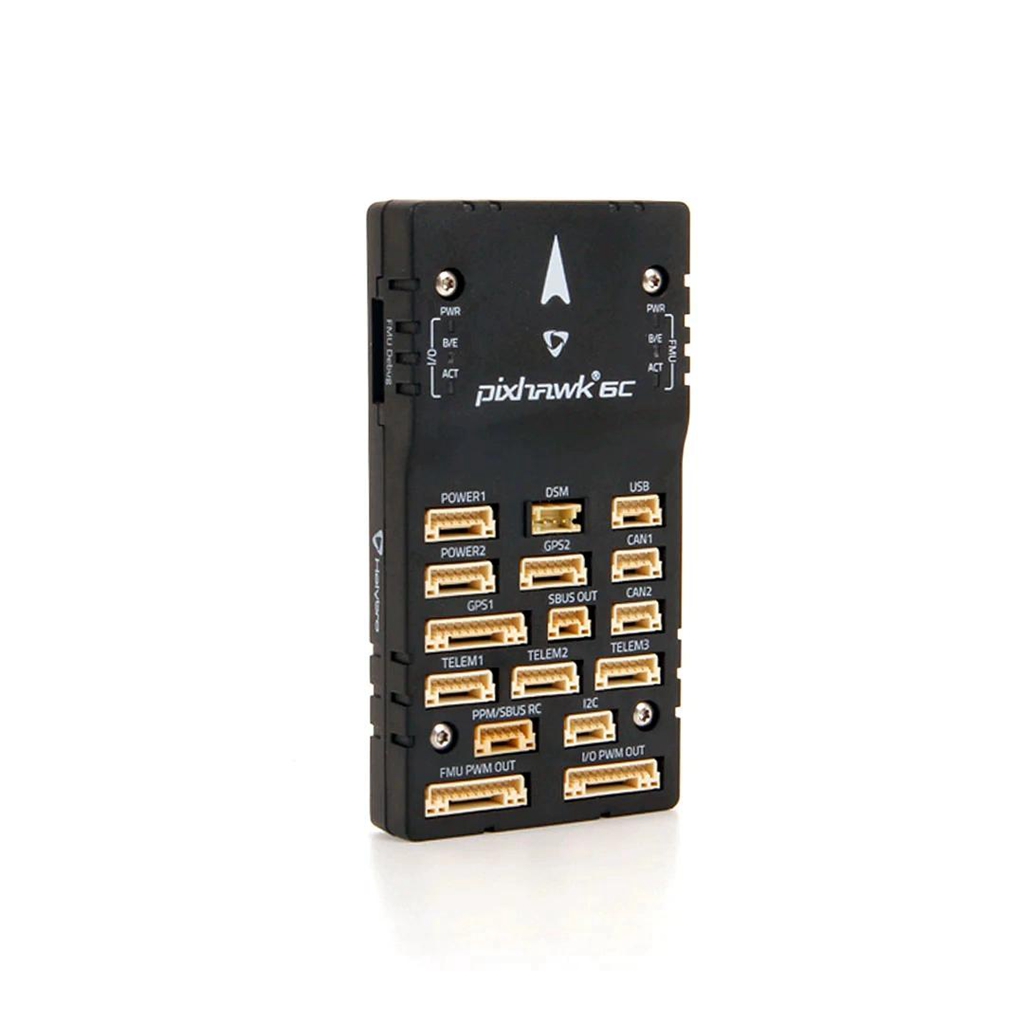

Holybro Pixhawk 6C Flight Controller (Metal Shell) + PM02 12S Power Module + M10GPS (20230) Module for Racing Drones

Holybro Pixhawk 6C Flight Controller (Metal Shell) + PM02 12S Power Module + M10GPS (20230) Module for Racing Drones

Description:
- The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. Inside the Pixhawk® 6C, you can find an STM32H743, paired with sensor technology for Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

- The Pixhawk® 6C's H7 microcontroller contain the core for Arm® Cortex®-M7 running up to 480MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Features:
- High performance H7 Processor with clock speed up to 480MHz.
- New cost-effective design with low-profile form factor.
- Redundant inertial measurement unit (IMU) for Bosch® & InvenSense®.
- Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings.
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.

Specification:
Processors & Sensors:
- FMU processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
- IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors:
  Accel/Gyro: ICM-42688-P
  Accel/Gyro: BMI055
  Mag: IST8310
  Barometer: MS5611

Electrical Data:
- Voltage ratings:
  Max input voltage: 6V
  USB power input: 4.75 ~ 5.25V
  Servo rail input: 0 ~ 36V
- Current ratings:
  Telem1 Max output current limiter: 1.5A
  All other port combined output current limiter: 1.5A

Mechanical Data:

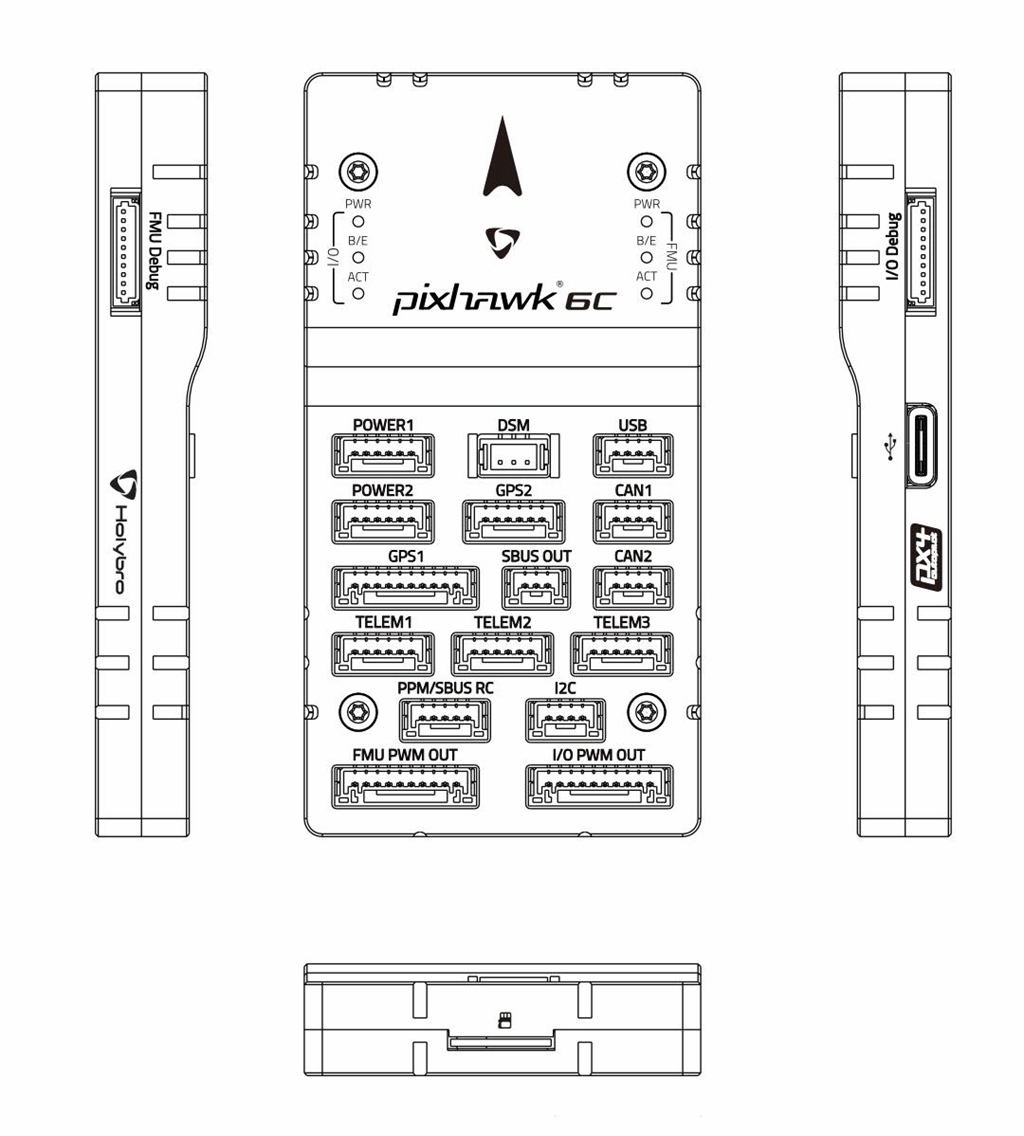

- Dimensions: 84.8 x 44 x 12.4 mm
- Weight (Aluminum Case): 59.3g
- Weight (Plastic Case): 34.6g

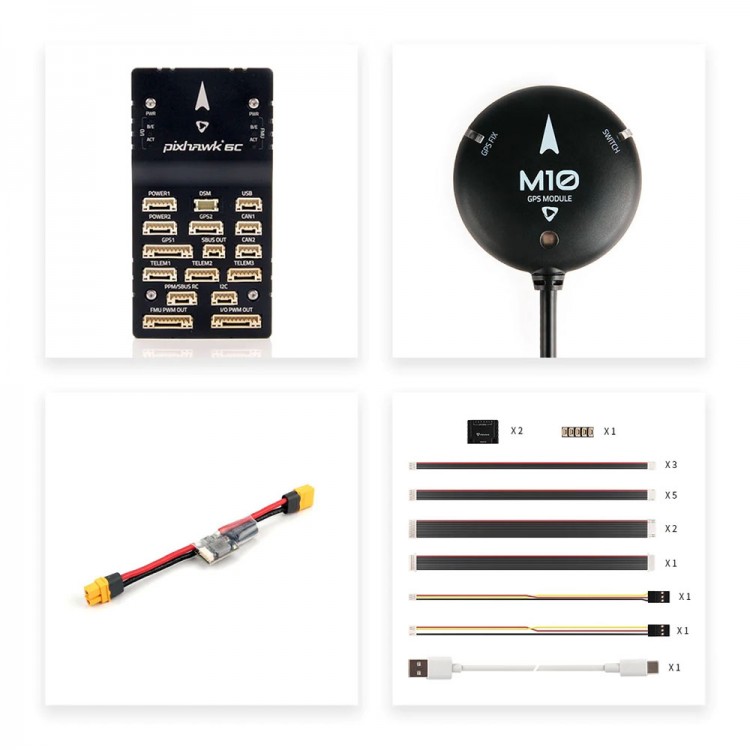

Package Included:
- 1 x Flight Controller
- 1 x PM02 12S Power Module
- 1 x M10GPS (20230) Module
