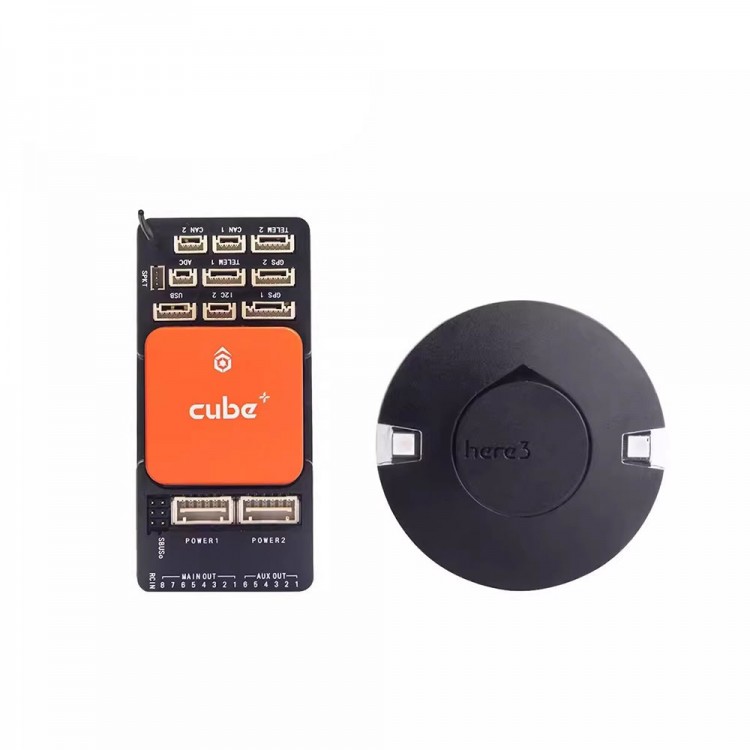

Pixhawk Opensource Cube Orange+ Flight Control with HERE3+ GPS Module STM32H757 Dual Core M7+M4 for Fixed Wing Multi- rotor

Pixhawk Opensource Cube Orange+ Flight Control with HERE3+ GPS Module STM32H757 Dual Core M7+M4 for Fixed Wing Multi- rotor

Note:
- The Cube Orange Set+ flight controller currently does not support for PX4 firmware and old firmware for APM due to its relatively new chip. V4.2.3 or higher firmware for APM can be used.

Description:
- Equipped with Cortex M7 dual precision floating-point unit operation, upgraded memory to 1MB, and a maximum clock frequency of 400MHz. Dual processors not only provide stronger processing performance, extremely fast data processing, and stable solutions, but also have more development space and security guarantees.
- ARM Cortex M7 +M4: STM32H757, M7 DP-FPU + M4 SP-FPU, Flash 2 MB RAM 1 MB
- Supports switching between 3.3V and 5V signal outputs for PWM interfaces, allowing for direct dual voltage switching of the PWM interface through software and adapting to a wider range of external devices.
- The real-time triple redundant IMU system of programmable controller can provide backup in case of abnormal situations in any other IMU, improving safety and reliability. The all-new Cube Orange+ sensor upgrade provides added security for the device.

Features:
- IMU has built-in isolation and shock absorption, which significantly improves anti-interference and stability.
- IMU constant temperature control, built-in heating resistor, can maintain constant temperature operation in low temperature environment, working temperature (-10℃~55℃).
- Modular controllers can provide customized carrier boards for different needs.
- Fully compatible with RTK differential GPS, it can achieve centimeter level precise positioning.
- High compatibility, Cube is compatible with all carriers in this series.

Hardware Parameter:
- Main processor: STM32H757 Dual Core M7 + M4
- Coprocessor: STM32F100
- Supported remote control signal: PPM/SBUS/DSM
- Power redundancy support: support 3-channel redundancy
- Sensor number: 3 groups of IMU
- Sensor details: accelerometer x 3, gyroscope x 3, electronic compass x 1, barometer x 2

Basic Parameter:

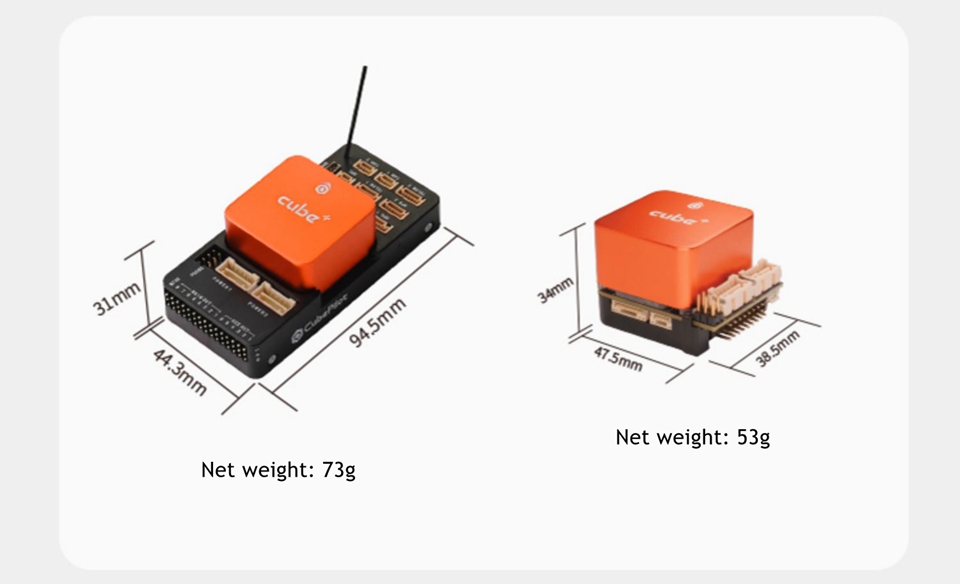

- Net weight: 340g for Standard Set; 262g for Mini Set
- Shell material: CNC aluminum alloy forming (cube) + injection molding ABS (PCB)
- Product size: 38.4 x 38.4 x 22mm for cube; 94.5 x 44.3 x 17.3mm for PCB
- Working temperature: -10 ~ 55℃ IMU constant temperature control

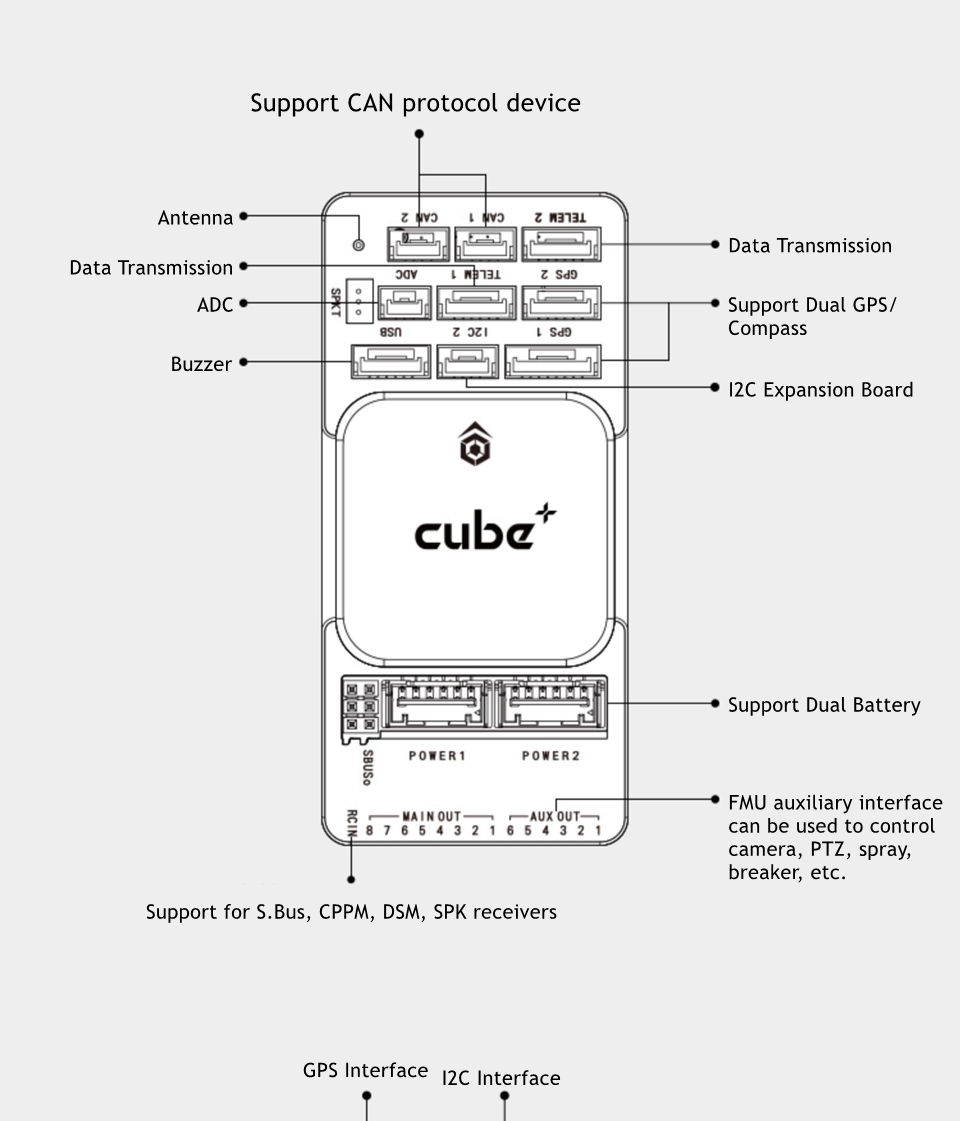

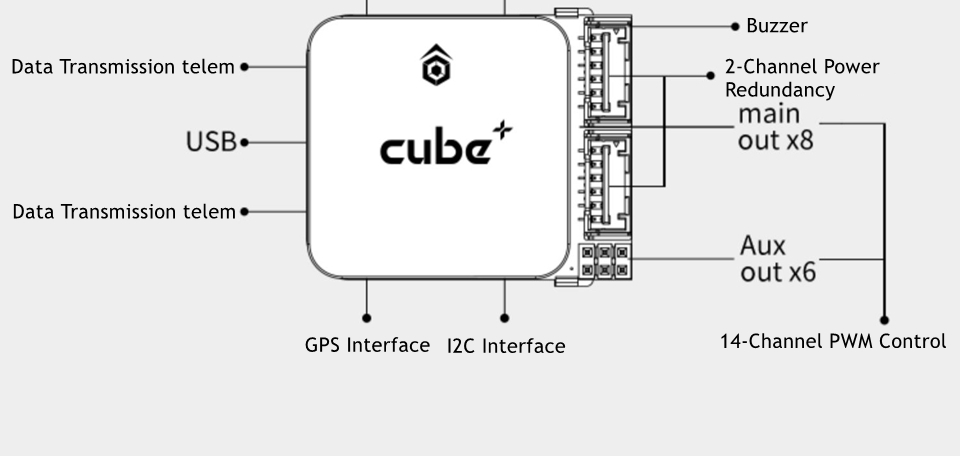

- PWM IO: 14
- GPS/serial port: 4
- Debug interface: 2
- I2C interface: 2 for Standard Set; 1 for Mini Set
- CAN FD interface: 2 for Standard Set; 1 for Mini Set

Expansion Function:
- Synergetic computers support collaborative work between TX1, Raspberry Pi, and other computers, and support OSD image transmission and display.

Package Included:
- 1 x Cube Orange+ Set
- 1 x Power Supply Module
- 1 x I2C Board
- 1 x Cable Set
- 4 x Hexagonal Round Screws
- 9 x Stickers (3 x Large, 2 x Medium, 4 x Small)

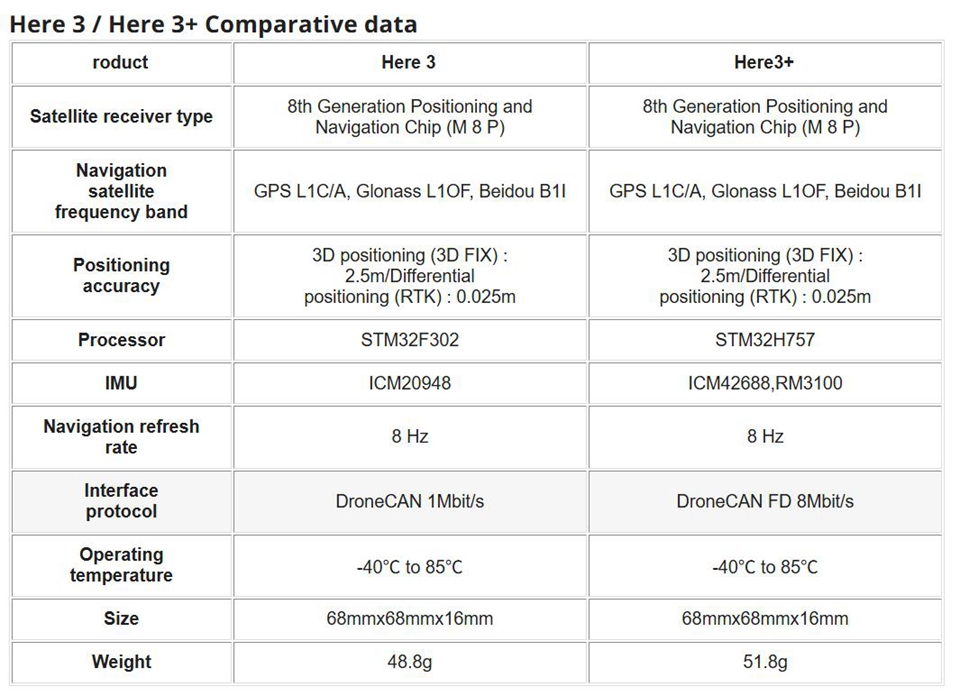

- 1 x HERE3+ GPS Module
