Xtend XTP9B DPS 001PIX Wireless Data Transmission Module Kit RF Box 900mAh 1W for PIXHACK Flight Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$514.26
  • Price in reward points: 5143 Reward Points: 51
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $503.97 $493.69 $478.26 $457.69 Contact US
Quantity:

Xtend XTP9B DPS 001PIX Wireless Data Transmission Module Kit RF Box 900mAh 1W for PIXHACK Flight Controller

Specifications:

- Model:Xtend-XTP9B-DPS-001PIX
- Indoor/city distance (with 2.1db antenna): Up to 900m
- Outdoor/wireless visible distance (with 2.1db antenna): 15-22km
- Sending power output: 1mW-1W(0-30dB)
- Seriel transmitting speed: 10-230, 400bps
- Receiving sensitivity: -110dB(@9,600BPS),-100DB@115,200BPS
- Transmitting speed: 9,600 or 115, 200bps
- Wireless RF transmssion speed: 125kbps
- Working temperature: -40~85 degree C
- Working frequency: ISM 902-928MHz
- Spread specrum: FHSS
- Networking topology: Peer to peer,point-to-point,point-to-multip
- Channel: 10 hop sequences share 50 frequencies
- Encryption: 256bit /128 BIT AES
- Voltage: 2.8-5.5VDC
- Receiving : 35mA
- Certificate: FCC,IC, C-TICK
- Size: 7.5*4.6*1.7cm
- Antenna weight : 24g
- Module weight: 29g
- Shell: 47g
- Total weight: 100g

Features:
- CNC XTEND shell, high quality
- 57600 baud rate with flight controller, distance over 20km
- Baseboard with USB port and TTL interface
- Working band ISM 900M, 115.2kbps, with a RPSMA antenna interface
- FHSS technology, transmitting power software adjustable 1mW-1W

Transmit power output 1mW 10mW 100mW 500mW 1W
Power voltage 2.8-5.5VDC 2.8-5.5VDC 2.8-5.5VDC 3.0-5.5VDC 4.75-5.5VDC
Transmit current (5V) 110mA 140mA 270mA 500mA 730mA
Transmit current (3.5V) 90mA 100mA 250mA 600mA N/A

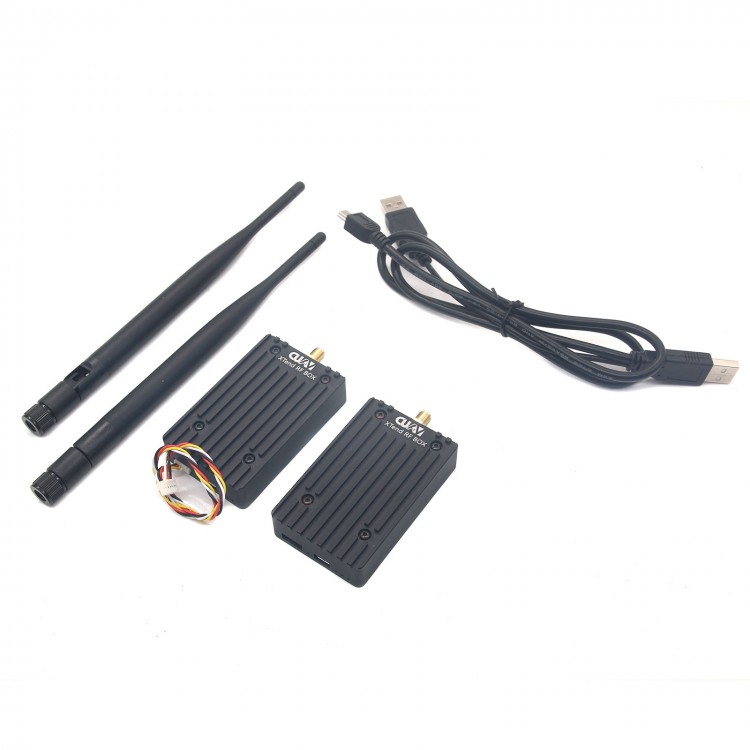

Package Contents:
- 2 x Data Transmission Module with shell
- 2 x Antenna
- 1 x Connection cable
- 1 x USB data cable
