CUAV P9 900MHZ Radio Telemetry Wireless Transmission Module P900 20-30KM Distance for PIX PIXHACK Flight Controller

CUAV P9 900MHZ Radio Telemetry Wireless Transmission Module P900 20-30KM Distance

Description:

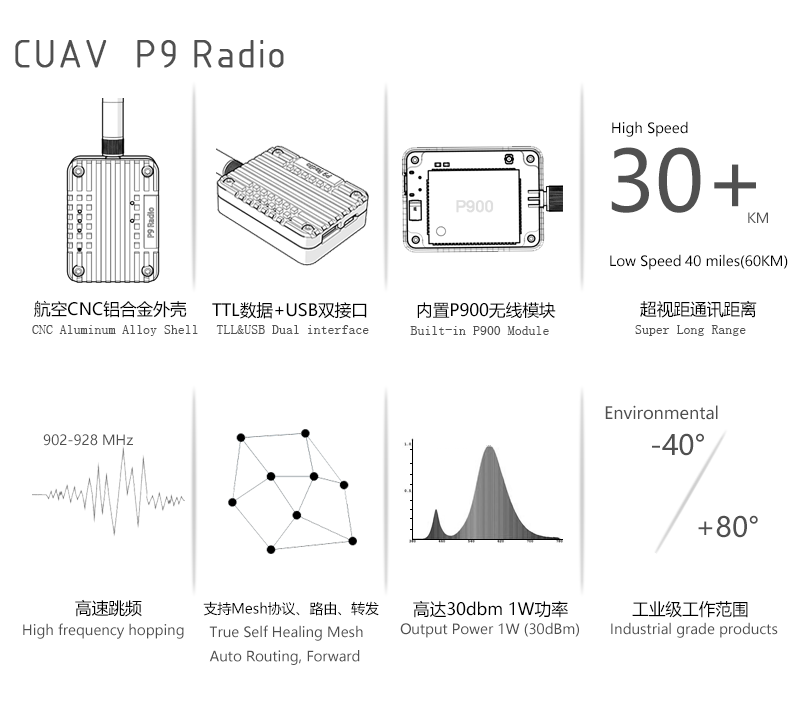

- P9 Radio is CUAV ultra-vision UAV data link communication module, which has high power, high speed in frequency hopping and high reception sensitivity. This P9 datalink is compatible with both pixhawk and pixhack flight control. CUAV P9 Radio has a super long range, max distance is up to 60km. P9 Radio is ideal for applications in UAV communication system.

Specifications:

Frequency 902-928 MHz Spreading Method Frequency Hopping Forward Error Detection Hamming /BCH/Golay/Reed-Solomon Error Detection Error Detection 32 bits of CRC, ARQ Encryption Optional (see –AES option) Range 40 miles (60 km)     Sensitivity -110 dBm @ 115.2 kbps   -108 dBm @ 172.8 kbps   -107 dBm @ 230.4 kbps Output Power 100mW – 1W (20-30dBm) Serial Interface 3.3V CMOS TTL Serial Baud Rate Up to 230.4 kbps asynchronous Link Rate 115 – 276 kbps     Operating Modes Mesh, Auto Routing, Store and Forward,Self Healing, Packet Routing Modes     Blocking +/- 1 MHz > 55 dBc   +/- 2.5 MHz > 60 dBc   +/- 5 MHz > 65 dBc   > 930 MHz > 70 dBc   < 890 MHz > 70 dBc     Remote Diagnostics Battery Voltage, Temperature, RSSI,Packet Statistics Core Voltage 5.0V + -0.25V Power Consumption Sleep < 1mA   Idle 3.5mA   Rx: 35mA to 80mA   Tx : 800mA to 1200mA Connectors:   Anternna SMA DATA GH1.25-6P&USB Environmental -55o C – +85o C     Weight 51.2MM*38.2MM*15.5MM     Order Option s   -AES 128-bit AES Encryption (requires permit for export outside of Canada and USA.) -ENC Enclosed Model

Package included:
- 2x P9 Radio
- 1x 3-12S Power supply module
- 2x 900MHZ Antenna
- 1x Micro USB cable
- 1x PIXHACK Data Cable
- 1x PIXHAWK Data Cable

接口定义：
