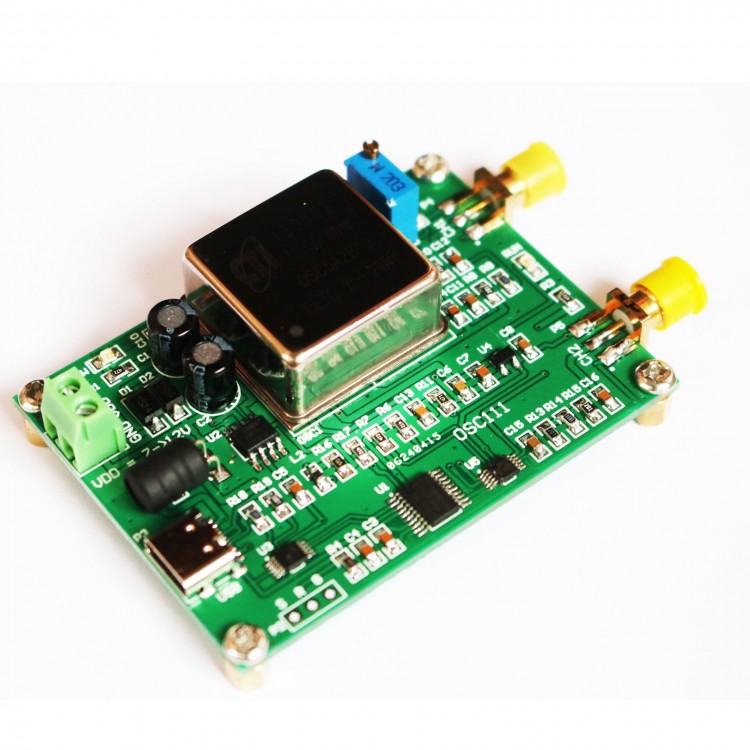

0.004-220MHz OCXO Module Frequency Reference USB Adjustable Frequency Oven Controlled Crystal Oscillator
Description:
- OSC111 is a small RF signal generator with two independent frequency high-resolution pulse outputs, and CH1 channel with frequency sweep function; This module is easy to use. It can input frequency data through USB operation on the upper computer, update the output frequency immediately, and save the set data.
- Application: signal generator, instrument calibration
Specification:
- Signal range: 0.004 ~ 220MHz
- Signal amplitude: -10 ~ 0dBm
- Sweep frequency time range: 10ms ~ 10000ms
- Working voltage: 7 ~ 12VDC
- Working current: < 500mA
- Product size: 57 x 45 x 20mm
- Net weight: 30g
Interface Description and Related Operation:
- P1 Interface (power supply):
VDD: power supply positive (7 ~ 12V)
GND: power supply negative
- P4 interface: signal output CH1 (RP SMA KE KHD female connector)
- P5 interface: signal output CH2 (RP SMA KE KHD female connector)
Package Included:
- 1 x OCXO Module
