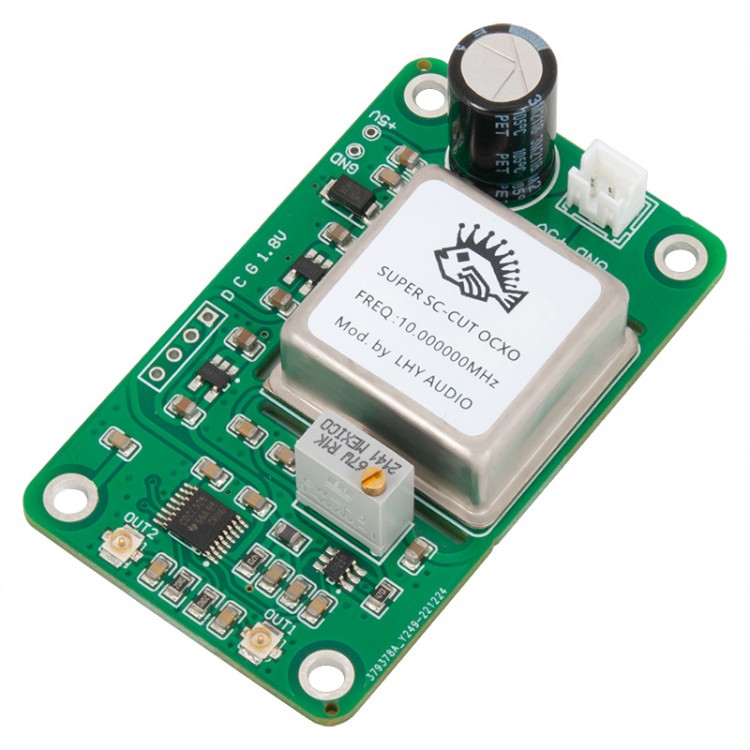

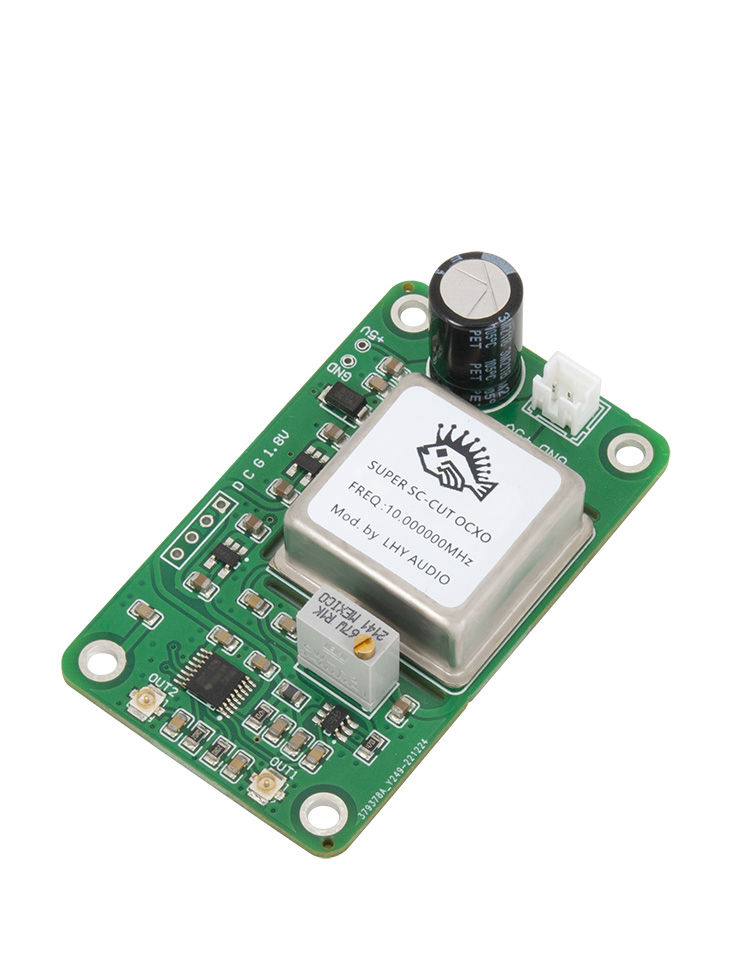

LHY AUDIO Super SC-CUT OCXO 10MHz Oven Controlled Crystal Oscillator Clock Board Output 2CH 25MHz
Description:
The module can be used to upgrade optical disc drives, network cards, CD players, and decoders. It is particularly suitable for circuits with two channels that require phase synchronization. The SC-cut OCXO signal has high accuracy and stability. Its upgraded clock helps improve clock quality. After the upgrade, the sound is extended and strengthened at both ends, the sound is transparent, clean and the details are clear.

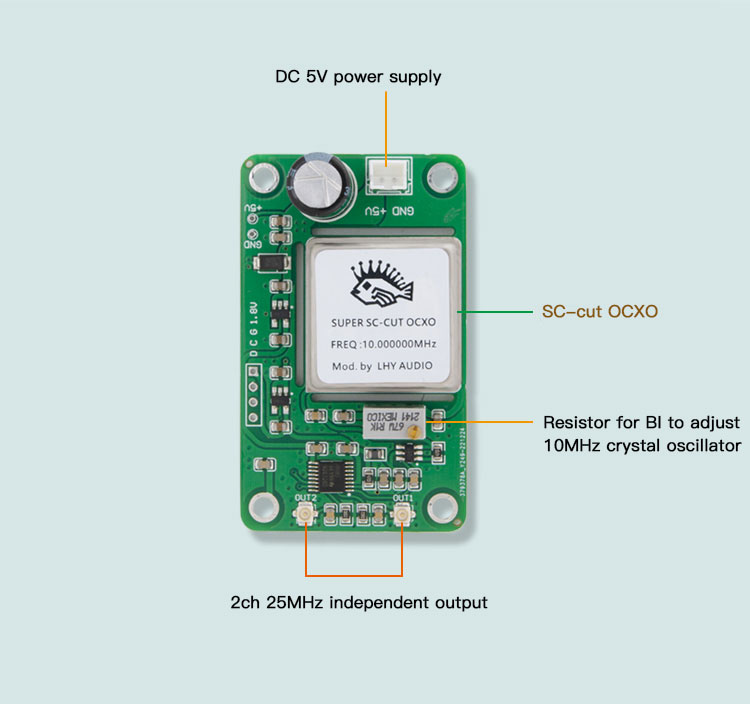

Using a 10MHz OCXO as a reference clock signal, the 2CH output frequency points are homologous synchronous, reducing crosstalk between different frequency points using multiple different crystal oscillators. High-performance logic integrated circuits are used for physical frequency division, featuring good synchronization quality of frequency division waveform, no phase difference, and low phase noise. The default output frequency is two-way 25MHz.
Specifications:
- Brand: LHY AUDIO

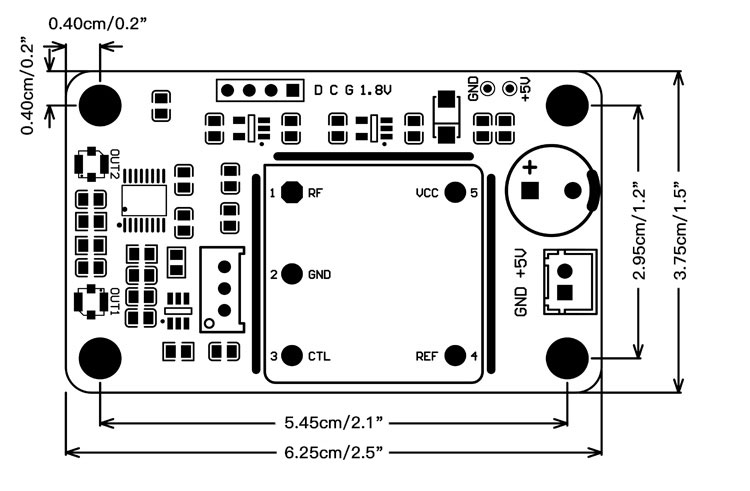

- Size: 62.5 x 37.5 x 19.5mm/2.5 x 1.5 x 0.8"
- Weight: 22g/0.05lb
- Power supply: 5V DC (external power supply)
- Supply voltage: 5V DC (external power supply)
- Supply current: ≥1A
- Output: out1: default 25MHz/3.3Vpp; out2: default 25MHz/3.3Vpp
Package Included:
- 1 x OCXO Clock Board
Note:
- Different output frequencies can be customized according to customer requirements, and the frequency must be integer without decimal points.
