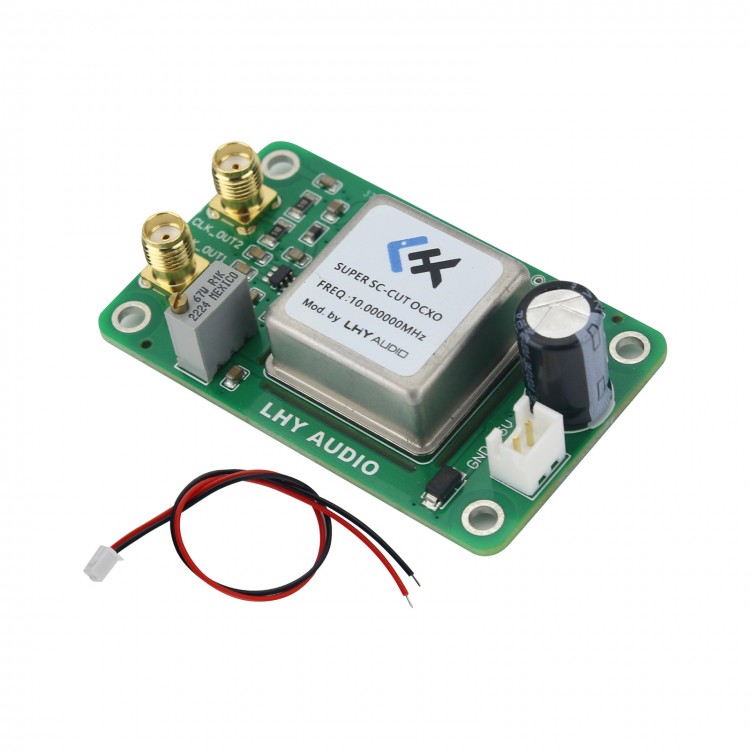

LHY AUDIO OCXO Clock Board Super SC-Cut OCXO Board w/ 10MHz 2-Way Output to Upgrade Network Card DAC
Advantages:
- Hifi SC-cut OCXO board
- With stable output and high-precision signals
Description:
The OCXO clock board can be used to upgrade optical drive, network cards, CD players and decoders, especially suitable for 2-way circuits that require phase synchronization. Generally, the quality of ordinary crystal oscillator clock signal is low, while SC-cut OCXO clock signal has high precision and high stability. Thus, the SC-cut OCXO can be used to upgrade the clock, effectively improve the clock quality. And the sound at both ends of the upgrade extension is strengthened and transparent and clean, with clear details.
Using a 10MHz OCXO as a reference clock signal, the two output frequency points are homologous synchronous, reducing crosstalk between different frequency points using multiple different crystal oscillators. High-performance logic integrated circuit does physical frequency division, featuring good synchronization quality of frequency division waveform, no phase difference, and low phase noise.
Specifications:
- Type: 10MHz two-way (fixed frequency)
- Brand: LHY AUDIO
- Dimensions: 62.5 x 37.5 x 19.5mm/2.5 x 1.5 x 0.8" (LxWxH)
- Weight: 24g/0.05lb
- Power supply voltage: 5V DC (external pins for power supply)
- Power supply current: ≥1A
- Output: Fixed 10MHz/5Vpp
Package Included:
- 1 x OCXO Board
Note:
- Network card is not included.
