Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $240.68 | $235.77 | $228.40 | $218.58 | Contact US |

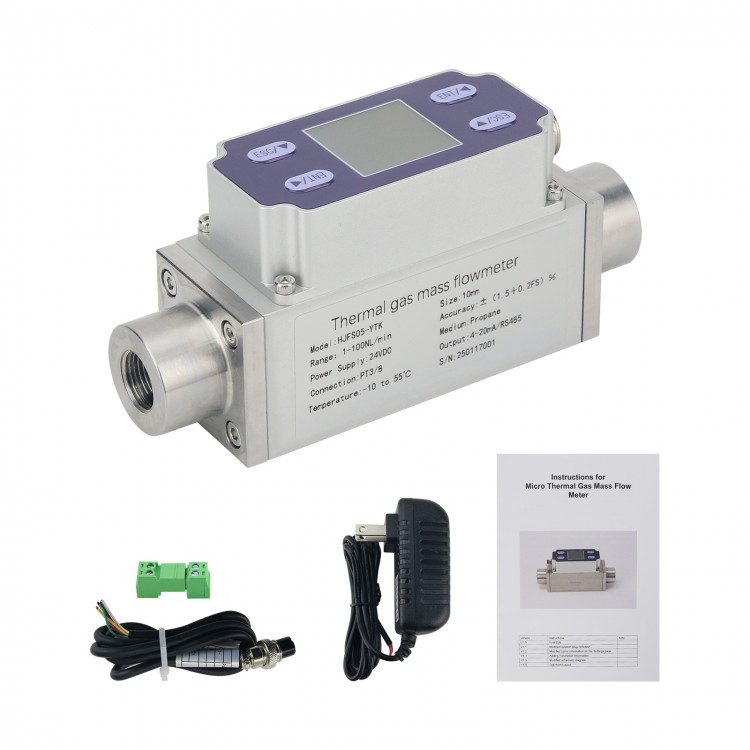

0-100L/min Propane Gas Meter Propane Flow Meter MEMS Thermal Gas Flow Meter with RS485 Output
Features:
- LED screen displays the data in a clear and intuitive way
- Cumulative flow and real-time flow can be displayed
- Data can be cleared and records can be saved
- The unit of measurement can be selected
- Its sensor chip adopts thermal mass flow metering. Thus, it does not require temperature and pressure compensation and ensures accurate measurement
- Airflow direction indication: The direction of the arrow on the device is the correct flow direction of the medium
- 304 stainless steel: Better sealing of the body and explosion-proof and waterproof performance make it safer to use
- Exquisite processing technology: perfect quality inspection standards ensure accurate measurement of data
- MEMS chip flow sensor: No temperature and pressure compensation is required due to thermal mass flow metering
- Multi-sensor integration on a single chip makes it easy to implement multiple functions in one device
- Professional quality and complete functions: high sensitivity, high precision and quality assurance
- Wide range of applications: widely used in new energy, lithium battery applications, kilns and photovoltaic semiconductors. It is suitable for mechanical and electrical industry, food industry, chemical industry, pharmaceutical industry, agriculture, forestry and fishery, glass industry, scientific research institutions and beverage industry
Specifications:
- Supply voltage: 15-24VDC
- Range ratio: 1:100
- Linearity accuracy: ±0.5%F.S
- Accuracy: ±1.5%F.S
- Repeatability: ±0.2%F.S
- Analog quantity: 0~5V
- Working pressure: Below 1.5MPA
- Medium temperature: ≤55°C
- Response time: 50-1000MS
- Medium type: gas < 95% RH
- Signal output: RS485, 4-20MA and NPN (PNP)
- Component material: stainless steel, aluminum alloy material, etc., can be customized and the adapter is available in a variety of specifications
- Tube diameter: DN10/DN15/DN20
Package Included:
- 1 x Gas Flow Meter
Packaging Details:
- G.W.: 0.55kg
