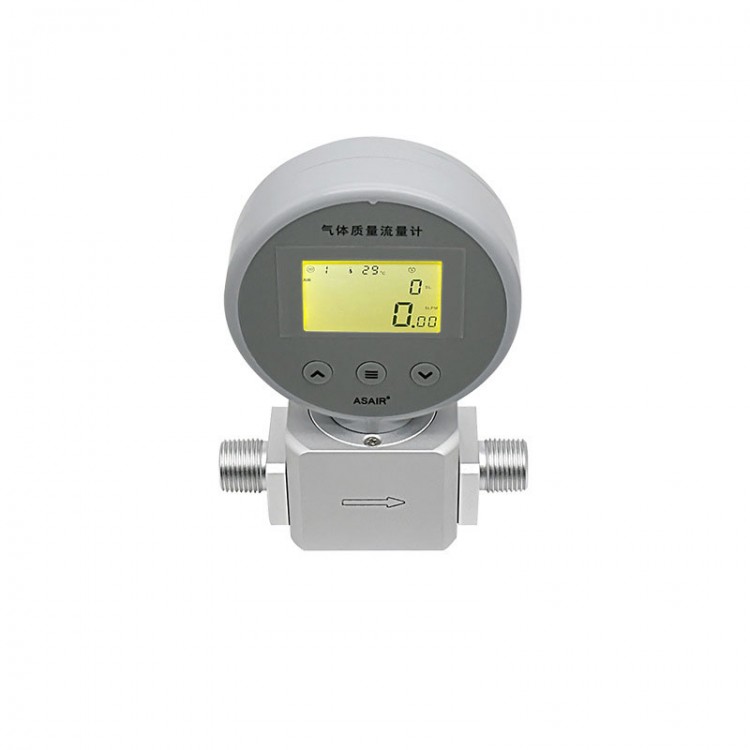

ASAIR AMS2106R02 CO₂ Gas Mass Flow Meter 1-100L/min Thermal Mass Flow Meter Supports Modbus-RTU

ASAIR AMS2106R02 CO₂ Gas Mass Flow Meter 1-100L/min Thermal Mass Flow Meter Supports Modbus-RTU

Description:
The digital gas mass flow meter is based on the thermal principle. It calculates the gas mass flow by measuring changes in resistance. The product features a self-developed MEMS flow sensor chip, delivering excellent accuracy across the full range. It offers outstanding performance, high stability and reliability, along with intuitive readings, precise measurement, strong resistance to both high and low temperatures, good linearity, and fast response.

It supports both battery power and external power supply, enabling flexible use and cumulative flow measurement. This meets customer demands for a high cost-performance solution.

Each unit undergoes rigorous testing and calibration before leaving the factory to ensure high-quality delivery.

Features:
* Digital gas mass flow meter
* Measuring range: 1-100 L/min, excellent repeatability
* Integrated measurement of mass flow and temperature
* Standard Modbus-RTU communication protocol
* Free PC software provided for flow meter management

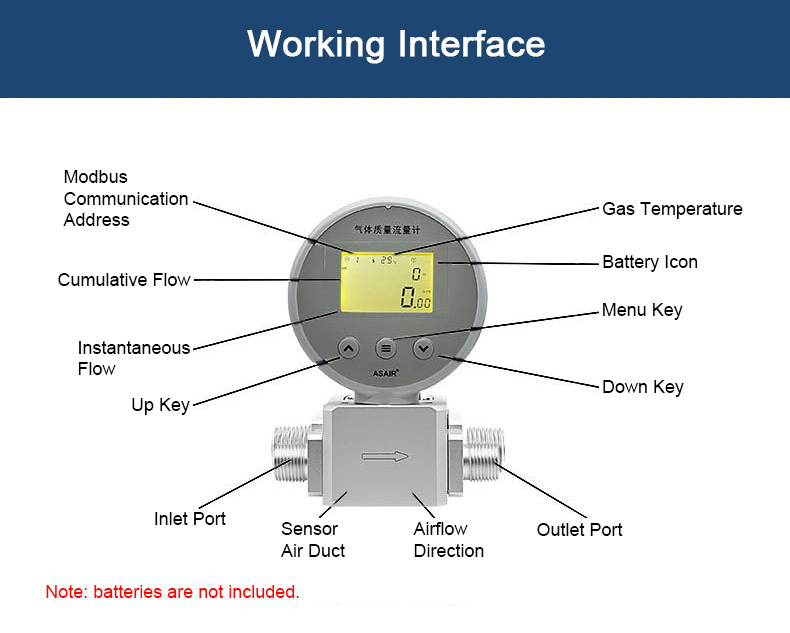

* Segment LCD display
* Powered by batteries or 9-24V DC external power supply (batteries not included)
* Default NPT connection, customizable to G-thread or other interfaces upon request

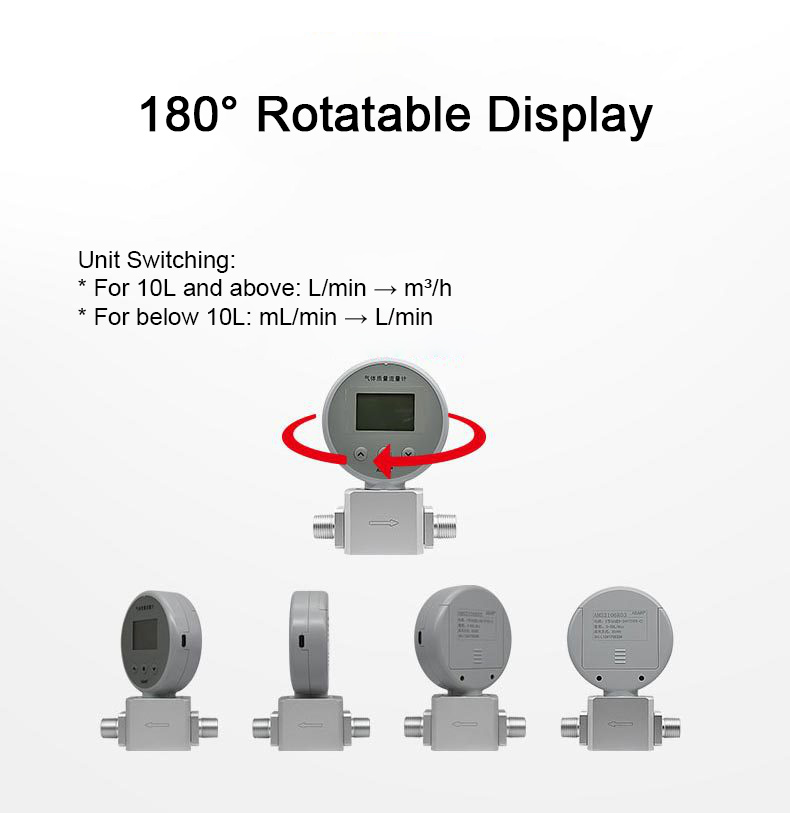

* 180° rotatable display and unit switching: mL/min → L/min

Application Scenarios:
* It can be used to monitor the mass flow of dry, clean, and non-corrosive gases such as air, nitrogen, oxygen, argon, and carbon dioxide (excluding flammable and explosive gases). It is also widely applicable in fields such as academic research, fire safety, environmental monitoring, tobacco, smart agriculture, food, and pharmaceuticals.

Specifications:

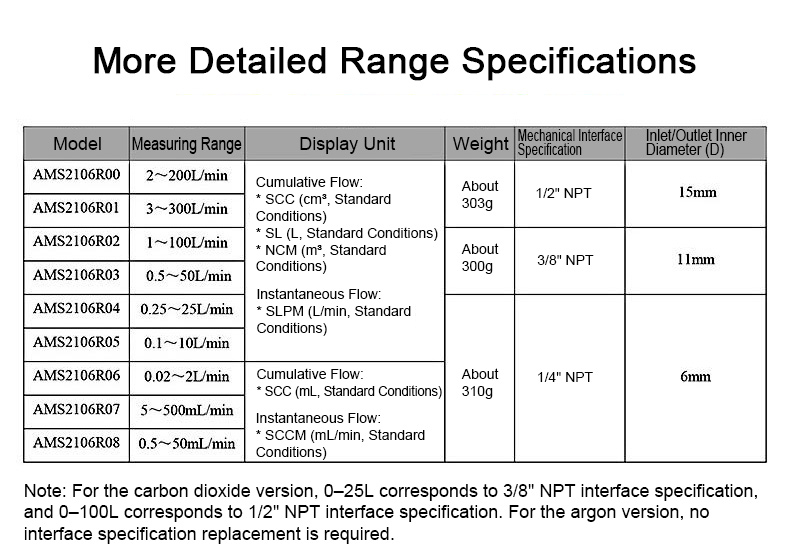

* Measuring Range: 1-100L/min
* Output Method: RS485
* Accuracy: ±3% of full scale
* Repeatability: 0.5% of full scale
* Response Time: ≤ 2 seconds
* Power Supply: 3 × AA batteries or external power supply (9-24V DC)
* Display Type: Segment LCD screen
* Maximum Working Pressure: 0.8MPa
* Standard Calibration Gas: Air (25°C, 1 standard atmosphere)
* Operating Temperature: -10 to 60°C

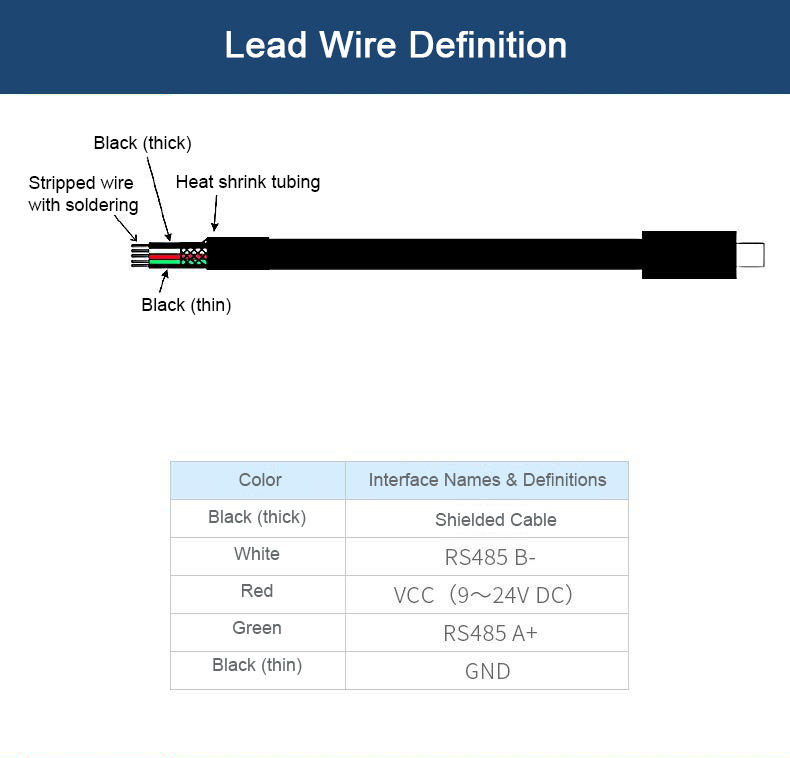

* Lead Wire: Custom Type-C data cable
* Power Consumption: ≤ 1W
* Housing Material: ABS
* Air Duct Material: 6061 aluminum alloy
* Communication Way: RS485
* Protocol: Modbus-RTU
* Working Environment: -10℃ to 60℃
* Dimensions: 92mm × 42mm × 124.2mm

Packing List:
* 1 x Gas Mass Flow Meter (only for CO₂)
* 1 x Power Adapter
* 1 x Lead Wire

Packaging Details:
* Weight: 0.45kg

Note:
* AA batteries are not included.
* For the carbon dioxide version, it corresponds to 1/2" NPT interface specification.
