Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $17.32 | $16.96 | $16.43 | $15.73 | Contact US |
ASAIR AM2315C Duct Temperature and Humidity Sensor with I2C Signal -40 to 80°C & 0-100% RH Range
Description:
The AM2315C is a brand-new product equipped with a dedicated ASIC sensor chip, a high-performance semiconductor silicon-based capacitive humidity sensor, and a standard on-chip temperature sensor. It uses a standard I²C data output signal format. Its performance has been greatly improved and surpasses the reliability level of the previous generation sensor.
The new product has been enhanced for more stable performance in high temperature and high humidity environments. At the same time, the product's accuracy, response time, and measurement range have all been significantly improved. Each sensor undergoes strict factory calibration and testing to ensure it meets the demands of large-scale customer applications.
Features:
* Temperature and Humidity Sensor
* Fully Calibrated

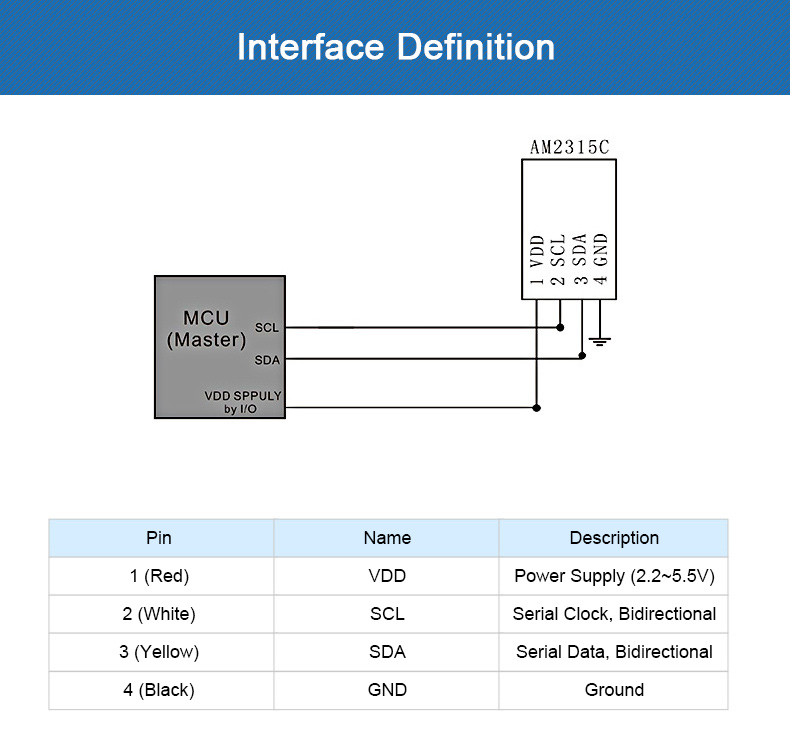

* Digital Output, I2C Interface
* Excellent Long-Term Stability
* Fast Response, Strong Anti-Interference Ability
* Wide Voltage Support: 2.2~5.5 V DC
* Temperature Measurement Range: -40 to 80°C
* Humidity Measurement Range: 0 to 100% RH
* Humidity Accuracy: ±2% RH (at 25°C)
* Temperature Accuracy: ±0.3°C
* Output Signal: I²C
Application Scenarios:
* The AM2315C is widely used in consumer electronics, medical, automotive, industrial, meteorological, and other fields. Examples include HVAC systems, dehumidifiers, refrigerators, testing and inspection equipment, and other related temperature and humidity detection and control products.
Specifications:
* Model: AM2315C
* Measurement Range: Temperature: -40 to 80°C; Humidity: 0-100% RH
* Accuracy: Temperature: ±0.3°C; Humidity: ±2% RH (at 25°C)
* Resolution: Temperature: 0.01°C; Humidity: 0.024% RH
* Repeatability: Temperature: ±0.1°C; Humidity: ±0.1% RH
* Sensor: Capacitive Humidity Sensor
* Operating Voltage: DC 2.2-5.5V
* Housing Material: ABS + PC Plastic
* Power Consumption: Sleep Mode: 0.8µW; Measuring: 3.2mW
Packing List:
* 1 x Temperature and Humidity Sensor
Packaging Details:
* Weight: 0.22kg
