100PCS AGR10 100Kpa Gauge Pressure Sensor MEMS Air Gas Pressure Sensor with Analog Voltage Output

100PCS AGR10 100Kpa Gauge Pressure Sensor MEMS Air Gas Pressure Sensor with Analog Voltage Output

Description:
The AGR10 gauge pressure sensor is suitable for biomedical, vacuum negative pressure, home appliances, and other fields. Its core is a piezoresistive pressure-sensitive chip processed using MEMS technology. The chip consists of an elastic membrane and four piezoresistive resistors integrated on the membrane. These four piezoresistive resistors form a Wheatstone bridge structure. When pressure is applied to the elastic membrane, the bridge produces a voltage output signal linearly proportional to the applied pressure. By measuring the output voltage of the Wheatstone bridge, the pressure value can be calculated.

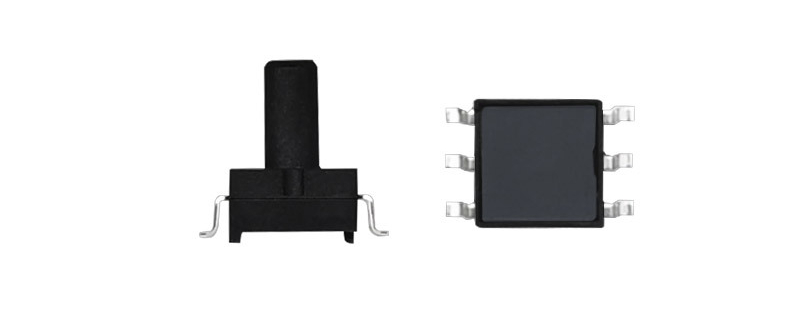

The AGR10 gauge pressure sensor uses a standard SOP6 package, making it convenient for users to install via surface-mount technology. The AGR10 features good linearity, repeatability, high sensitivity, and stability.

Features:
* Gauge Pressure Sensor
* Fast Response Speed
* Stable Signal Output
* Excellent Long-Term Stability
* SOP6 Package Type
* With Good Linearity, Repeatability, High Sensitivity, and Stability
* Standard Pressure Range: 100kPa
* Constant Voltage Supply: < 15V
* Constant Current Supply: < 3mA
* Operating Temperature: -30 to 100°C
* Storage Temperature: -40 to 150°C
* Repeatability: ±0.3% FS
* Hysteresis: ±0.3% FS

Application Scenarios:
The AGR10 gauge pressure sensor series can be applied in the following fields:
* Biomedical: Electronic blood pressure monitors, ventilators, oxygen concentrators, nebulizers, monitors, etc.
* Industrial Applications: Negative pressure measurement, pressure instruments, etc.
* Home Appliances: Washing machines, beer dispensers, coffee machines, vacuum cleaners, water purifiers, water heaters, etc.
* Vacuum Negative Pressure: Vacuum packaging machines, vacuum blenders, vacuum cell crushers, vacuum fresh-keeping boxes, vacuum pumps, etc.

Specifications:
* Product Model: AGR10
* Standard Range: 100kPa
* Constant Voltage Supply: < 15V
* Constant Current Supply: < 3mA
* Operating Temperature: -30 to 100°C
* Storage Temperature: -40 to 150°C
* Bridge Resistance: 4000 to 6000Ω
* Zero Output: -10 to 10mV (≥10kPa)
* Full Scale Output: 90mV (typical) for 100kPa Version
* Bridge Resistance Temperature Drift: 1600~2800ppm/°C
* Full Scale Temperature Coefficient: -0.26 to -0.1% FS/°C (Constant Voltage Supply); -0.05 to 0.05% FS/°C (Constant Current Supply)
* Non-linearity: -0.3 to 0.3% FS (≥40kPa)
* Overpressure: 2X kPa
* Burst Pressure: 3X kPa
* Long-Term Stability: 0.2% FS per Year
* Hysteresis: ±0.3% FS
* Repeatability: ±0.3% FS

Packing List:
* 100 x Gauge Pressure Sensors

Packaging Details:
* Weight: 0.6kg
