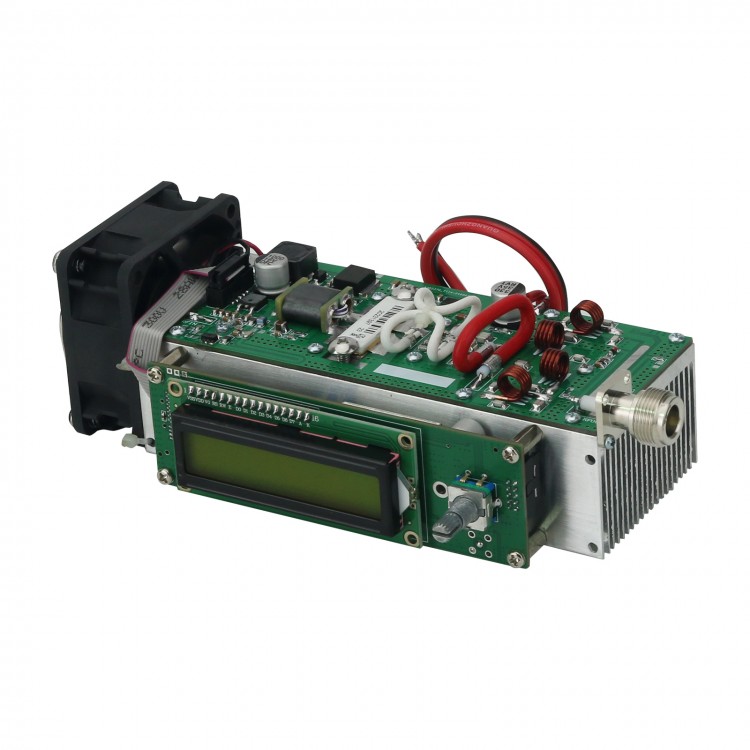

0-150W 83-108MHz Adjustable Stereo FM Transmitter with Full Protection Design for Ham Radio Station
Description:
It is a FM transmitter designed for broadcasting. The stereo FM transmitter operates within the frequency band of 83MHz-108MHz.
Specifications:
- Input voltage: 17.5V-18V DC
- Input current: Less than 12A (power supply is not included)
- Frequency: 83-108MHz
- Frequency step value: 100KHz
- Modulation method: FM, peak deviation ±75KHz
- Frequency stability: <±100Hz
- Frequency stabilization method: PLL frequency synthesis
- RF output power: 0-150W (AGC power automatic balance)
- Power calibration accuracy: +/- 5%
- Standing wave ratio protection: up to 2.0
- Temperature protection: -20°C to 74°C
- Harmonic suppression: < -65dBc
- RF output impedance: 50Ω
- RF output connector: L16 N-type female
- Audio input: One SD card slot and an audio input 3.5MM female socket
- Pre-emphasis: 50us
- Stereo separation: -55dB
- Audio frequency response: 80～15000Hz
- Audio distortion: <0.5%
- Power supply voltage and current: 17.5V 12A (not include)
- Weight: 665g
- Size: 180x60x60mm
Package Included:
- 1 x FM transmitter
Packaging Details:
- Weight: 0.85kg
