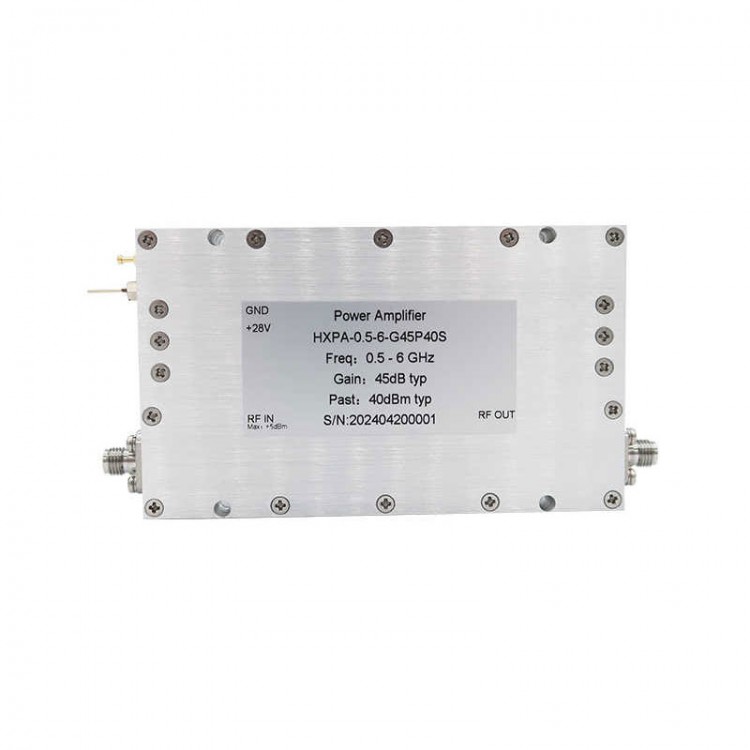

0.5-6GHz RF Microwave Wideband Power Amplifier 45dB Gain 10W High Power Output with SMA Female Connector

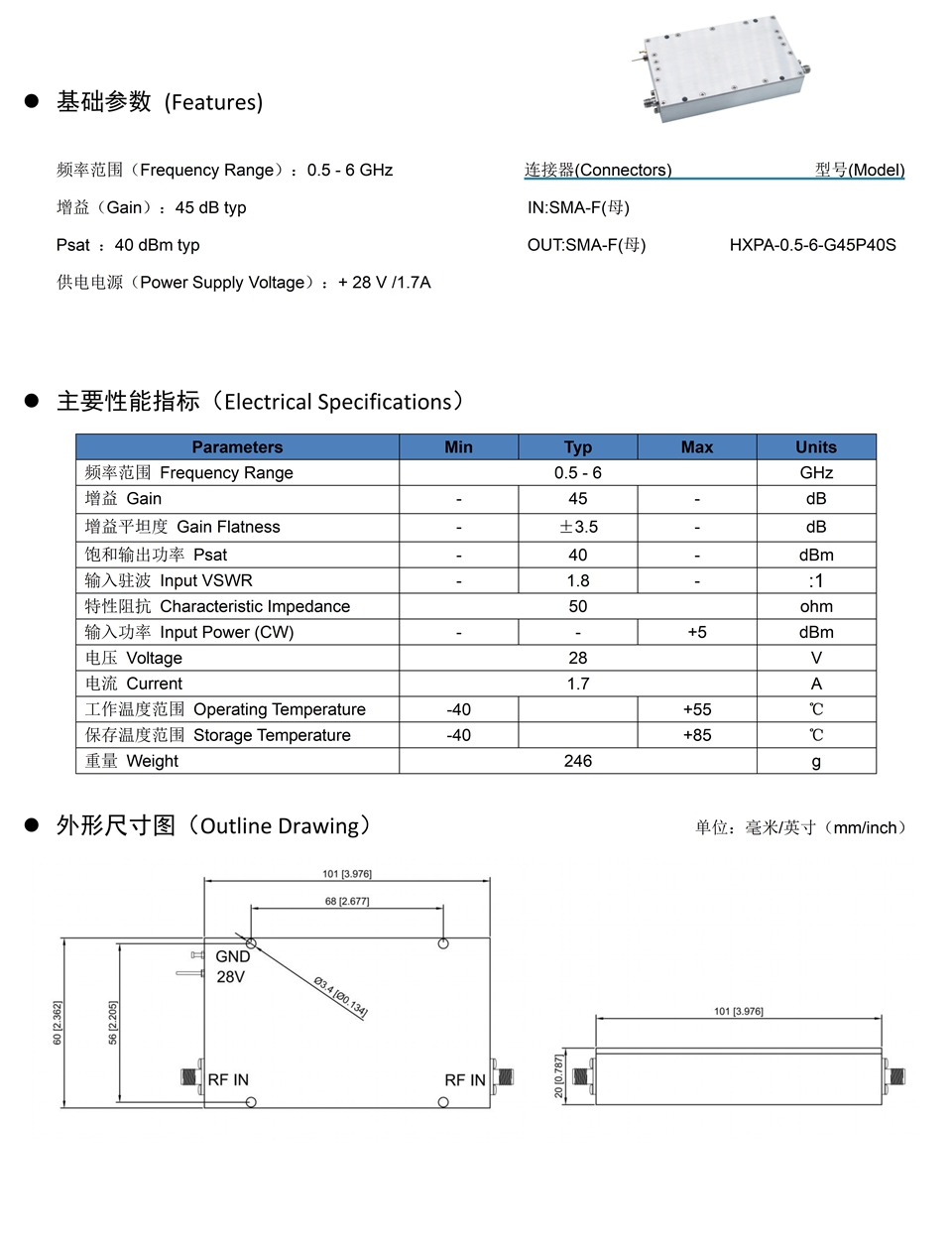

Specification:
- Frequency range: 0.5 - 6GHz

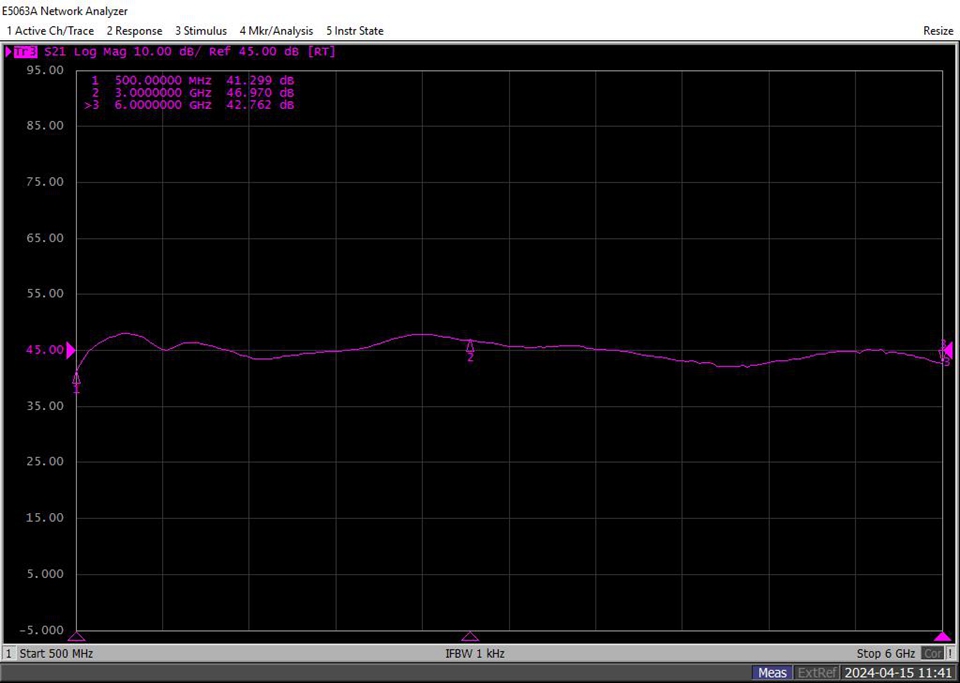

- Gain: 45dB (typ.)
- Gain flatness: ±3.5dB
- Saturation output power: 40dBm
- Input VSWR: 1.8:1
- Impedance: 50ohms
- Input power (CW): +5dBm
- Power supply voltage: +28V/1.7A
- Connector: SMA female connector
- Operating temperature: -40 ~ +50℃
- Storage temperature: -40 ~ +85℃
- Net weight: 246g
Package Included:
- 1 x RF Power Amplifier
