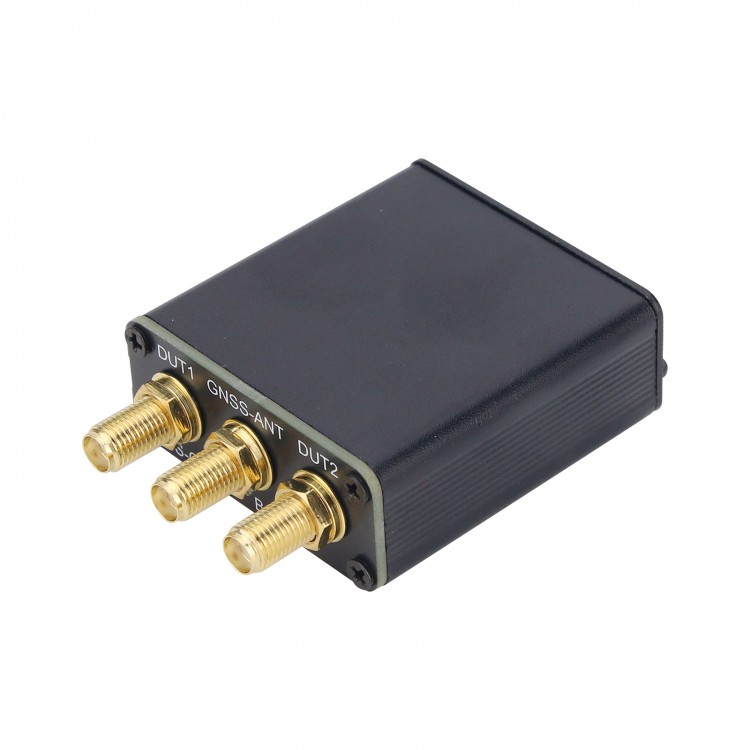

1.1 - 1.7G PS-GNSS-2 GNSS Signal Power Splitter One to Two Power Divider with DC Feed for BDS GPS Beidou

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.59
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.16 $20.73 $20.08 $19.22 Contact US
Quantity:
Buy it now Add cart

You might like

  • $0.00
  • $0.00
  • $0.00
PD-2/8-4S 2000-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

PD-2/8-4S 2000-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

$53.52

(0)
PD-0.5/8G-4S 500-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

PD-0.5/8G-4S 500-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

$84.23

(0)
TM5301A GPSDO GPS Disciplined Oscillator with Color Display High Stability Accuracy For GPS & Beidou

TM5301A GPSDO GPS Disciplined Oscillator with Color Display High Stability Accuracy For GPS & Beidou

$316.78

(0)
FC-NTP-MINI NTP Server Desktop Network Time Server w/ One Ethernet Port For GPS Beidou GLONASS QZSS

FC-NTP-MINI NTP Server Desktop Network Time Server w/ One Ethernet Port For GPS Beidou GLONASS QZSS

$71.38

(0)
GFQ-2-1117AT Power Splitter 1100-1700MHz Power Divider with 3 TNC Female Connector for GNSS/GPS/Beidou Dual Antenna System

GFQ-2-1117AT Power Splitter 1100-1700MHz Power Divider with 3 TNC Female Connector for GNSS/GPS/Beidou Dual Antenna System

$28.58

(0)
PD-2/8-2S 2000-8000MHz 2-Way WiFi Microstrip Power Divider Power Splitter 2-8G RF Power Combiner

PD-2/8-2S 2000-8000MHz 2-Way WiFi Microstrip Power Divider Power Splitter 2-8G RF Power Combiner

$21.04

(0)
GPS Disciplined Clock GPS Disciplined Oscillator Frequency Standard for GPS BD Square Wave Silver

GPS Disciplined Clock GPS Disciplined Oscillator Frequency Standard for GPS BD Square Wave Silver

$148.34

(0)
PD-0.5/8-2S 0.5-8GHz Microstrip Power Divider 500-8000MHz 2-Way Power Splitter RF Power Combiner

PD-0.5/8-2S 0.5-8GHz Microstrip Power Divider 500-8000MHz 2-Way Power Splitter RF Power Combiner

$45.02

(0)

1.1 - 1.7G PS-GNSS-2 GNSS Signal Power Splitter One to Two Power Divider with DC Feed for BDS GPS Beidou

Specification:
- Model: PS-GNSS-2
- Frequency range: 1.1 - 1.7G
- Insertion loss (3dB is not included in theory): less than 1dB
- Terminal return loss: better than 15dB
- Isolation degree: better than 15dB
- DC input: DUT1, DUT2, maximum +10V/0.1A
- DC output: GNSS-ANT, 0.25V lower than input
- RF input: GNSS-ANT
- RF output: DUT1, DUT2
- Connector: SMA
- Size: L x W x H = 70 x 46 x 19mm
- Weight: 55g

Package Included:
- 1 x Power Splitter
