Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $28.01 | $27.44 | $26.58 | $25.44 | Contact US |

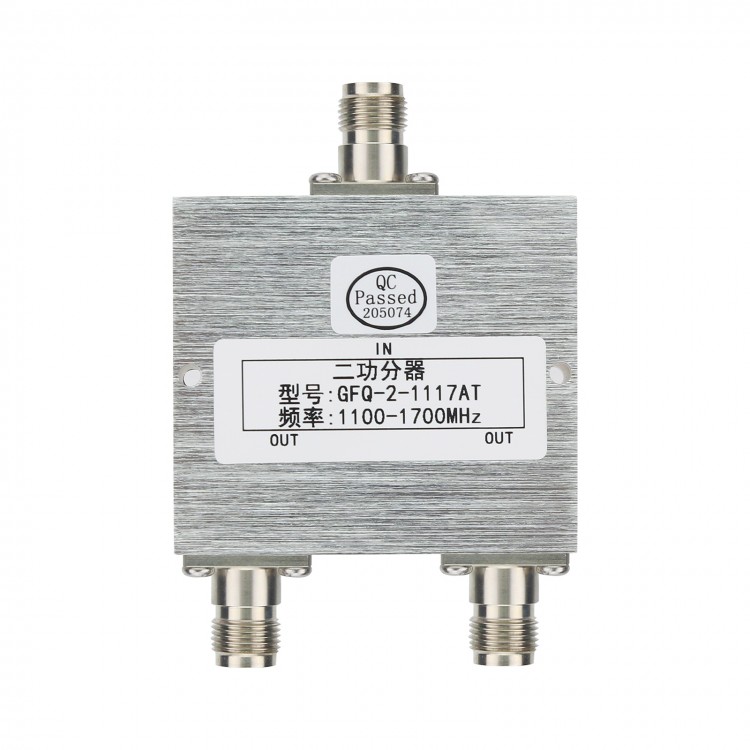

GFQ-2-1117AT Power Splitter 1100-1700MHz Power Divider with 3 TNC Female Connector for GNSS/GPS/Beidou Dual Antenna System
Specification:
- Model: GFQ-2-1117AT
- Frequency range: 1100 ~ 1700MHz
- Input impedance: 50ohm
- Voltage SWR: <=1.4
- Insertion loss: <=4.0dB (In-Out)
- Terminal isolation: >=20dB
- Withstand DC voltage: 2 ~ 24VDC
- Connector type: TNC female connector
- Size: 92 x 63 x 20mm
- Weight: 0.16kg
- Operating temperature: -45°C ~ +65°C
- Storage temperature: -55°C ~ +85°C
Package Included:
- 1 x Power Divider
