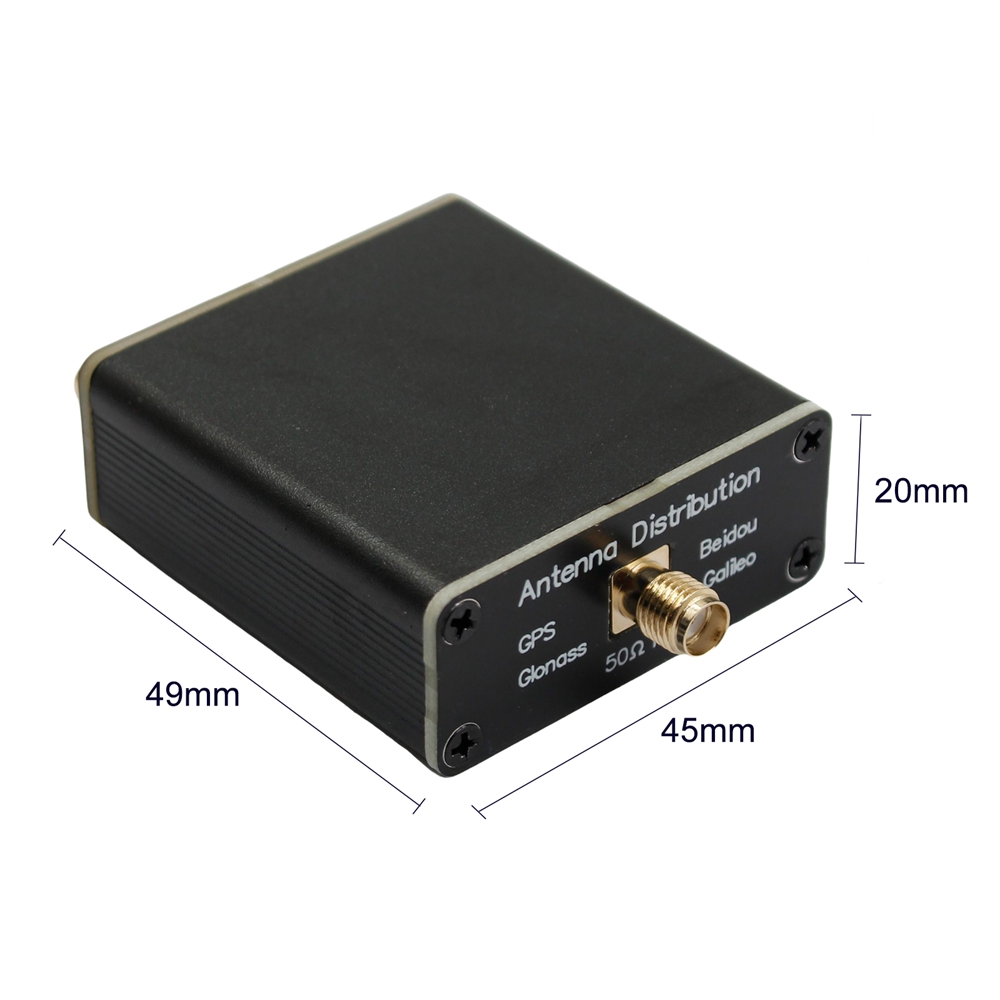

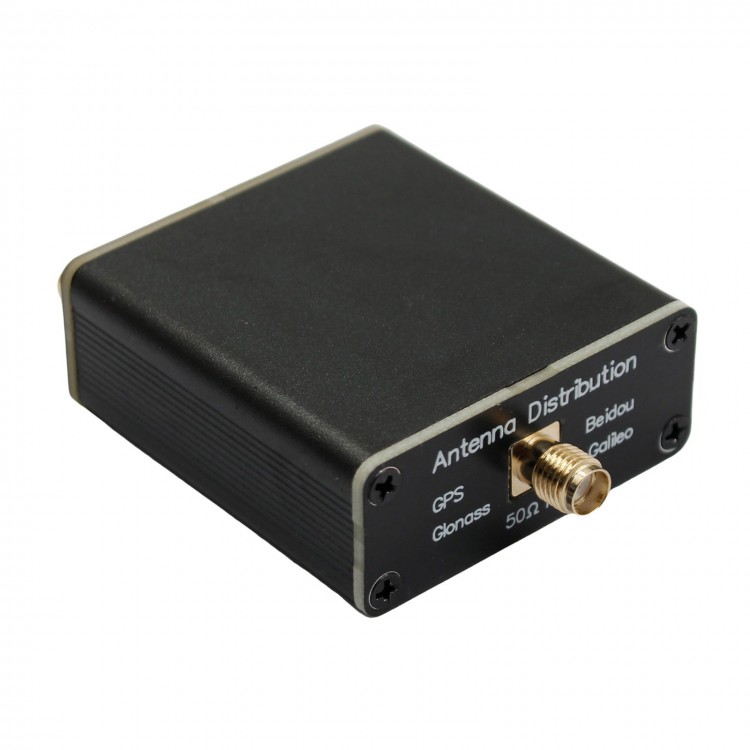

1-to-4 GPS Signal Antenna Distribution Power Splitter 1.4-1.6GHz Power Divider for GPS/Beidou/GLONASS
Description:
- One-to-four navigation signal splitter, also known as Power Splitter/Combiner, is a device that divides the energy of an input signal into two or more equal or unequal outputs; Alternatively, multiple signal energies can be combined into one output, also known as a combiner. A certain degree of isolation should be ensured between the output ports of a power divider. It has the advantages of wide operating frequency, low insertion loss, high gain and isolation, and stable performance.
- Widely applicable, it can be used for GPS, Beidou, GLONASS, Galileo, and L-band signal distribution applications.
Specification:
- Frequency range: 1.4 - 1.6GHz

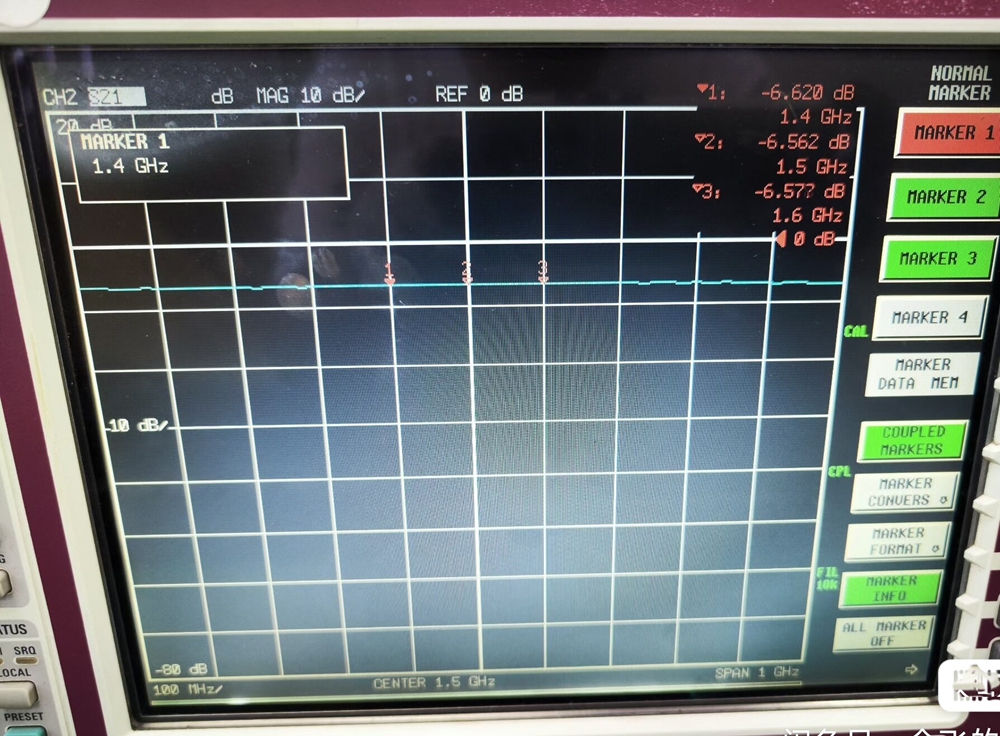

- Insertion loss: <6.6dB

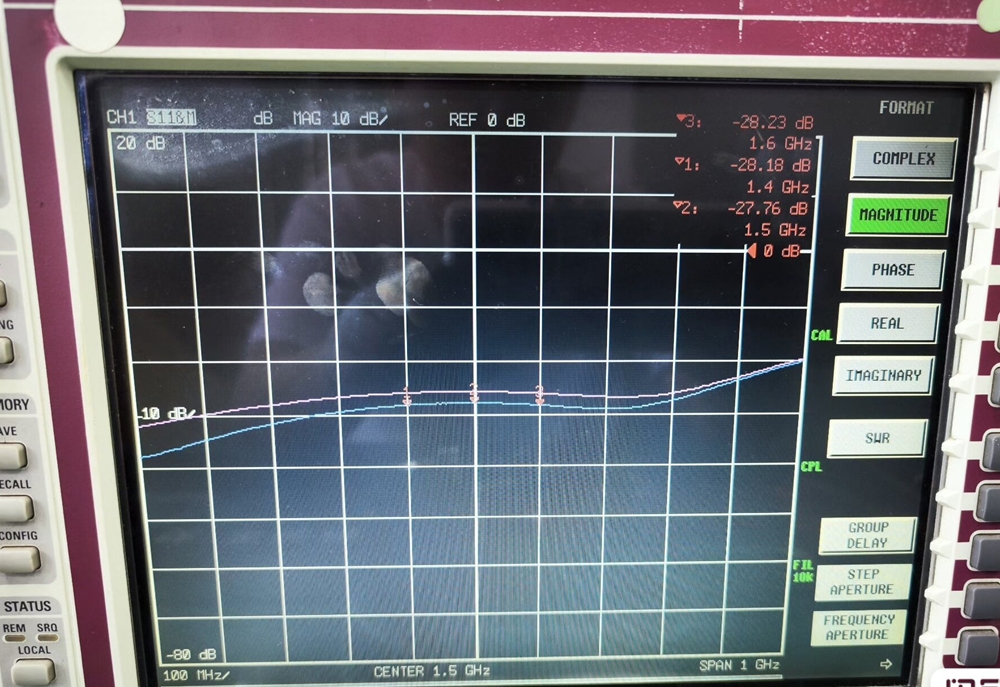

- Return loss: <-25dB

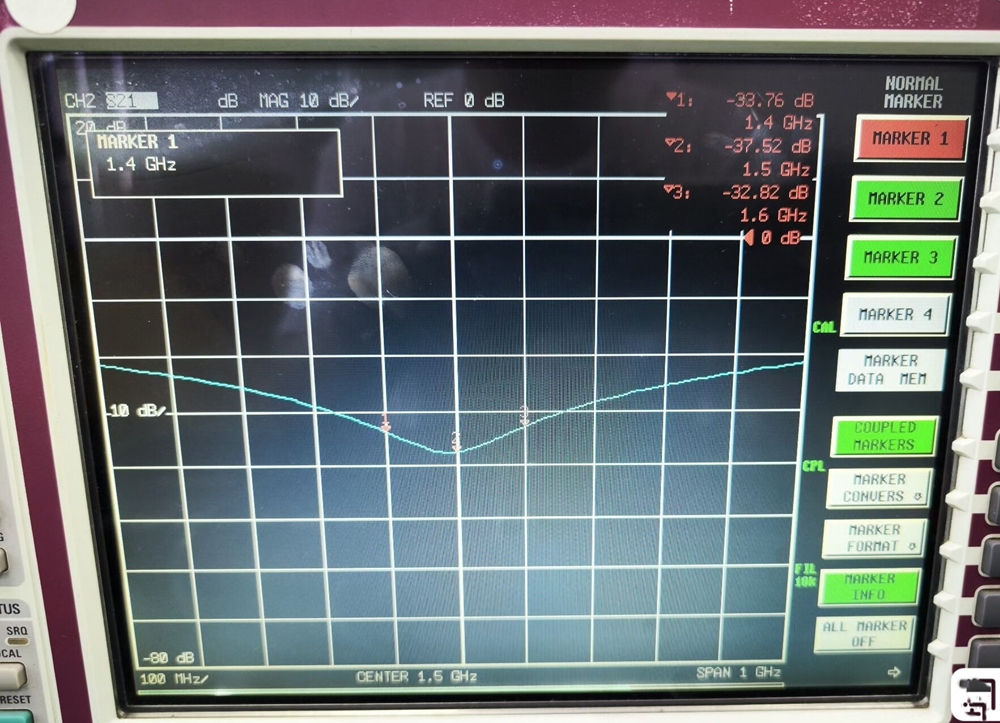

- Isolation between output channels: >30dB
- RF interface impedance: 50ohms
- Gain: -6.6
- Input/output interface: SMA female connector
Testing Video:
- https://www.youtube.com/watch?v=gg1XKfSyLMU&t=1569s
Package Included:
- 1 x Power Splitter
