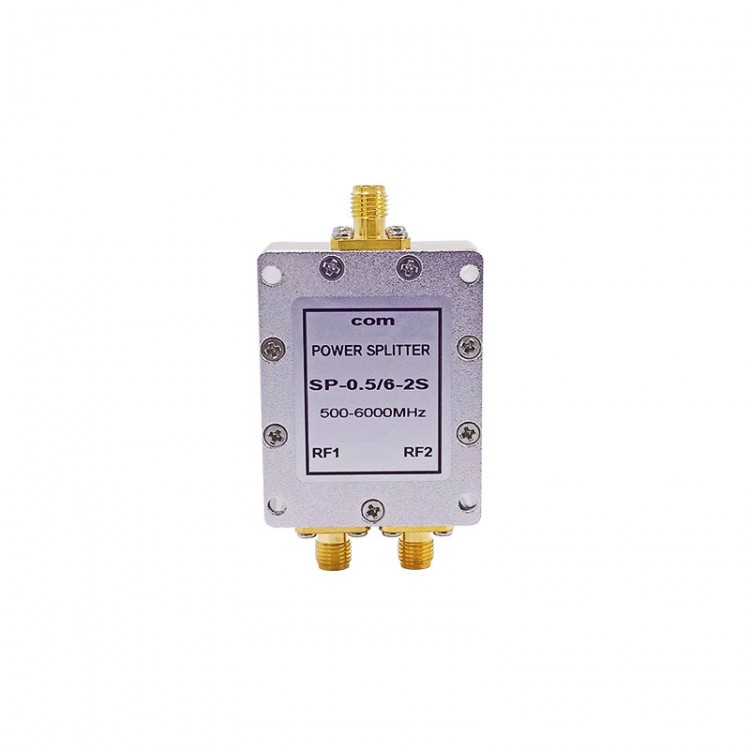

SP-0.5/6-2S 500-6000MHz Microstrip 2-Way Power Splitter RF Power Divider for GPS Satellite Signal
Features:
* Microstrip 2-way power divider with SMA connectors
* VSWR: ≤1.4
* Isolation: ≥18dB at 500-600MHz; ≥20dB at 600-6000MHz
* New upgraded version with high performance specs
Specifications:
* Frequency Range: 0.5-6GHz
* Insertion Loss (Including Power Split Ratio): ≤4.2dB
* Isolation: ≥18dB at 500-600MHz; ≥20dB at 600-6000MHz
* Input VSWR: ≤1.4:1
* Output VSWR: ≤1.3:1
* Phase Balance: ±5°
* Impedance: 50Ω
* Connector Type: SMA-K
* Operating Temperature: -35°C to 75°C

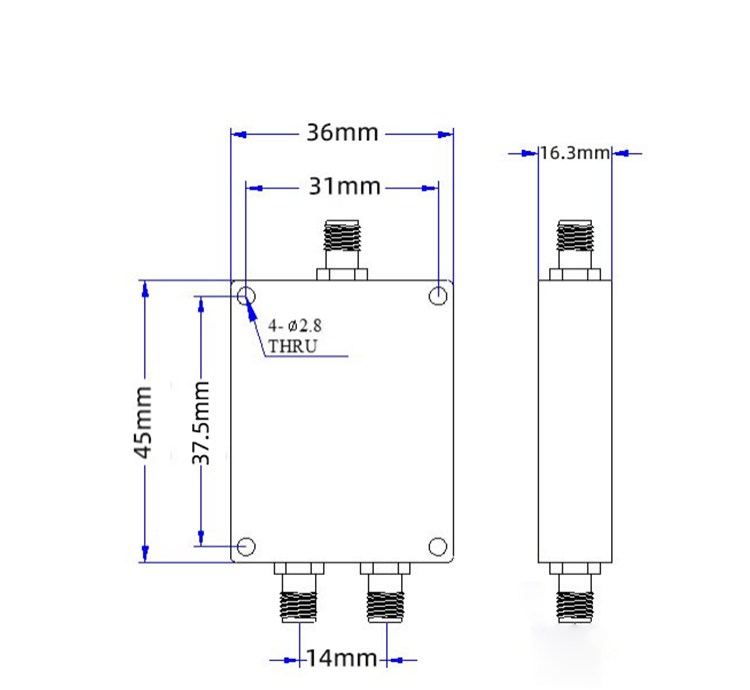

* Dimensions: 45 × 36 × 16.3mm
Application Scenarios:
* Ideal for situations where indoor GPS signal is weak but GPS testing or experimentation is required, such as positioning tests for electronic devices like smartphones and tablets.
* It can be used for GPS signal splitting, WiFi signal splitting, RF signal power distribution, and laboratory experiments.
Wide Range of Applications:
* Applicable to CDMA, LTE, WiFi (2.4GHz/5.8GHz), as well as L-band (1.0–2.0GHz) and S-band (2.0–4.0GHz) frequencies.
* Widely used in production and testing environments for wireless intercom systems, GPS, BeiDou (BD), and GLONASS satellite positioning and navigation devices.
Packing List:
* 1 x Power Divider
Packaging Details:
* Weight: 0.2kg
