| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $40.72 | $39.89 | $38.64 | $36.98 | Contact US |

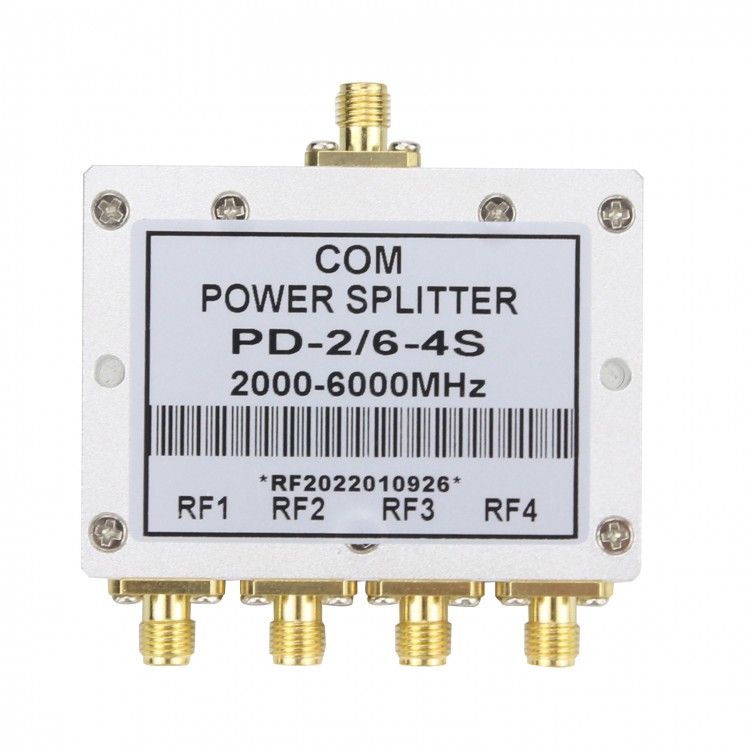

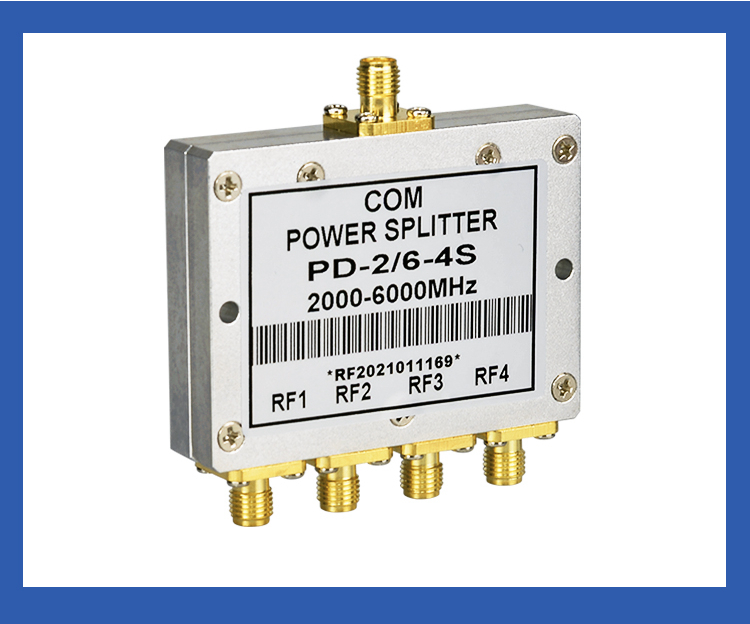

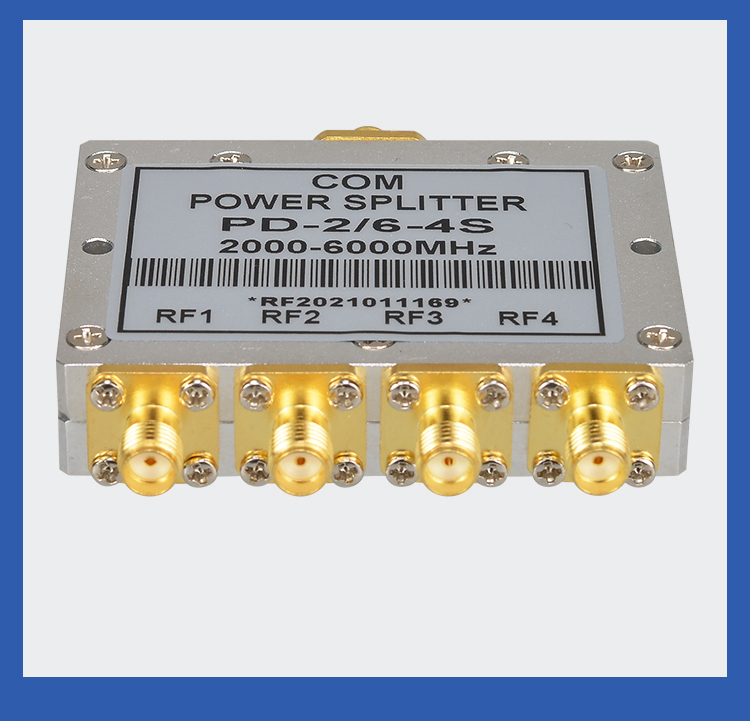

PD-2/6-4S 2000-6000MHz Microstrip 4-Way Power Splitter RF Power Divider with SMA-K Connectors
Features:
* Microstrip 4-way power splitter
* 2-6GHz power divider
* With SMA-K connectors
* Aluminum housing with sandblasted finish
Technical Parameters:
* Frequency range: 2-6GHz
* Insertion loss (including power split ratio): ≤7.0dB
* Isolation: ≥20dB
* Input VSWR: ≤1.4
* Output VSWR: ≤1.3
* Amplitude balance: ≤0.3dB
* Phase balance: ±5°
* Impedance: 50Ω
* Connector type: SMA-K
* Power capacity: Forward: 10W (Avg.) and 100W (Peak); Reverse: 2W (Avg.) and 30W (Peak)
* Operating temperature: -30 to 70°C

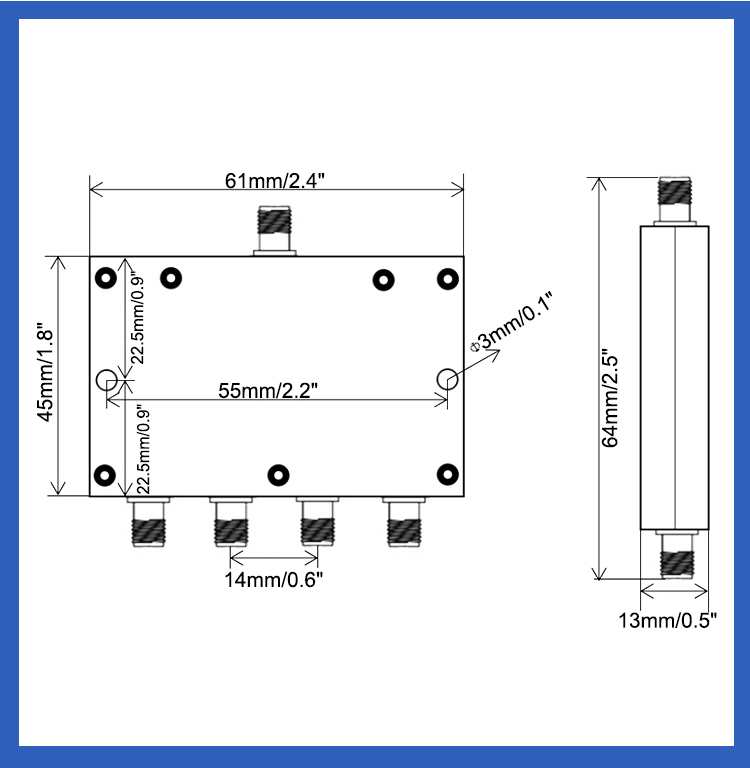

* Dimensions: 61 x 45 x 13mm/2.4 x 1.8 x 0.5"
Applications:
* It is suitable for scenarios where indoor GPS signals are weak but GPS functionality is still required for testing or experimentation—such as positioning tests for electronic devices like mobile phones and tablets. It can be used for GPS signal splitting, WiFi signal splitting, RF signal power distribution, and various laboratory experiments.
Packing List:
* 1 x Power Splitter
Packaging Details:
* Weight: 0.3kg
