FTX-1 10W Portable Radio:
- Including: main unit, built-in battery, handheld microphone.
- 6W portable field operation, using built-in battery.
- 10W field operation, using external power supply.

FTX-1C 100W Base Station Radio:
- Including: main unit, built-in battery, handheld microphone, power amplifier.
- 6W portable field operation, using built-in battery.
- 10W field operation, using external power supply.
- 100W fixed table operation, using external power supply.
- One machine dual form free switching, FTX-1C turns into FTX-1 by disassembling the amplifier and installing the battery.

Transmitting Power:
- FTX-1: 0.5-6W (0.5-1.5W AM) built-in battery; 0.5-10W (0.5-2.5W AM) external power supply
- FTX-1C:
  HF/50MHz: 5-100W (5-25W AM)
  144/430MHz: 5-50W (5-13W AM)

HF/50/144/430MHz Full Mode:
- From HF to UHF, with comprehensive analog/digital coverage, supporting SSB/CW/AM/FM/C4FM digital modes.

Broadband Reception:
- The reception frequency range is 30kHz~174MHz and 400~470MHz, which can be used for various purposes such as SWL, FM broadcasting, and aviation frequency band reception.

True Dual Band Reception:
- It has two independent receiving circuits, supporting simultaneous reception of frequencies in the same or different frequency bands, as well as simultaneous reception of C4FM/C4FM digital modes, and HF/V, HF/U, V/V, U/U simultaneous reception. (Does not support simultaneous reception of HF/HF)

Powerful RF Front-end Design:
- Equipped with a 10 band bandpass filter (BPF), an RF amplifier with excellent multi signal processing capability and low noise (NF) coefficient, achieving excellent intermodulation characteristics. Adopting the same high-resolution A/D converter and FPGA SDR circuit configuration as FTDX1O, ensuring excellent receiving performance.

Front 2-Channel Speakers:
- The FTX-1 host is equipped with two speakers of different diameters, which emit sound from the opening at the bottom of the front panel. This design allows the sound to be output from the front for high-quality and high volume audio effects. The FTX-1C has a large-sized high-quality speaker (diameter 66mm 2.5W) built into the top of the rear shell, ensuring sufficient volume during fixed table operation.

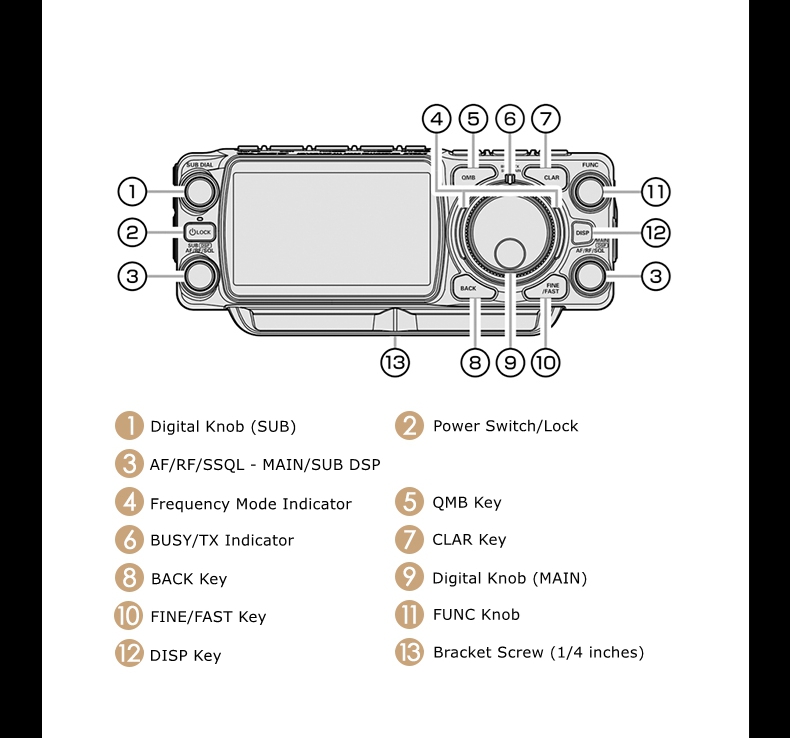

Large Color Touch Screen:
- The 4.3-inch high-resolution full-color TFT touch screen provides excellent visibility and operability, allowing for intuitive management of operating frequency, instrument, and main function settings.

3D Spectrum (3DSS):
- 3DSS real-time spectrum presents information within a frequency band in three-dimensional form, with the X-axis representing frequency, Y-axis representing signal strength, and Z-axis representing time. 3DSS display and waterfall display can be switched according to personal preferences.

Multifunctional Display:
- It can simultaneously display spectrum, oscilloscope, and AF-FFT. Three user interfaces (horizontal dual frequency display, single frequency display, vertical dual frequency display) can be switched freely.

FT8 Preset Mode Function:
- The optimal setting value for FT8 communication mode can be enabled by selecting PRESSET on the MODE interface and connecting a Type-C data cable to the computer to start FT8 operation.

QRP Mode:
- Equipped with QRP mode, allowing you to set the maximum transmit power to 5W on all frequency bands, which is useful for QRP competitions.

Super DX Function:
- The Super DX function can be activated in all modes and frequency bands except for C4FM digital mode, increasing the sensitivity of the RF amplifier when the received signal is weak, thereby expanding the communication range.

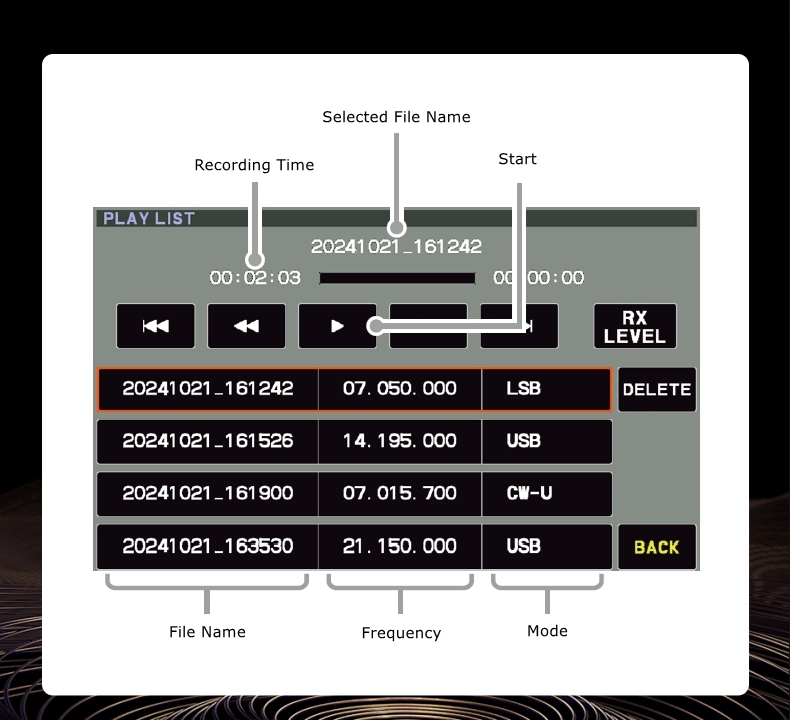

Recording Function:
- Supports receiving and transmitting recordings, recording files can be played on the radio or exported to other devices (requires a micro SD memory card)
- Receiving recording: It records the audio during reception. A single recording file supports a maximum of 3.5GB and can record up to 16h. When the limit is exceeded, the recording will automatically stop.
- Transmitting recording: It is used to record some commonly used transmission voice messages, which can record 5 voice messages, each lasting up to 90 seconds.

Micro SD Memory Card Function:
- Supports commercially available Micro SD/Micro SDHC memory cards ranging from 2GB to 32GB. When using the Micro SD memory card on the radio, the following operations can be performed:
  Record/play audio
  Backup radio station data
  Radio firmware upgrade
  Save screenshot

Built-in Automatic Antenna Tuner (for FTX-1C only):
- The built-in antenna tuner is used to match a 50ohms impedance antenna load to the transmitter terminal amplifier. The impedance adjustment range of the antenna tuner is 16.7Ω to 150Ω, and it can usually tune the SWR of HF amateur frequency band not higher than 3. When the SWR is less than 2 after tuning, it will be automatically saved.

Equipped with a Large Capacity Battery SBR-52LI:
- A detachable lithium-ion battery with a large capacity of 6400mAh, which can be charged using the body's DC interface and Type CPD interface, or the battery can be charged separately. It takes about 7 hours to fully charge. Battery life (6-6-48 duty cycle): 9 hours (HF SSB 6W); 8 hours (V/U FM 6W)

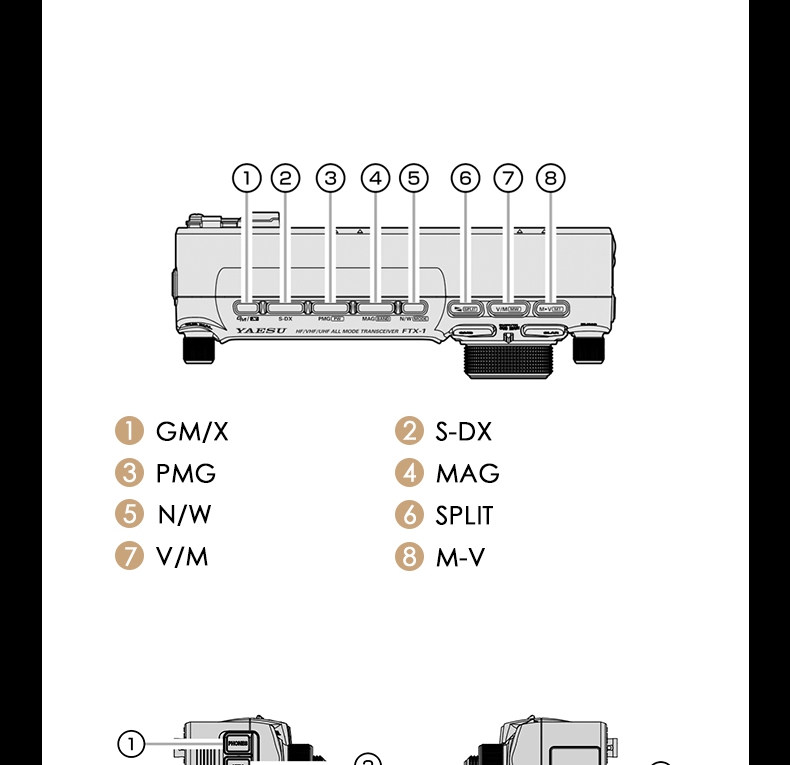

More Features:
- MAG (Memory Automatic Grouping)
- QMB (Quick Memory Bank)
- PMG (Primary Memory Group)
- AMS (Automatic Mode Selection)
- GM (Group Monitoring)
- APRS (Automatic Position Reporting System)
- WIRES-X (Wide Area Internet Relay Enhancement System)

Specification:
- Model: FTX-1/FTX-1C
- Frequency range:
  Receiving: 30kHz - 174MHz, 400 - 470MHz
  Transmitting: 1.8 - 450MHz (amateur band only)
- Circuit type: direct sampling superheterodyne
- Working modes: CW, AM, SSB, FM, C4FM
- Power supply voltage: DC 10.8V (built-in battery); DC 13.8V ±15% (external power supply)
- Current consumption:
  Receiving: 0.6A (no signal); 0.9A (with signal)
  Transmitting: 2.5A (FTX-1, 6W); 3A (FTX-1, 10W); 21A (FTX-1C, 100W)
- Working temperature: -10℃ to 50℃

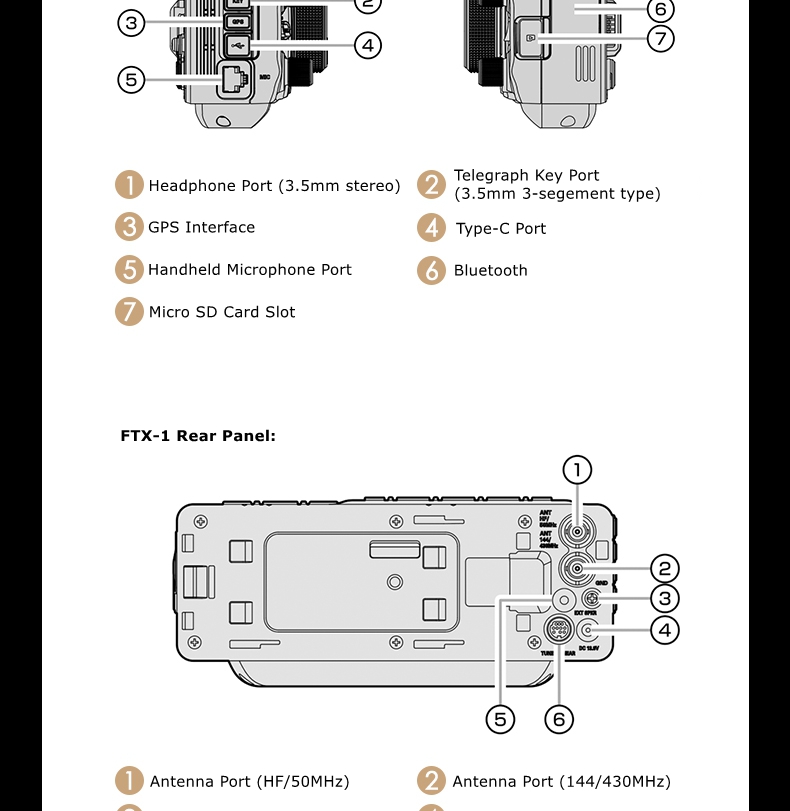

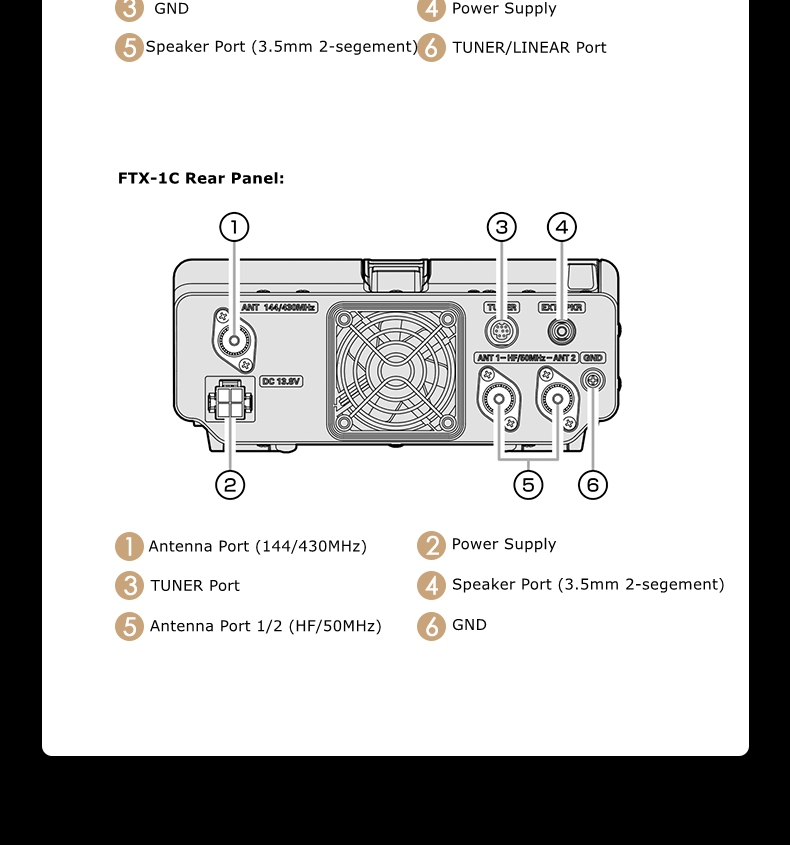

- Antenna interface: BNC female connector (FTX-1); M-type female connector (FTX-1C)
- Antenna impedance: 50ohms
- Net weight: 1.25kg for FTX-1; 3.9kg for FTX-1C
- Product size: 213 x 89 x 55mm for FTX-1; 213 x 89 x 240mm(FTX-1C)

Package Included:
- 1 x Shortwave Radio
