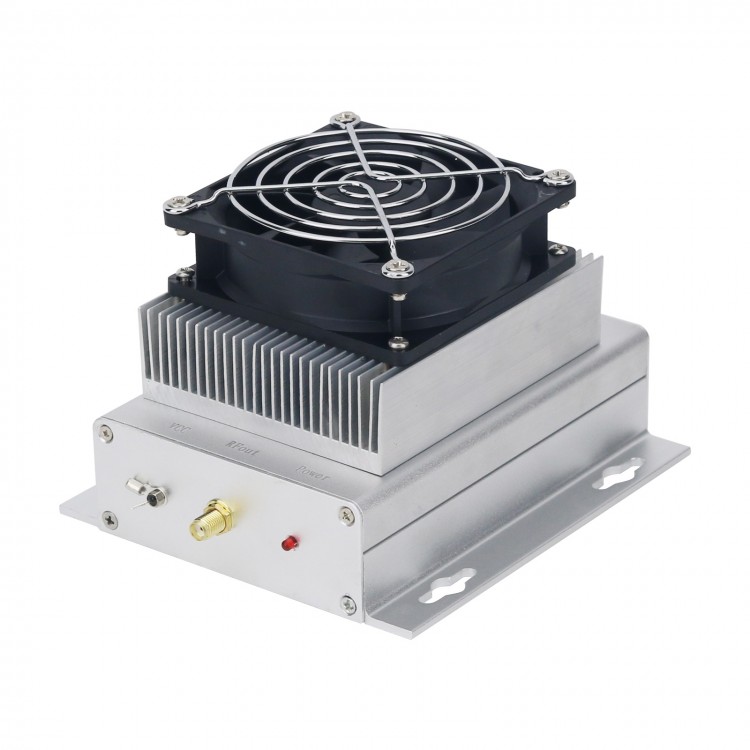

1-200MHz 25W RF Power Amp Broadband RF Power Amplifier with Intelligent Temperature Control Fan
Technical Parameters:
1) Working frequency: 1-200MHz
2) Working voltage: 46-56V
3) Working current: 1.2A
4) Amplification gain: 32-35dB
5) Output power: 25W (typical), maximum 35W, at input 15dBm
6) Work efficiency: 55%
7) Connector form: SMA female connector
8) Dimensions: 103 x 105 x 75mm/4.1 x 4.1 x 3" (without the size of connectors)
9) Product weight: 650g/1.4lb
Connection:
1) RFin: signal input (signal to be amplified)
2) RFout: signal output (output after signal amplification)
3) VCC: The positive terminal of the power supply (powered by feed-through capacitor)
4) GND: The negative pole of the power supply (Cable lug and shielding shell)
5) LED: Power supply indicator
6) Fan: intelligent temperature control fan
Package Included:
- 1 x RF Power Amplifier
