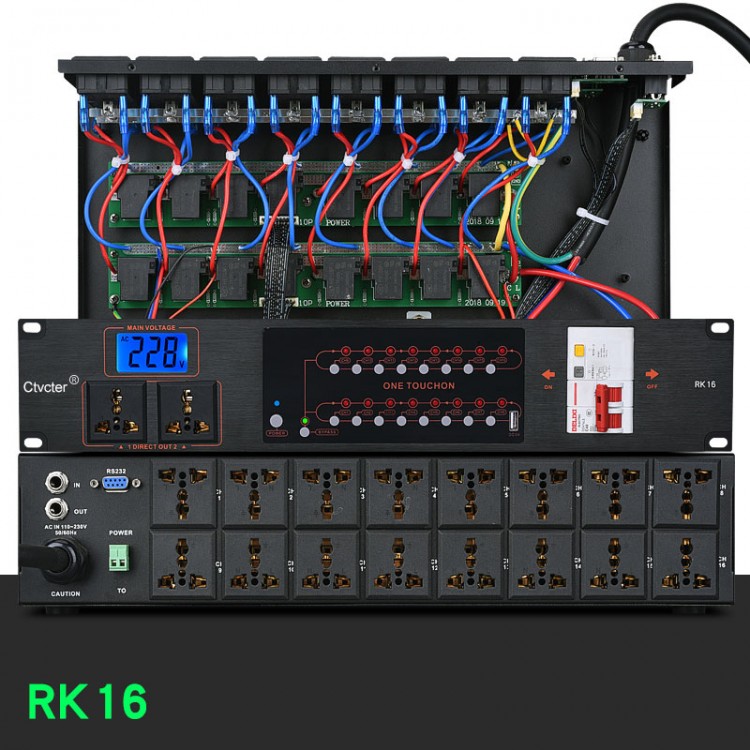

Ctvcter RK16 16CH Power Sequencer Power Supply Sequencer Designed with RS232 Central Control System

Ctvcter RK16 16CH Power Sequencer Power Supply Sequencer Designed with RS232 Central Control System

Features:
Intelligent power sequencer, the safety guardian of speakers
- With regulated power supply switch.

Voltage display
- The front panel display shows the operating voltage in real time.

Universal phosphor copper socket
- Made of flame-retardant ABS and phosphor copper, it can withstand up to 13A current. Easy to use the standard universal sockets.

Multiple protections
- Voltage protection: When the voltage exceeds 260V, it will not start. When the voltage exceeds 260V, it will automatically trip.
- Current protection: When the current exceeds 35A, it will automatically trip.
- Short circuit protection: Automatic protection in the event of a short circuit.
- Overload protection: Prevent excessive power and under-load.
- Over-current protection: Prevent instantaneous high current and burning out your equipment.
- Voltage regulation protection: prevent battery from over-temperature and power discharge.
- Over-discharge protection: Prevent battery from being over-discharged.
- Over-voltage protection: Prevent battery voltage from being too high.

16 independent switch buttons + LED indicator lights
- The front panel has 16 independent switches. A red light indicates that the channel is working, which is convenient for operation.

32A air switch
- It prevents current overload. When the current exceeds 60A, it will automatically cut off the current flow in order to protect valuable equipment such as speakers.

Cascade connection
- It supports cascade sequence control of multiple machines, cascade automatic detection of equipment, and overall management.

Compatibility
- Compatible with 99.9% of professional equipment on the market. With 16+2CH power supply outputs. It uses universal sockets and ensures that it is safe to use.

Control equipment to turn on/off in an orderly manner
- Because the instantaneous current impact when the audio equipment is turned on and off is very large, allowing the front-end and amplifier equipment to turn on and off in a reasonable and orderly manner can reduce the impact of current on the equipment.

Delayed power on and off, no manual operation required
- The power sequencer is capable of starting the power supply in a sequential sequence from front-end devices to amplifier. When the power supply is turned off, the electrical equipment is turned off in the order from amplifier to front-end devices. In this way, it can effectively and uniformly manage and control all kinds of electrical equipment, avoiding human error operation. At the same time, it can reduce the impact of electrical equipment on the power supply grid at the moment of switching, ensuring the stability of the entire power consumption system. Action of each channel is delayed by 1 second.

Unified control of equipment through a computer
- With RS232 computer central control system connection port. When it is connected to a computer, the interval/timing time of each switch is 1 second by default. The time can be set freely via the software.

Product Details:
- Switching power supply module: The module with small size and strong explosive force.
- Stable 30A relay: Working output of each channel can reach 10A (2KW). It has fast action and stable work.
- Stable air switch: As long as the current in the circuit exceeds the rated current, it will automatically disconnect in order to effectively protect equipment such as speakers.
- Standard three-pin plug: 3*4 square millimeter cable avoids the risk of heating, softening, fire and other risks caused by excessive input current.

Specifications:
- Brand: Ctvcter
- Model: RK16
- Type: 16-way power sequencer
- Performance characteristics: with voltage display
- Switch buttons: 16 independent switch buttons
- Functional interface: with RS232 central control system code interface
- Panel color: Black aluminum alloy panel
- Power input: AC200-240V 50-60Hz two-phase (three wires: zero line, live wire and ground wire)
- Number of channels: 16-way universal socket relay is controlled and 2 direct output sockets
- Maximum single-channel power endurance of relay controlled output/total power (reactive power): 1000W/6000W
- Output power socket specifications: Standard American sockets made from flame retardant ABS material and phosphor copper material that can withstand a maximum current of 10A
- The interval/timer time between power-on and power-off of each channel: 1 second by default
- Output relay contact current: 30A 277VAC
- Circuit board specifications: double-sided fiberboard and the main power supply wiring is thickened
- Power supply: built-in square transformer. Applicable voltage AC200-240V 50-60HZ
- Main cable specification: 3*4 square millimeter cable, total length of 2 meters (with power input plug)
- Opening type: Push-button tactile switch
- Single-channel independent switch: support independent control of the panel
- Voltage display meter type: Red digital tube display voltmeter
- Cascade function: With
- Short-circuit & over-current protection and circuit breaker configuration: Circuit breaker with zero line and live wire control, leakage current protection In 30MA/T ≤0.1s, and over-current protection (40A short-circuit protection)
- Product size: 480 x 280 x 90mm/18.9 x 11 x 3.5"

Functions:
1. Turn on in order and turn off in reverse order
2. The by-pass button can be used for all the channels at the same time
3. Cascade connection and external control
4. Accurate voltage display
5. Leakage protection and over-current protection
6. The panel channel is closed independently

Package Included:
- 1 x Set of Power Sequencer

Packaging Details:
- Packaging size: 540 x 405 x 160mm (LxWxH)
- G.W.: 6.7kg
