Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $38.50 | $37.72 | $36.54 | $34.97 | Contact US |

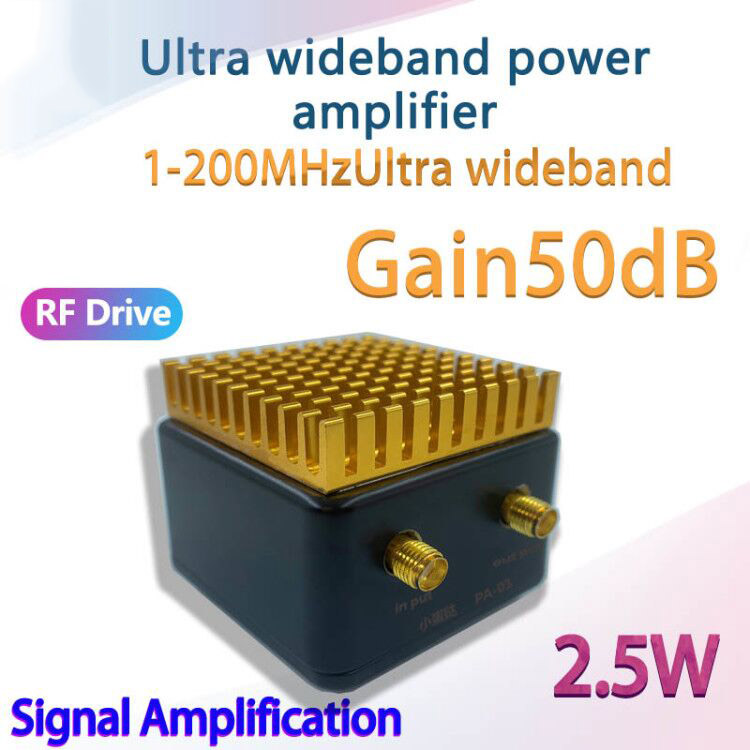

1-200MHz Wideband Linear Power Amplifier Amp Drive Amplifier 50dB Adjustable Gain
Applications:
It is mainly used in various RF and high frequency signal amplification circuits. This amplifier is a linear amp, which can be suitable for various signals such as single frequency sine wave, FM, AM, FSK, ASK, SSB and other radio frequency and high frequency signals. It increases signal power and extends transmission distance. It can also be used as a driver amplifier to drive the final stage power amplifier. It is widely used in various scientific research and experiments.
Specifications:
- Frequency Range: 1-200MHz
- Maximum Output Power: 3W
- Working Voltage: 12-15V
- Working Current: 0.5A
- Maximum Input Level: -7dBm
- Maximum Gain: 50dB
- Size: 5 x 5 x 4.5cm
- Weight: 80g
Results of Power Tests:
- 1M, 0.2W
- 5M, 2.2W
- 10M, 2.3W
- 15M, 2.3W
- 20M, 2.3W
- 30M, 2.5W
- 50M, 2.5W
- 75M, 2.3W
- 100M, 2.2W
- 150M, 2.1W
- 180M, 2.0W
Package Included:
- 1 x Linear Power Amplifier
