YK-HA400 Bipolar Linear High Voltage Amplifier 30X-100X Adjustable PZT Drive Supersonic Power Amplification 400Vpp

Availability: In stock, usually dispatched in 1 business day

  • Price:$909.67
  • Price in reward points: 9097 Reward Points: 91
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $891.48 $873.28 $845.99 $809.61 Contact US
Quantity:

YK-HA400 Bipolar Linear High Voltage Amplifier 30X-100X Adjustable PZT Drive Supersonic Power Amplification 400Vpp

Description:

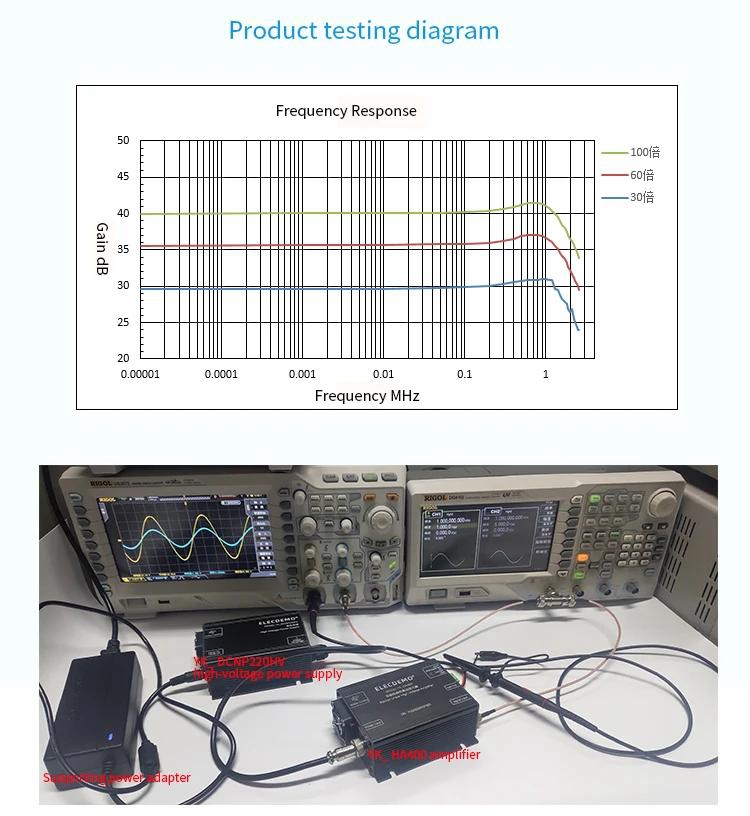

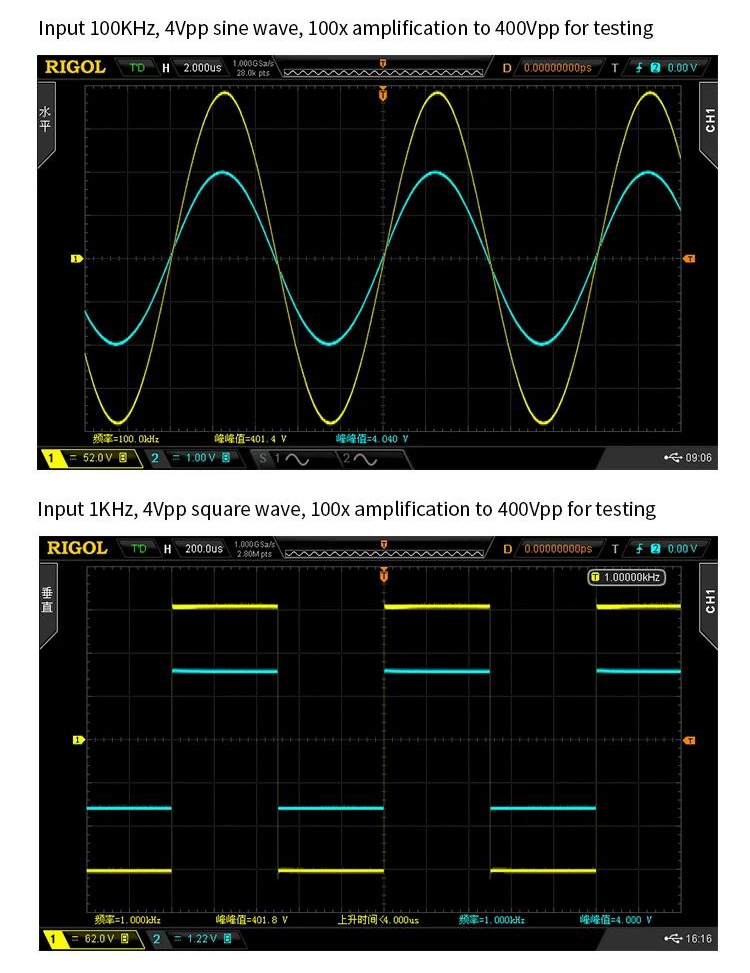

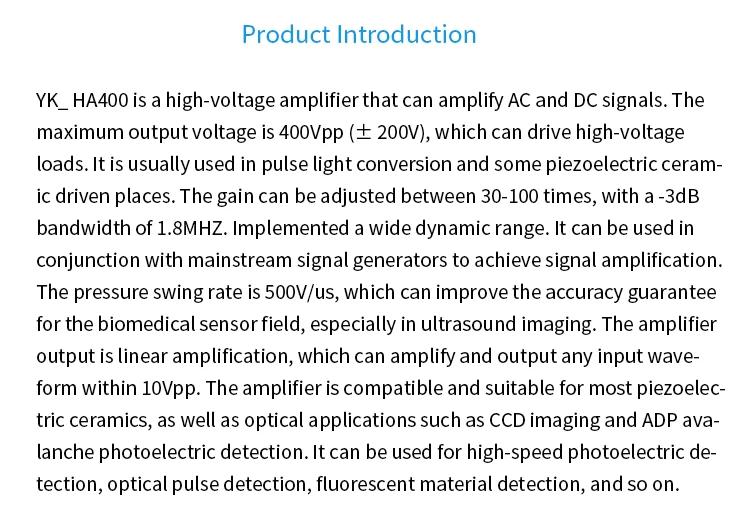

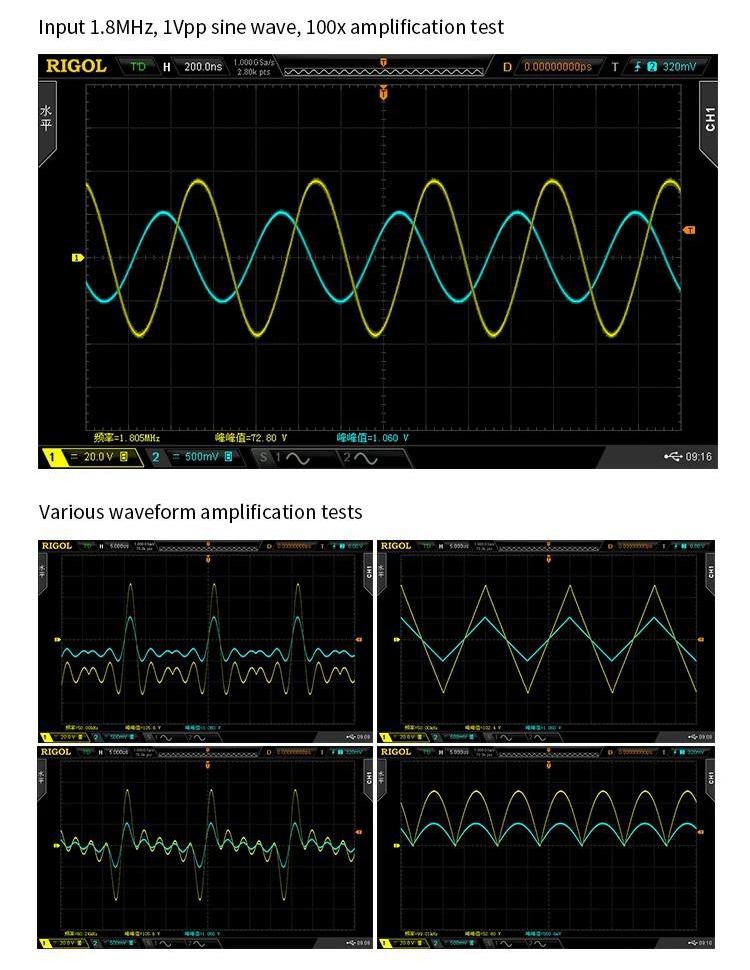

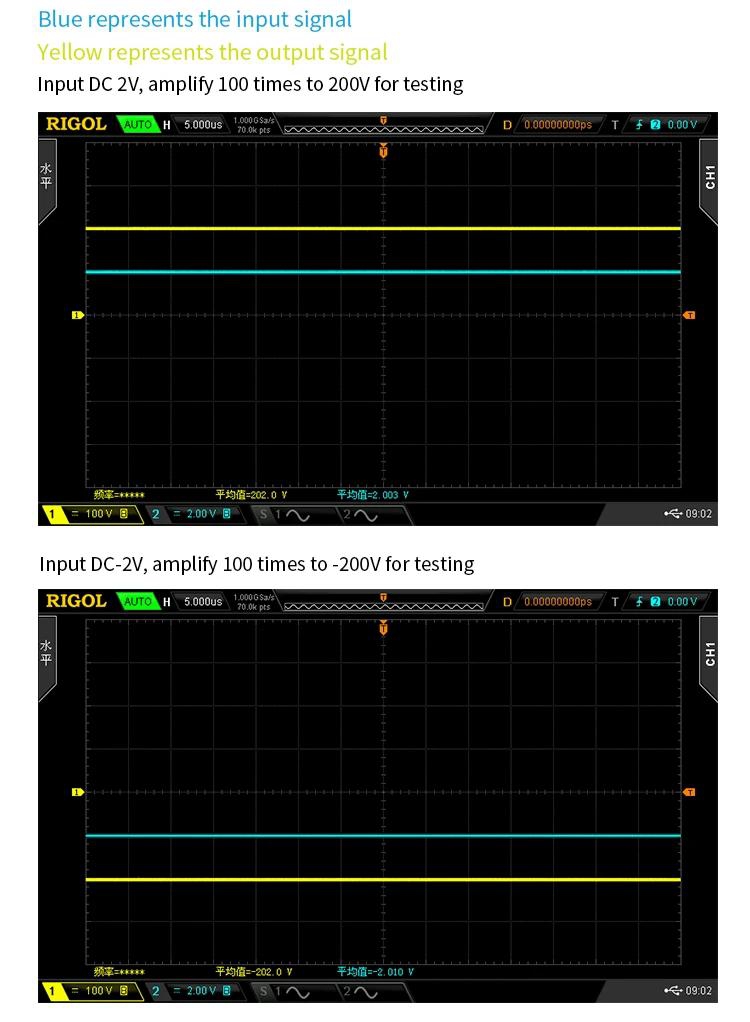

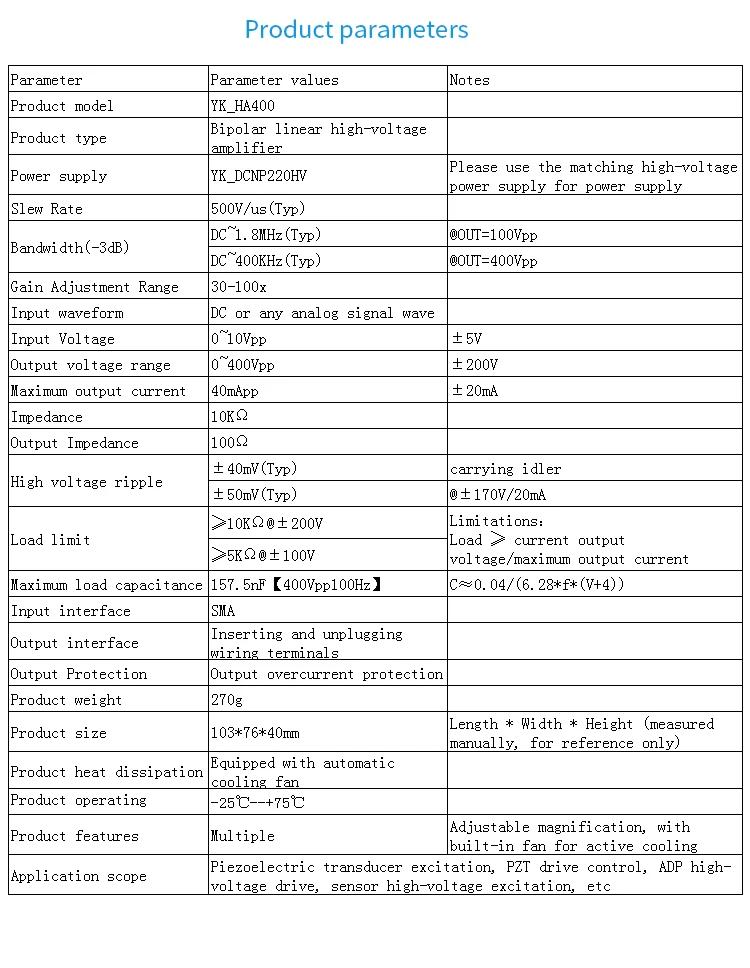

- YK_HA400 is a high-voltage amplifier that can amplify AC and DC signals. The maximum output voltage is 400Vpp (±200V), which can drive high-voltage loads. It is usually used in pulse light conversion and some piezoelectric ceramic driven places. The gain can be adjusted between 30-100 times, with a -3dB bandwidth of 1.8MHZ. Implemented a wide dynamic range. It can be used in conjunction with mainstream signal generators to achieve signal amplification. The pressure swing rate is 500V/us, which can improve the accuracy guarantee for the biomedical sensor field, especially in ultrasound imaging. The amplifier output is linear amplification, which can amplify and output any input waveform within 10Vpp. The amplifier is compatible and suitable for most piezoelectric ceramics, as well as optical applications such as CCD imaging and ADP avalanche photoelectric detection. It can be used for high-speed photoelectric detection, optical pulse detection, fluorescent material detection, and so on.

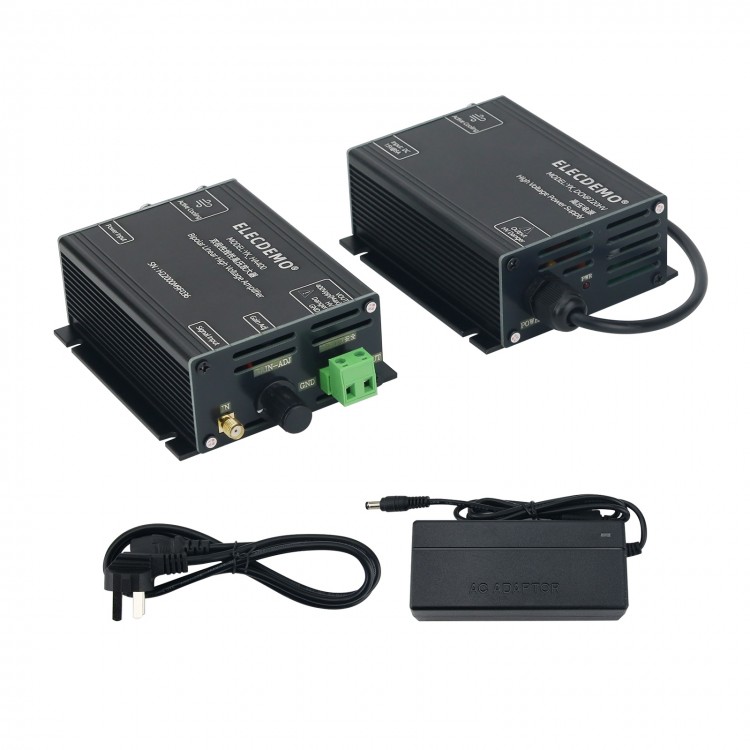

Package Included:
- 1 x Amplifier

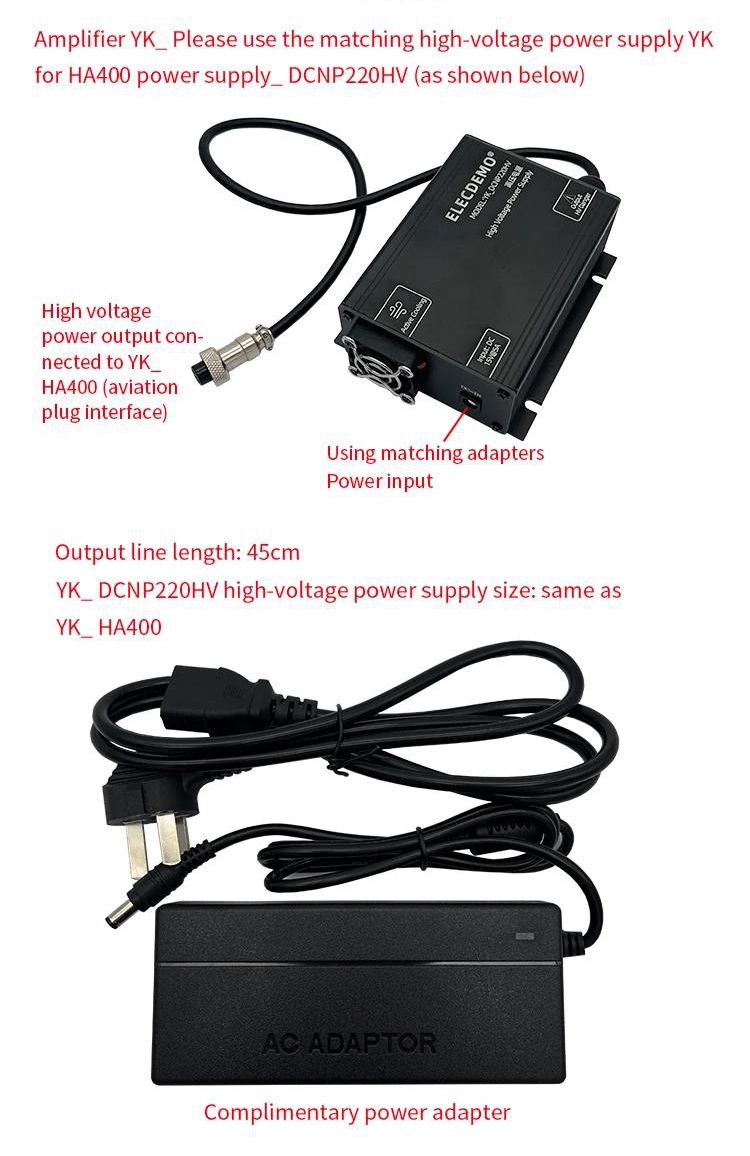

- 1 x High Voltage Power Supply
- 1 x Power Adapter
