100BT1-NBT 100BASE-T1 Media Converter - NETbrige+ (with NETbrige+ Inferface) to RJ45 Ethernet

100BT1-NBT 100BASE-T1 Media Converter - NETbrige+ (with NETbrige+ Inferface) to RJ45 Ethernet

Description:
This module is used for physical layer bidirectional data conversion between the vehicle two-wire Ethernet 100baseT1 interface and the standard Ethernet RJ45.

Features:
1. Using tja1100 automotive Ethernet PHY chip for NXP, with excellent performance and good anti-interference. It can communicate with branded automotive Ethernet chips such as for Broadcom, Marvell and TI
2. This product is compact and lightweight. The dimensions are 103.2 x 71 x 26.5cm/4.1 x 2.8 x 1" (LxWxH). The housing is made of a strong and lightweight aluminum alloy.
3. Its power supply chip adopts original TPS54620 for TI. It boasts wide input voltage, stable operation and small ripple.
4. It can be powered by TYPE C and DC power supply. Users can use a standard 5.5mm DC power adapter, or use the USB interface of computer and mobile phone charger to directly supply power.
5. The measured transmission distance is about 15m/49.2ft, the stable rate is 940MB/s, and there is no packet loss.

Specifications:
- Conversion protocol: 00BASE-T1 two-wire automotive Ethernet / 100BASE-T RJ45 standard Ethernet
- 100BASE-T1 connection indicator: The indicator will light up after 100BASE-T1 is connected
- 100BASE-T1 data indicator: The indicator will flash after the 100BASE-T1 signal passes
- Multi-function indicator: signal quality: green - excellent signal; red - weak signal (indicates the status of the connection). Waiting for connection: The green light flashes periodically. Disconnected: red light stays on
- 100BASE-T RJ45 indicator: green light stays on: 100BASE-T connected. Flashing yellow light: Data passed
- Adaptive master-slave mode: The converter automatically adjusts to the corresponding master-slave mode according to the target device
- One-key manual master-slave mode: For the convenience of debugging, the manual mode is retained, and the master-slave switch does not need to be reset
- Input voltage: 4.5-17V (default 12Vdc)
- Power supply mode: USB TYPE C (mobile phone charger and computer) / DC power supply
- Shell material: aluminum alloy
- Weight: 130g/0.3lb
- Size: 103.2 x 71 x 26.5cm/4.1 x 2.8 x 1" (LxWxH)
- Interface: NETBrige+ for Amphenol

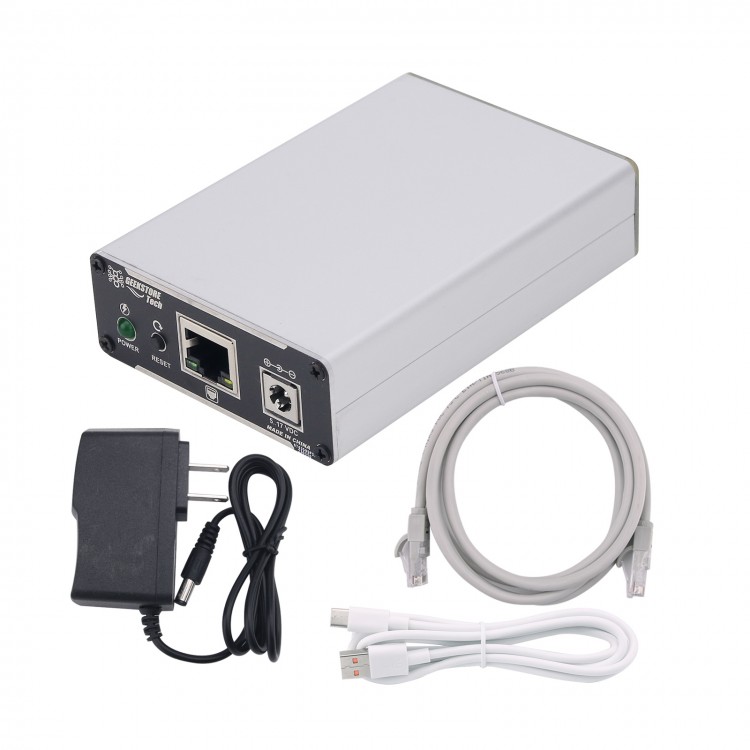

Package Included:
- 1 x 100BASE-T1 Media Converter
- 1 x 12V DC Power Adapter
- 1 x Type C Power Cable
- 1 x 1.5m/4.9ft Network Cable
