| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $37.15 | $36.39 | $35.26 | $33.74 | Contact US |

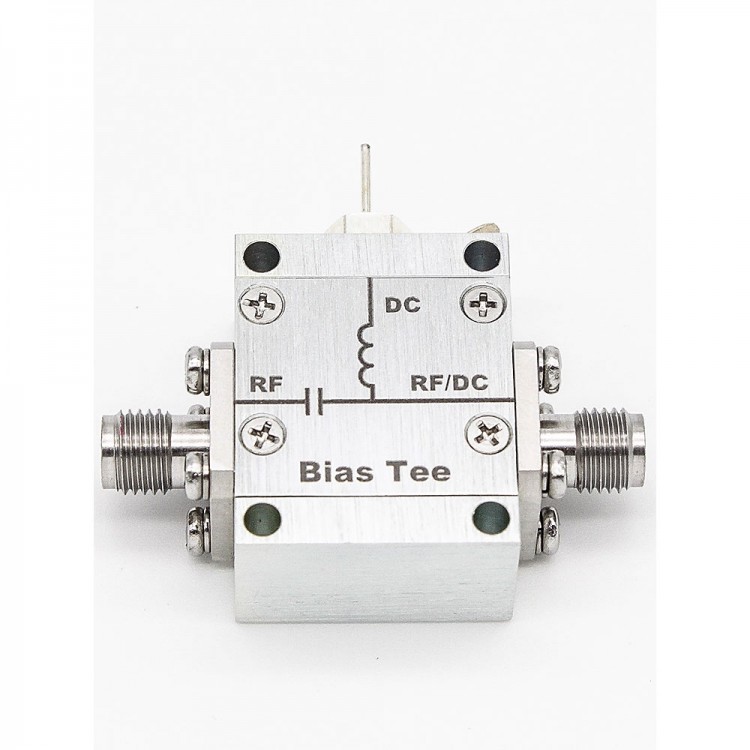

100kHz-1.0GHz 2A High Current Bias Tee 50ohms 50V RF DC Block with Stainless Steel RF-SMA Female to RF/DC-SMA Female Connector
Specification:
- Impedance: 50ohms
- Frequency range: 100kHz - 1.0GHz
- Insertion loss: 0.5dB (max)
- SWR: <1.2
- Maximum DC isolation voltage: 50V
- Maximum RF power: 1W
- Current: 2A (max)
- RF-DC isolation: ≥30dB
- DC terminal - RF+DC terminal DC resistor < 0.5ohms
- Temperature range: -40℃ to 80℃
- Connector: RF-SMA female, RF/DC-SMA female
Package Included:
- 1 x Bias Tee
