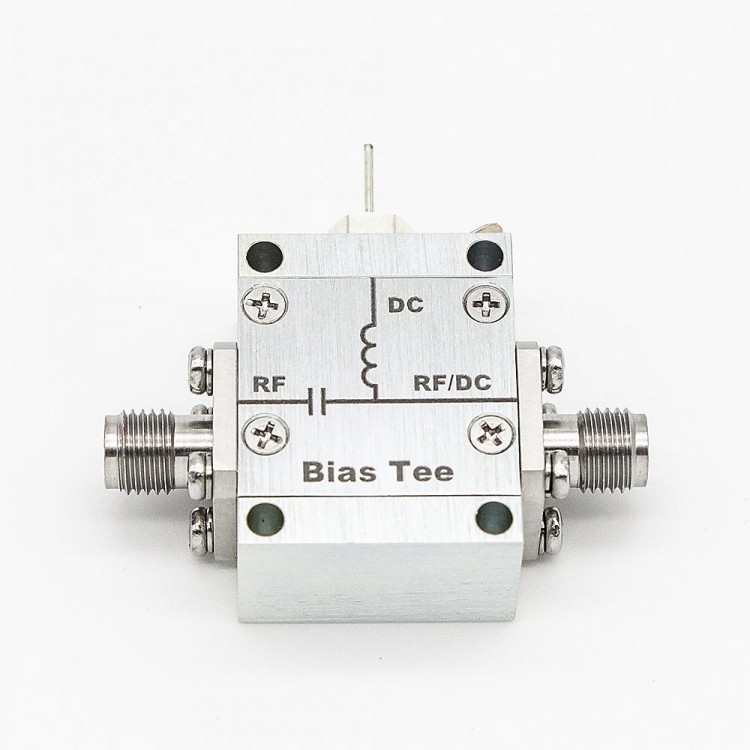

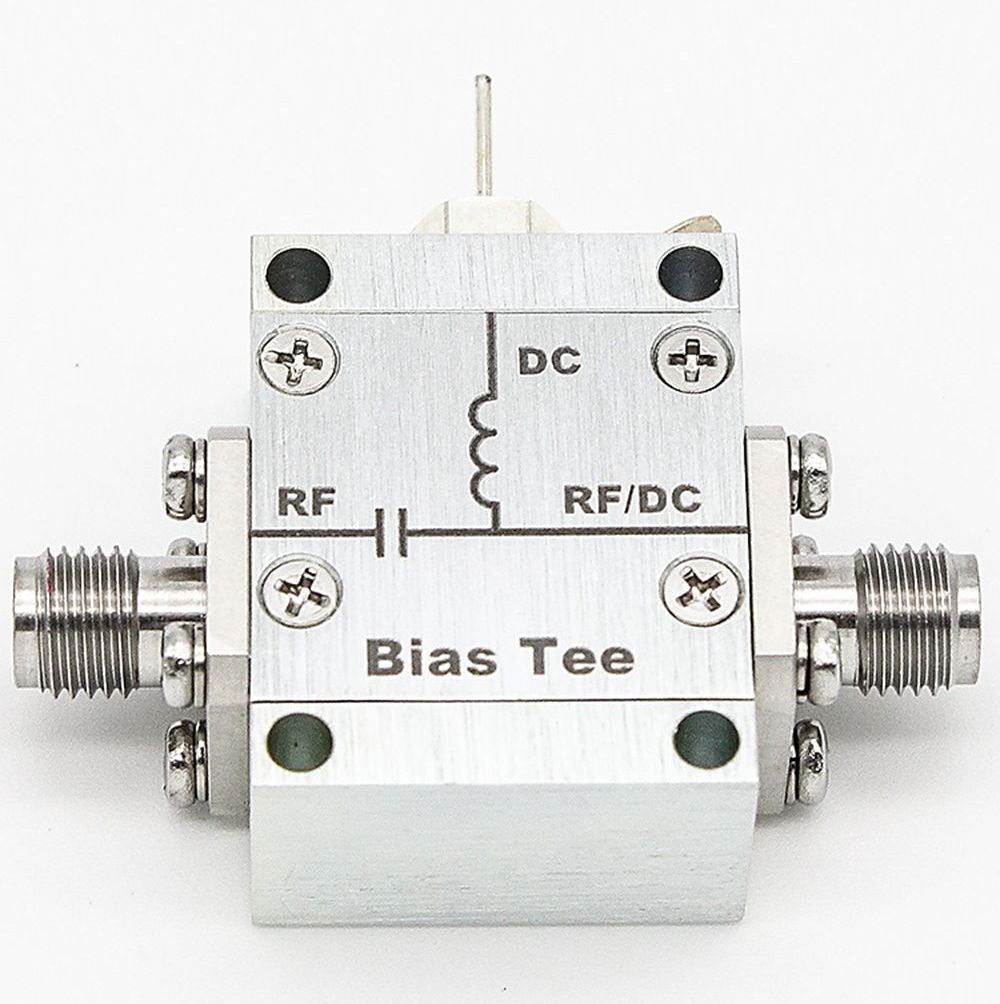

0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with Stainless Steel SMA Female to Female Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.08
  • Price in reward points: 321 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.44 $30.80 $29.83 $28.55 Contact US
Quantity:
Buy it now Add cart

You might like

  • $0.00
  • $0.00
  • $0.00
100kHz-1.0GHz 2A High Current Bias Tee 50ohms 50V RF DC Block with Stainless Steel RF-SMA Female to RF/DC-SMA Female Connector

100kHz-1.0GHz 2A High Current Bias Tee 50ohms 50V RF DC Block with Stainless Steel RF-SMA Female to RF/DC-SMA Female Connector

$37.91

(0)
Stainless Steel Connector 0.01-6GHz RF Bias Tee 2A High Current DC Block with SMA Female Connector

Stainless Steel Connector 0.01-6GHz RF Bias Tee 2A High Current DC Block with SMA Female Connector

$37.91

(0)
0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

$28.19

(0)
0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Male Connector

0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Male Connector

$28.19

(0)
0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Male to Female Connector

0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Male to Female Connector

$28.19

(0)
0.01-8GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

0.01-8GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with SMA Female to Female Connector

$43.74

(0)
RF-Power-Meter-V8.0 40GHz Ultra-wide Band Microwave RF Power Meter TFT Display Screen with Type-C Cable

RF-Power-Meter-V8.0 40GHz Ultra-wide Band Microwave RF Power Meter TFT Display Screen with Type-C Cable

$193.60

(0)
100kHz-1.0GHz 2A High Current Bias Tee 50ohms 50V RF DC Block with Gold-plated RF-SMA Female to RF/DC-SMA Female Connector

100kHz-1.0GHz 2A High Current Bias Tee 50ohms 50V RF DC Block with Gold-plated RF-SMA Female to RF/DC-SMA Female Connector

$34.02

(0)

0.01-4.2GHz 50ohms DC Bias Tee RF Feedback High Current DC Block with Stainless Steel SMA Female to Female Connector

Specification:
- Impedance: 50ohms
- Frequency response: 0.01 - 4.2GHz
- Insertion loss: 1dB (max)
- SWR: <1.2
- Maximum DC block voltage: 50V
- Maximum RF power: 2W
- Current: 2A (max)
- RF-DC isolation: ≥30dB
- Temperature range: -40℃ to 80℃
- Connector: SMA female to female connector

Package Included:
- 1 x Bias Tee
