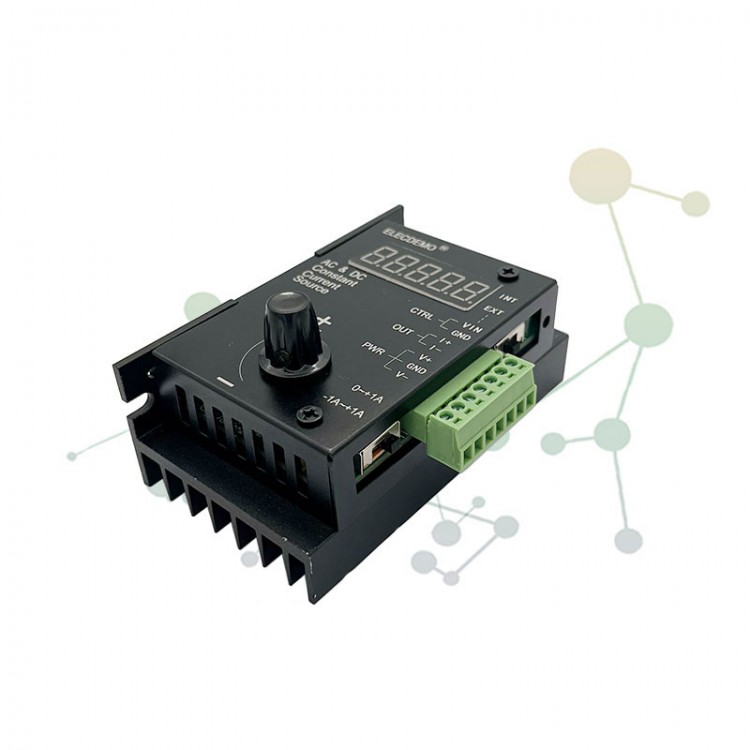

KW-BPVCCS0100 Positive and Negative 100mA AC and DC Adjustable Voltage-control Constant Current Source

KW-BPVCCS0100 Positive and Negative 100mA AC and DC Adjustable Voltage-controlled Constant Current Source

Description:
- KW-BPVCCS0100 is compatible with ±5V~±30V (dual power supply) and +5V~+30V (single power supply) power supply, with reverse power supply protection and output current display. Use the knob to adjust the output current or external input voltage control, input 1V corresponds to output 20mA. AC current can be output. It is suitable for laser, LED constant current drive and sensor excitation control, etc.

Parameter:
- Module model: KW-BPVCCS0100
- Module type: Voltage Controlled Constant Current Source
- Supply voltage: ±5V~±30V (dual power supply); +5V~+30V (single power supply); The module is compatible with single power supply and dual power supply
- Static power: 60mA (TYP)

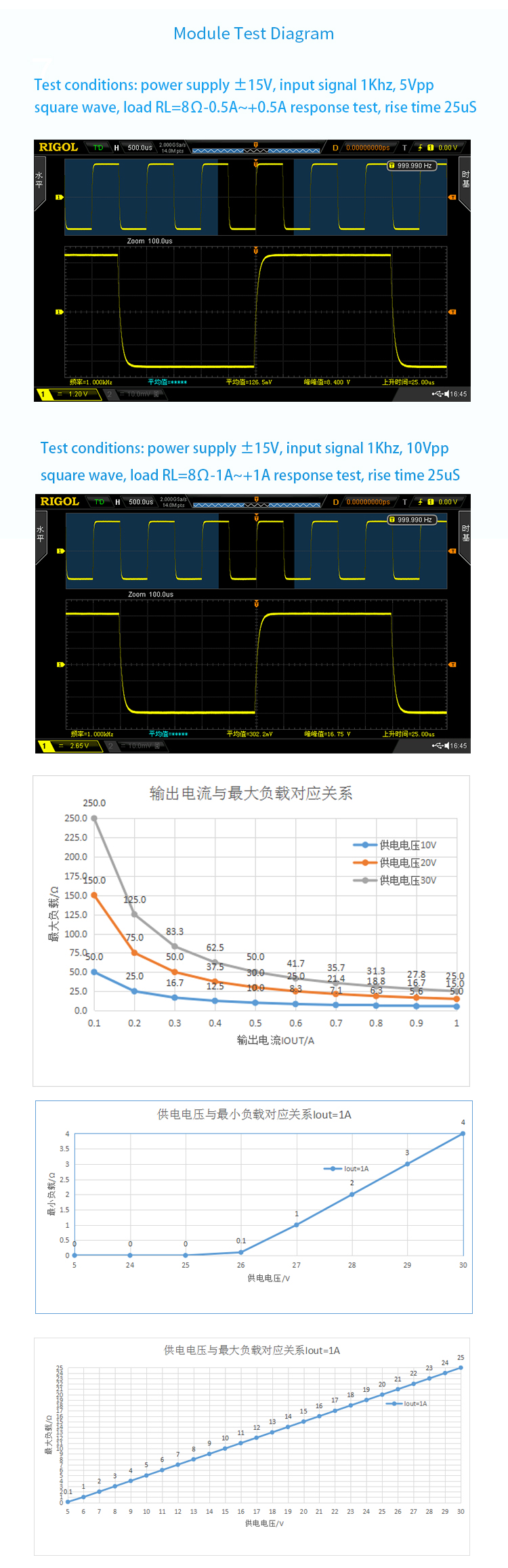

- Module bandwidth: 100KHz at RL=8Ω
- Current response speed: 3.5uS: ±100mA at RL=8Ω
- Input resistance: 500KΩ

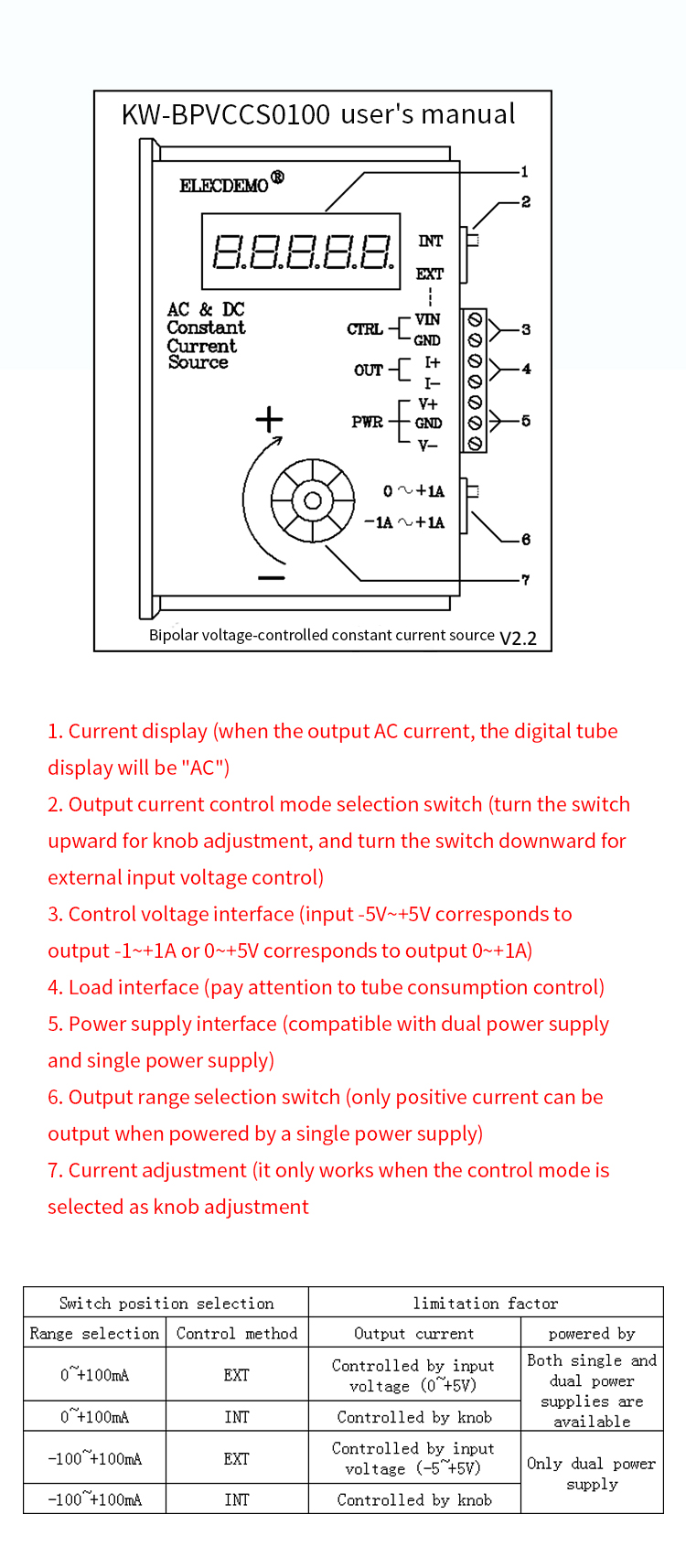

- Current control method: Module Knob Control or external input voltage control
- Input voltage control range: -5V~+5V or 0~+5V
- Output current: -100mA~+100mA; 0~+100mA; Switching (cannot output negative current when powered by a single power supply)
- load range: 250Ω at 100mA
- Load Regulation: 1%
- Display resolution: 0.1mA; The module displays "AC" when outputting AC current
- Module protection: Power supply reverse polarity protection
- Module Features: various; With output current display, compatible with single power supply and dual power supply. The output current range is adjustable
- Module application: various; Coil drive, laser constant current drive, LED constant current drive, sensor constant current drive, excitation signal supply, etc.
- Module weight: 135g

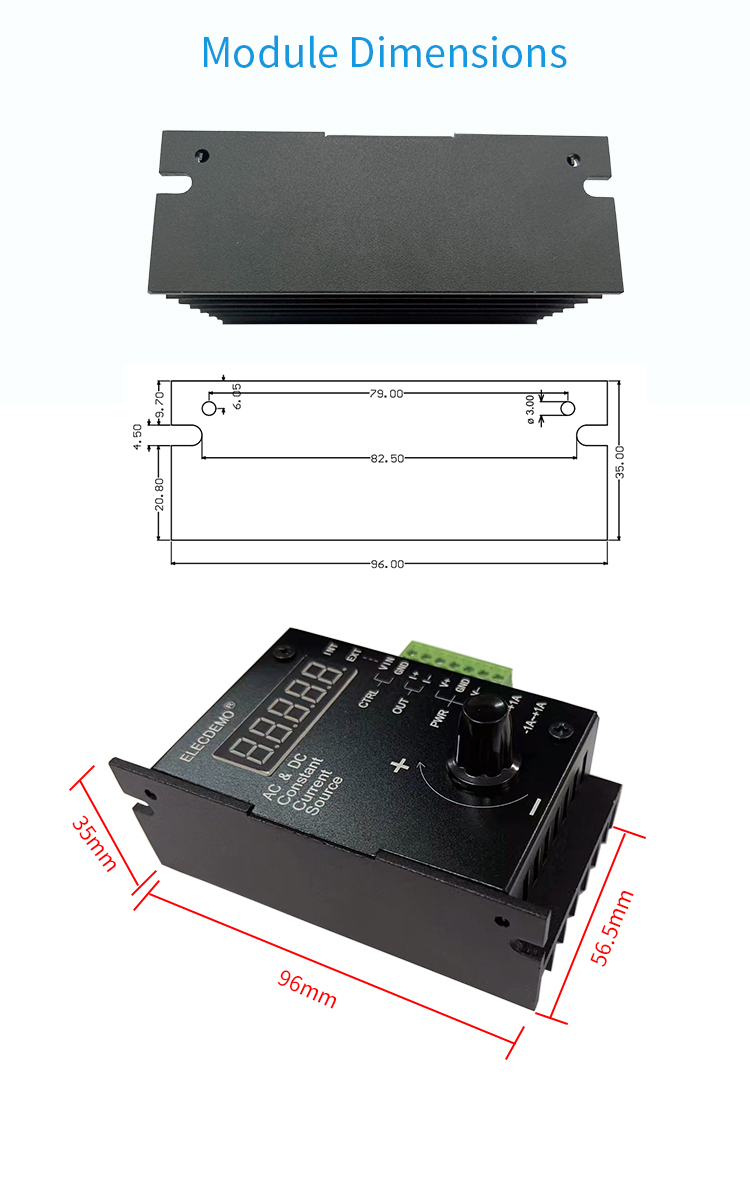

- Module size: 56.5 x 96 x 35; L×W×H(mm)

Precautions for the use of modules:
- The power consumption of the module is large, and the power supply needs to have a certain margin. It is recommended to use a power supply with a current driving capacity that is more than 1.5 times the required output current.
- In order to avoid unnecessary interference, it is recommended to use a linear power supply for power supply, and an electrolytic capacitor above 50V/470uF can be connected in parallel at the input end, and the power supply cannot exceed plus or minus 30V
- It is recommended to use a good wire for the output signal to observe the effect. Poor contact or poor-quality wire may cause signal attenuation or excessive noise.
- It is recommended to use low-resistance wires for power output, otherwise it may cause excessive line loss and unstable power output.
- Due to the large power consumption and heat generation, please pay attention to ventilation and heat dissipation or increase active heat dissipation when working with high power for a long time.
- The module is a constant current source; it is recommended to confirm the output power and amplitude before loading to avoid damage to the module or load.

FAQ:
Q: How to connect the module with single power supply and dual power supply?
A: When a single power supply is used, V- does not need to be connected, V+ is connected to the positive power supply, and GND is connected to the negative power supply; when the dual power supply is used, V+, V-, and GND are respectively connected to the positive, negative, and ground of the power supply.

Q: Why can't the output reach 100mA when the load is connected to a resistance of 250 ohms?
A: It is recommended to increase the power supply voltage. When the power supply is 30V, the 250Ω load can output a maximum of 100mA.

Q: Can the module directly drive the coil?
A: The module can drive the coil.

Q: Can the module input square wave or pulse?
A: The module can input square wave or pulse, but the frequency must be within the module bandwidth, and the module is compatible with DC input.

Q: Why is the input sine wave output a square wave?
A: Maybe the load resistance is too large, or the power supply voltage is not enough. The load can be reduced and the supply voltage can be increased.

Q: Can it output AC constant current?
A: When the module is powered by positive and negative dual power supplies, it can output AC constant current.

Package Included:
- 1 x KW-BPVCCS0100 Voltage Controlled Constant Current Source
