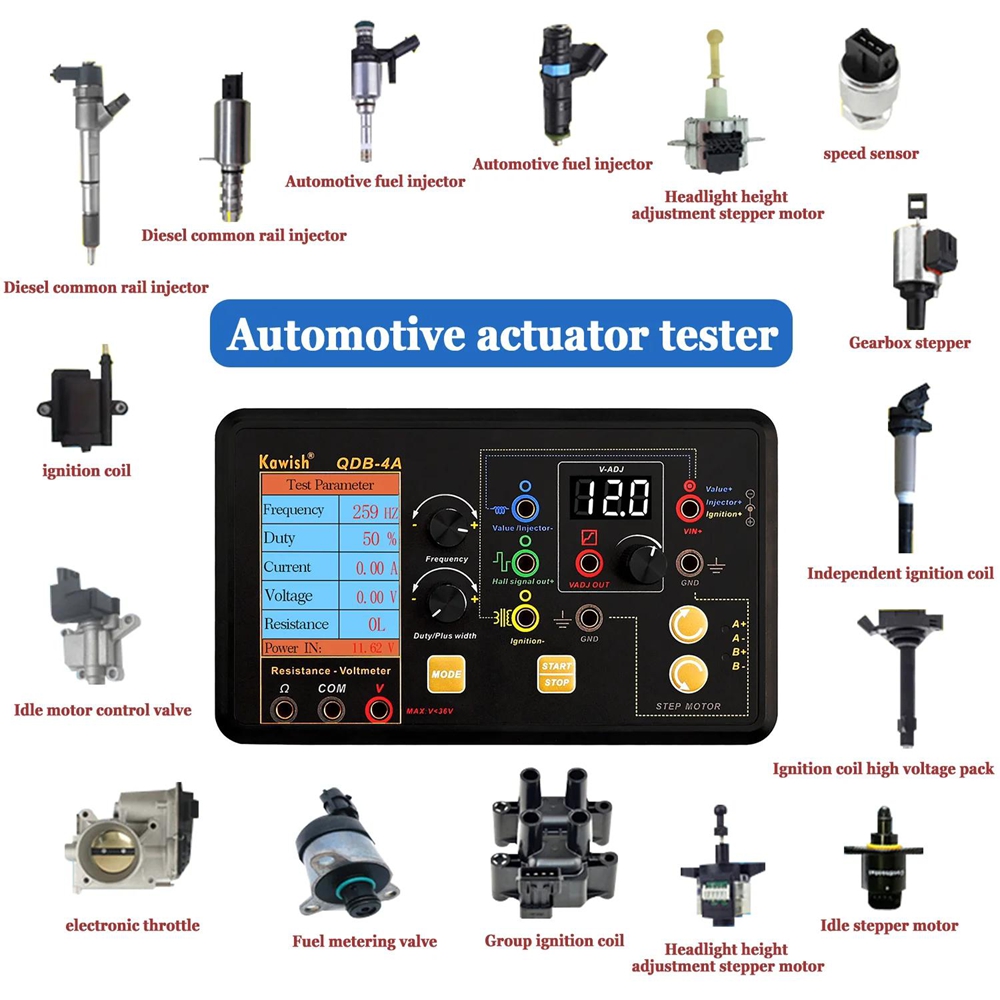

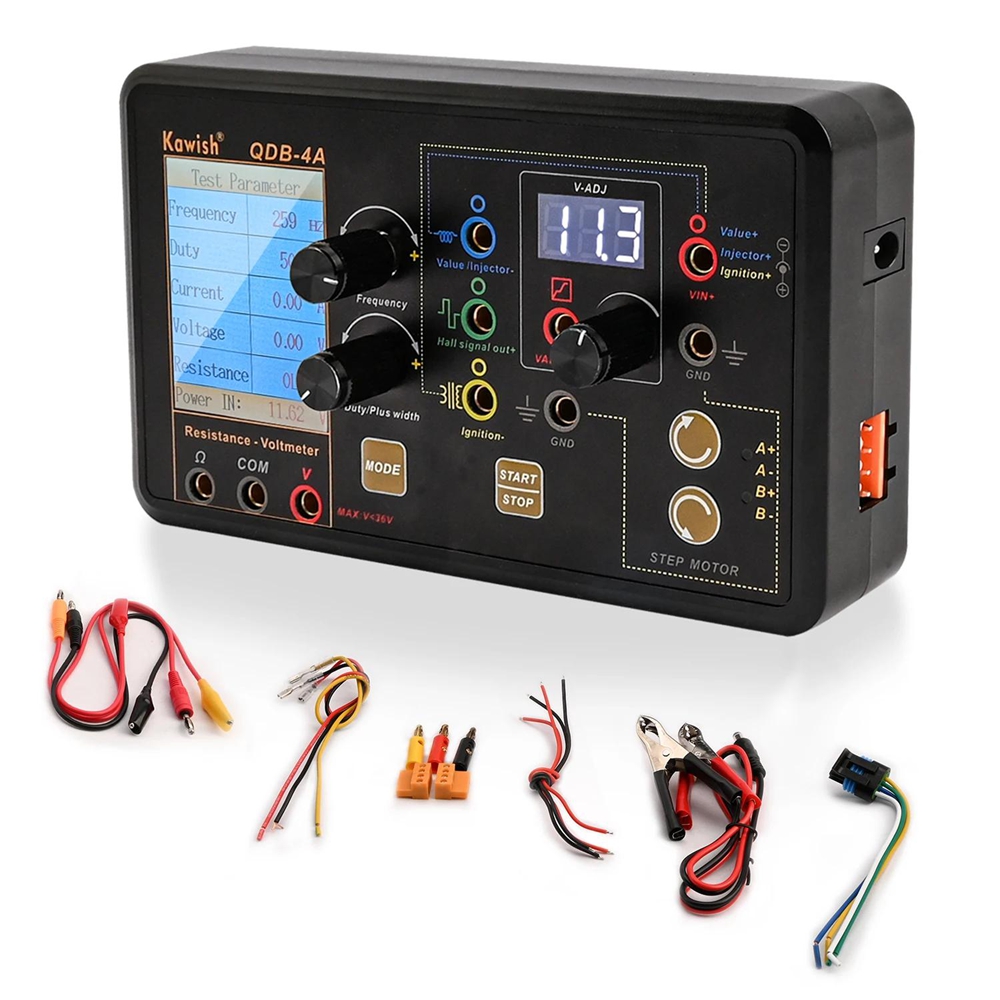

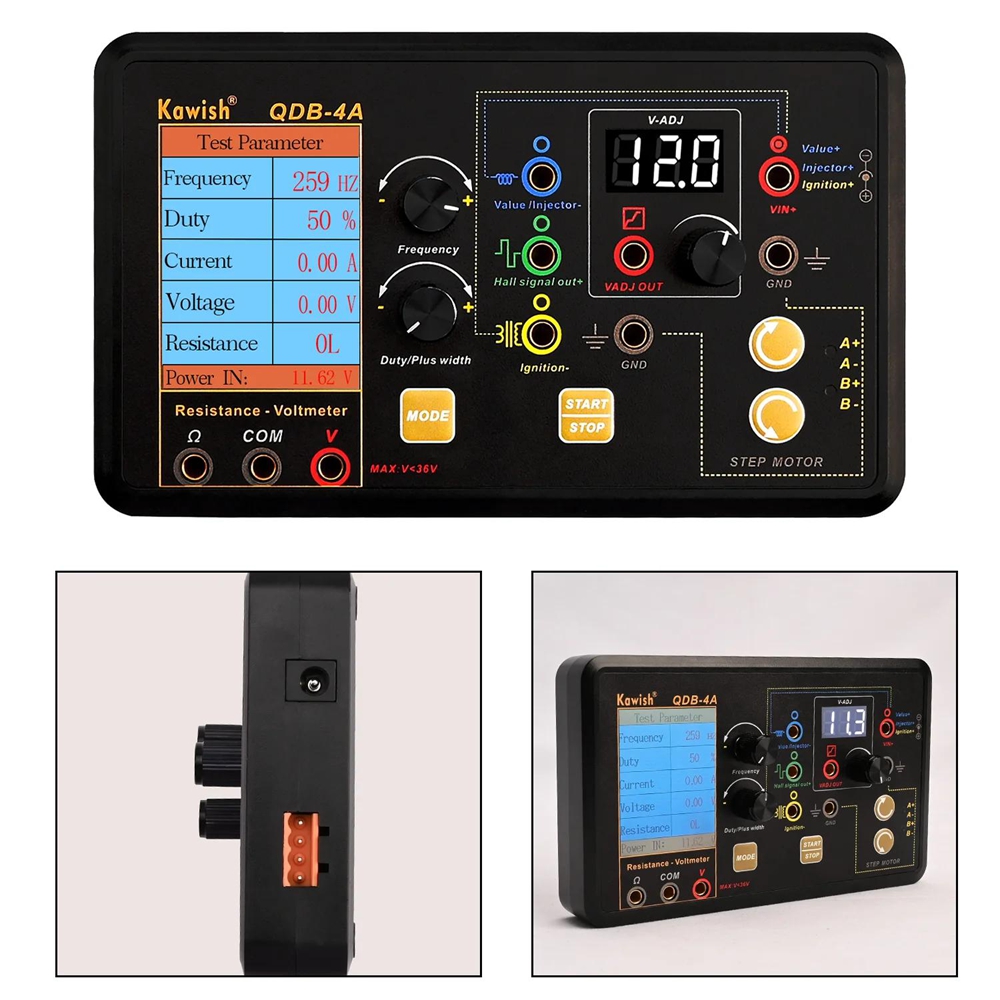

QDB-4A Automotive Ignition Coil Tester Injector Solenoid Valve Idling Stepper Motor Instrument Fault Detector
Main Functions:
- Drive test ignition coil: including independent ignition, coil type, module type.
- Drive test fuel injector: including gasoline-powered car 12V fuel injector, diesel vehicle 12V 24V fuel injector.
- Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
- Drive and test motors controlled by various duty ratios, urea pump motors, etc.
- Drive and test idle stepping motors, instrument stepping motors, headlight follow-up steering stepping motor and so on.
- Hall signal with adjustable output frequency, amplitude and duty ratio. Used to simulate various duty cycle sensors, such as air conditioning pressure sensor (duty cycle type), air flowmeter(duty cycle type), etc.
- Power supply voltage range: 12V-24V, with reverse connection protection, overcurrent protection.
- Electromagnetic coil driving current range: 0-3.5A
- Output frequency range: 1Hz-100kHz
- Duty cycle adjustment: 1%-100%
- Adjustable voltage: 1.25V-11.5V

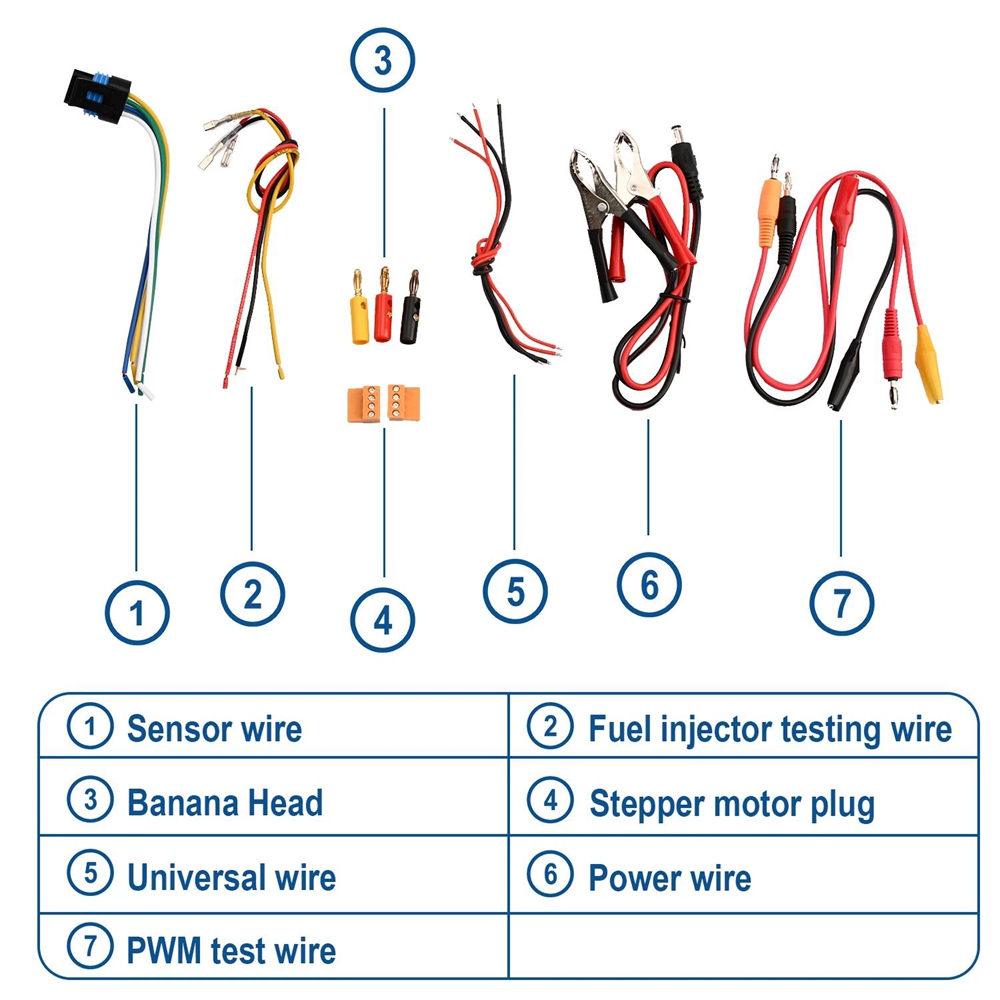

Package Included:
- 1 x Automotive Ignition Coil Tester
- 1 x Power Cable
- 3 x Testing Connection Cable
- 4 x Single Plugs
- 1 x Idle Speed Stepper Motor Plug
- 1 x Stepper Motor Welding Cable
