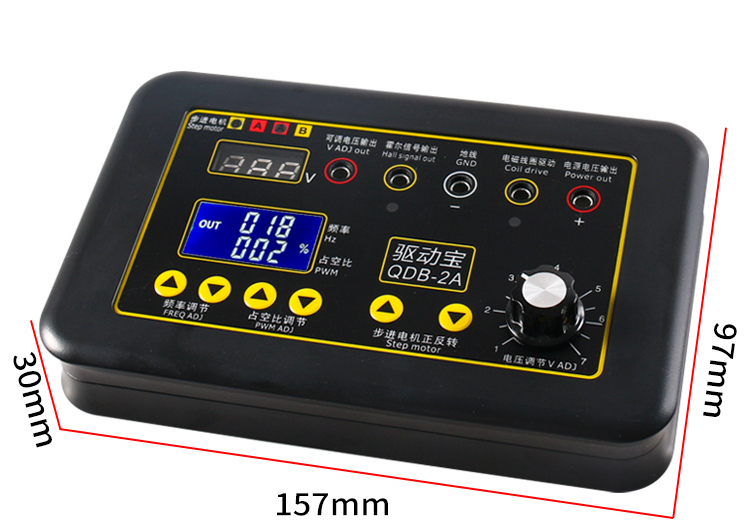

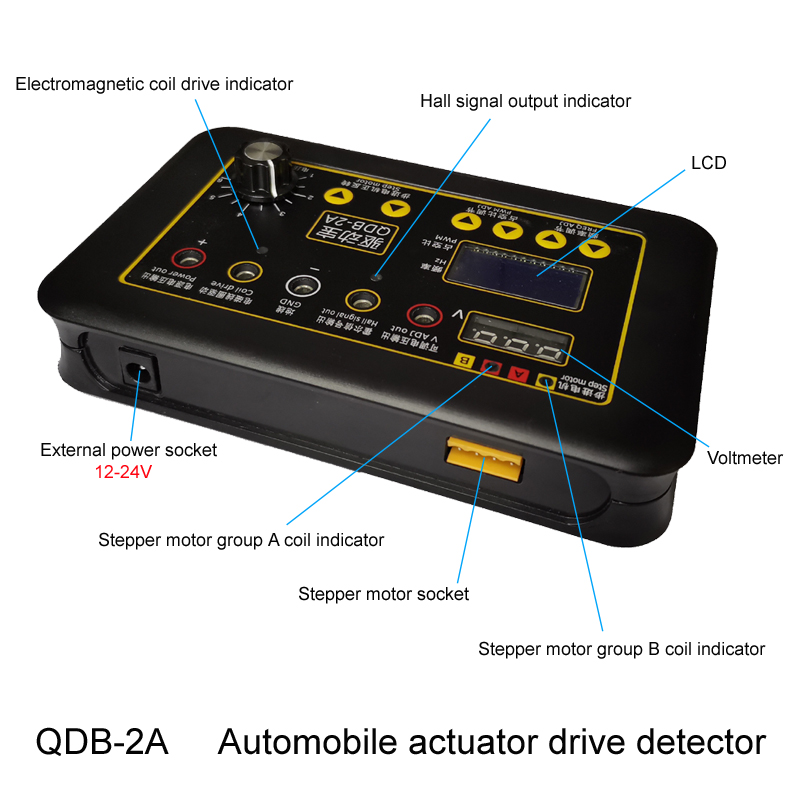

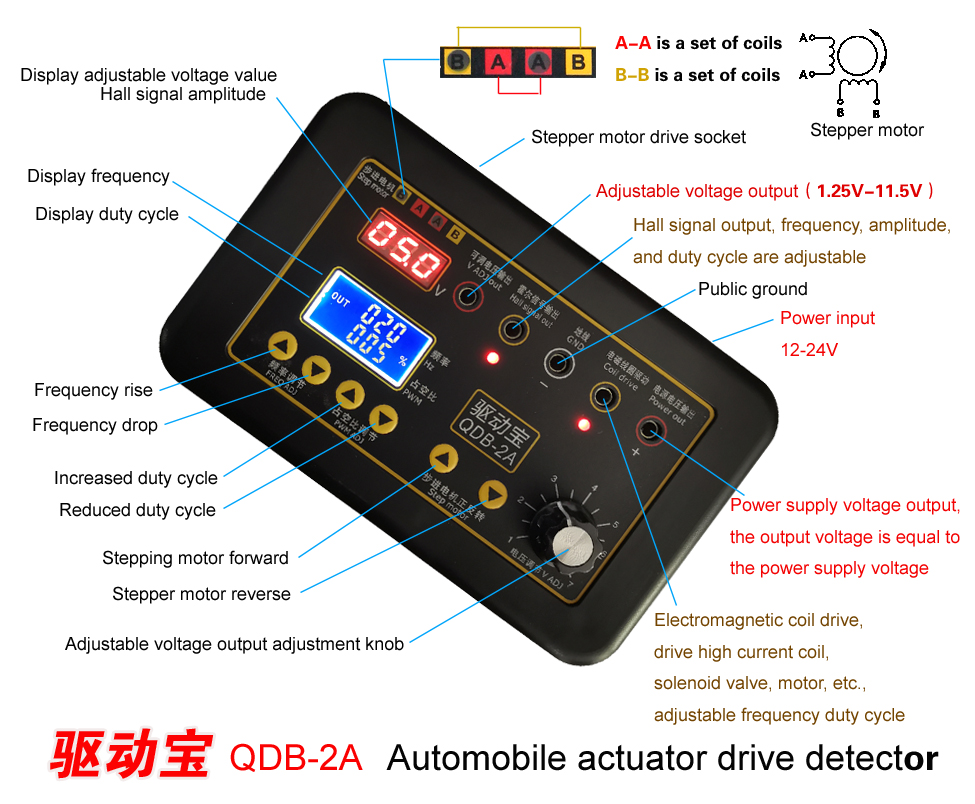

QDB-2A Car Actuator Fault Detector For Ignition Coil Injector Solenoid Valve Idling Stepper Motor

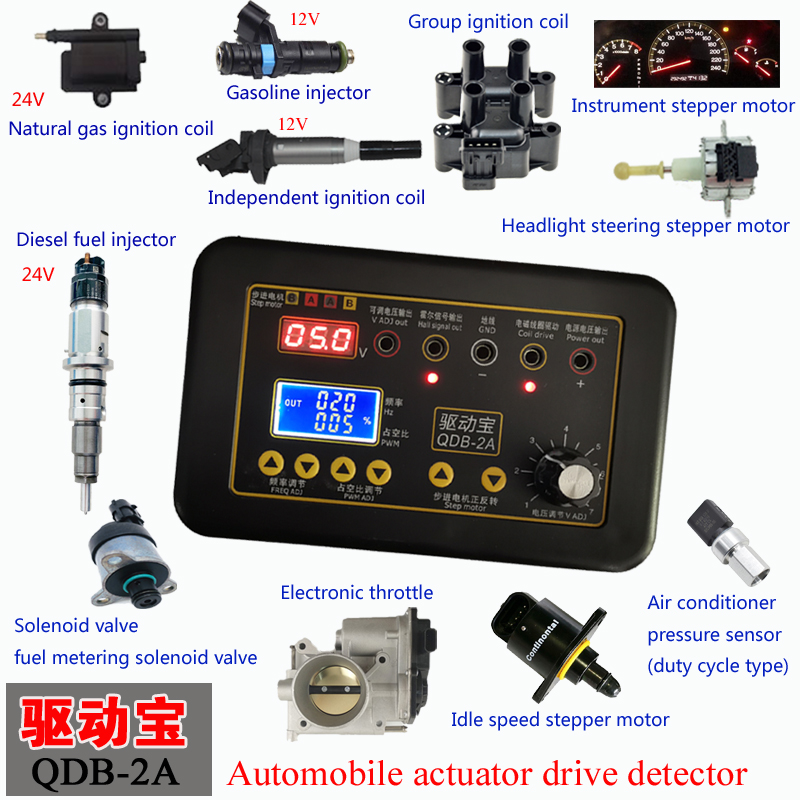

Main Functions:

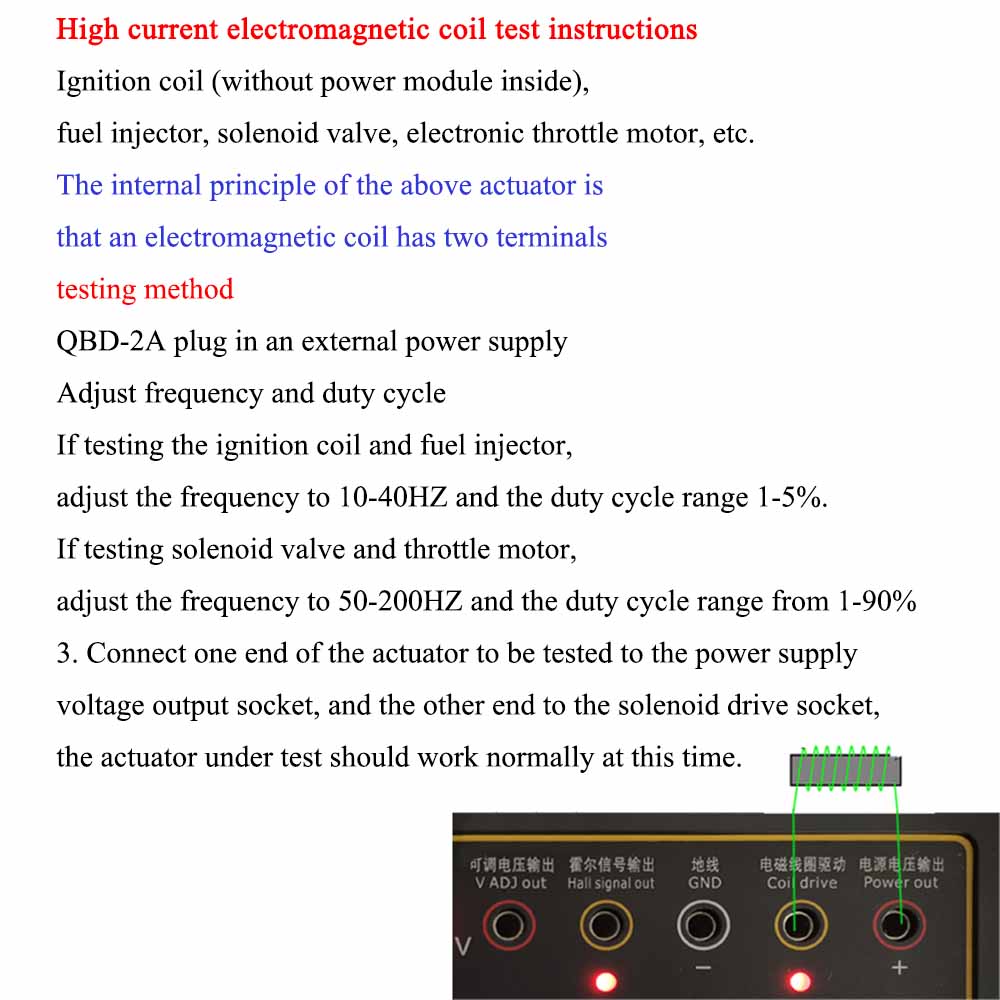

1. Drive and test the ignition coil: 12V gasoline car ignition coil, 12V-24V natural gas ignition coil
2. Drive test injectors: 12V gasoline injectors, 12V-24V diesel injectors
3. Drive and test various duty cycle control solenoid valves, such as fuel metering valves and EGR valves
4. Drive and test various duty cycle control motors, such as electronic throttle motors, urea pump motors

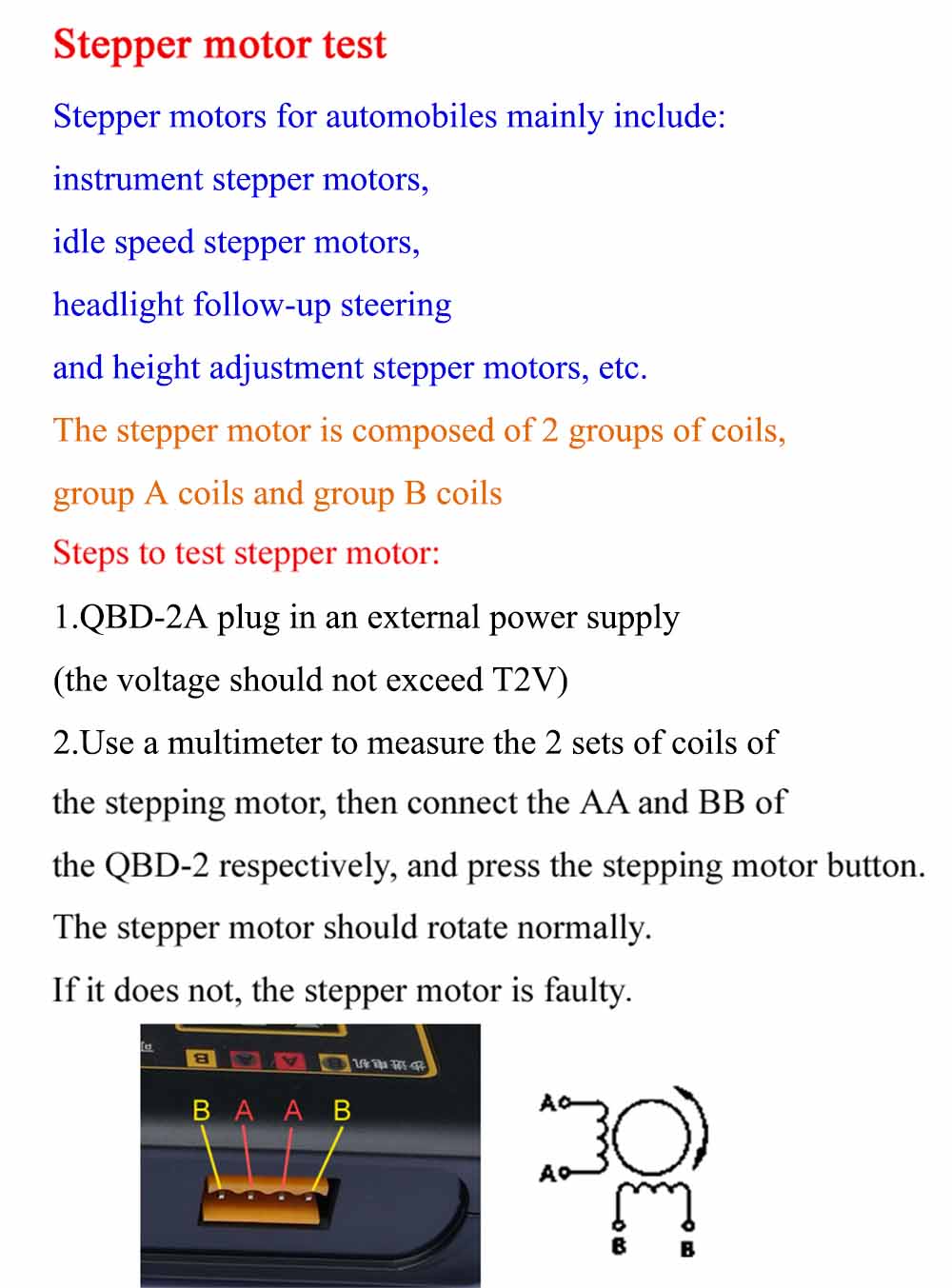

5. Drive and test idling stepper motors, instrument stepper motors, headlights, stepper motors, etc.

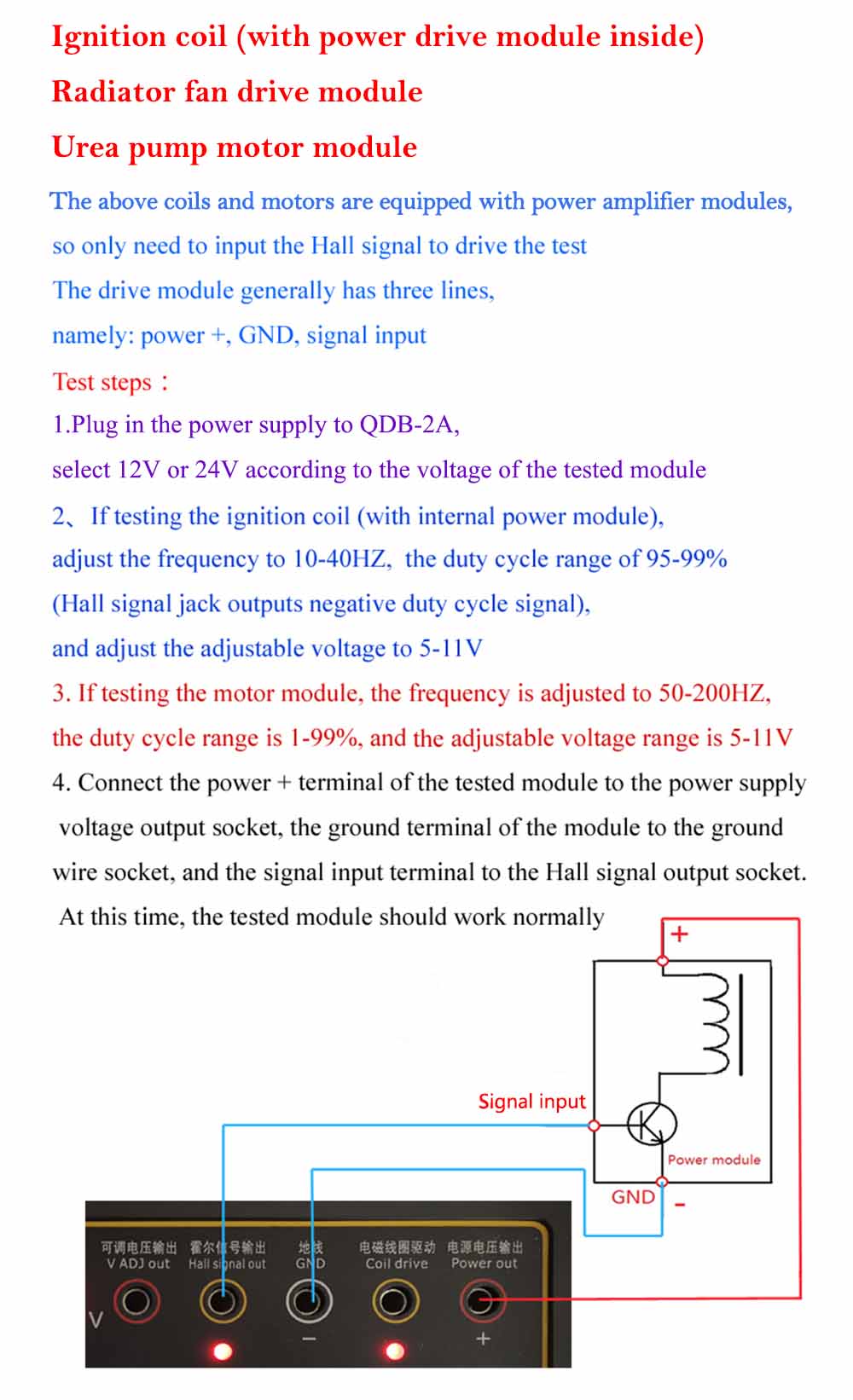

6. The output frequency, amplitude, duty cycle adjustable Hall signal, used to drive the duty cycle control electronic module, can also simulate duty cycle sensors, such as air conditioning pressure sensor (duty cycle type), air flow Meter (duty cycle type)
7. Power supply voltage: 12V-24V, with reverse connection protection, over-current protection (automatically cut off if the current is too large)
Parameters:
- Electromagnetic coil drive current range: 0-3.5A
- Output frequency range: 1HZ-100KHZ
- Duty cycle adjustment: 1%-100%
- Hall signal amplitude: 1.3V-11.5V
- Adjustable voltage output: 1.3V-11.5V

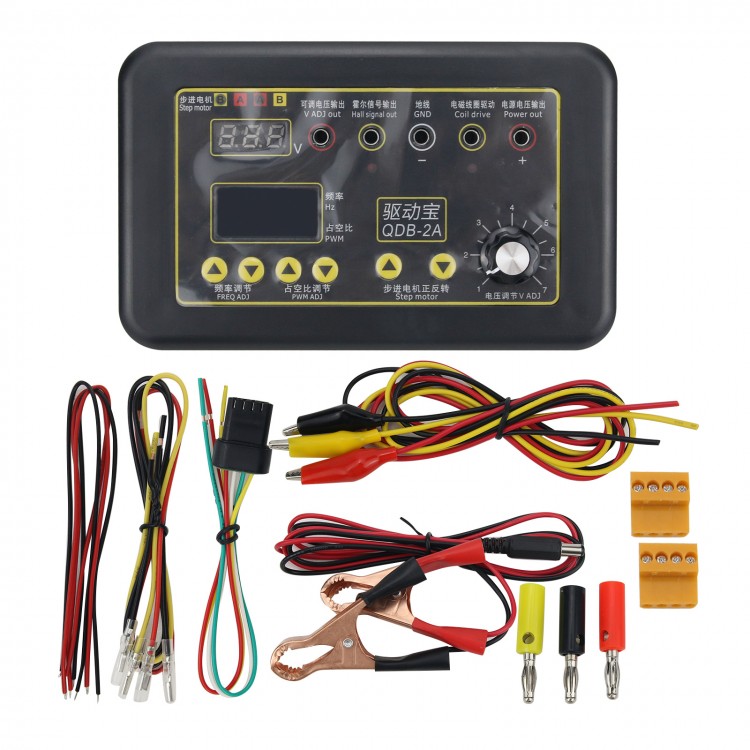

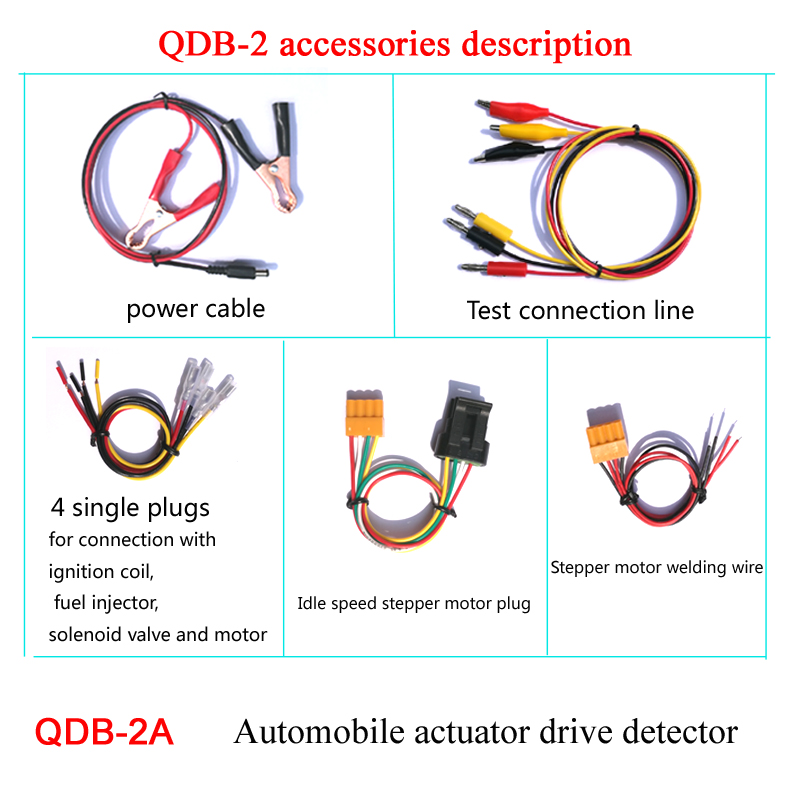

Package Included:
- 1 x Set of Tester
Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
