10A Tracer-1210RN MPPT Solar Controller Charger DC12V 24V Solar Panel Power Regulator w/MT-5 LCD Display Remote Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$94.84
  • Price in reward points: 948 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $92.94 $91.05 $88.20 $84.41 Contact US
Quantity:

10A Tracer-1210RN MPPT Solar Controller Charger DC12V 24V Solar Panel Power Regulator w/MT-5 LCD Display Remote Meter

10A Tracer MPPT Solar Controller  Specification:

- Nominal System Voltage:12VDC/24VDC Auto swicth
- Rated Battery Current:10A
- Maximum Battery Voltage:32V
- Max. Solar Input Voltage:100VDC
- Max. PV input power :12V System 130W ; 24V System 260W
- Self-consumption:<10mA(24V)
- Charge Circuit Voltage Drop:Less than or equal to 0.26V
- Discharge Circuit Voltage Drop:Less than or equal to 0.15V
- Communication:TTL232/8pin RJ45
- Operating temperature:-35°cto +55°c
- Storage temperature:-35°c to +80°c
- Humidity:10%-90% NC
- Enclosure:IP30(indoor)
- Dimension:156 x 97 x 68 mm
- Mounting holes:147 x 60 mm
- Mounting hole size:Phi5

10A Tracer MPPT Solar Controller  Features:
- MPPT(Maximum Power Point Tracking) technology
- Peak conversion efficiency of 97%
- High Tracking efficiency of 99%
- Several seconds tracking speed
- 4-Stage charge with PWM output
- Nature convection cooling
- Full power output in ambient temperature up to 45 °c
- Temperature compensation
- Sealed, Gel and Flooded battery option
- Widely used, automatically recognize day/night
- Diversified load control
- RJ45 interface &optional meter
- CE certificate

10A Tracer MPPT Solar Controller  Electronic Protections:
- PV array short circuit
- Over discharging
- Over charging
- Load overload
- Load short circuit
- PV reverse polarity
- Battery reverse polarity

MT-5 Remote Meter  Specification:
- Rated voltage 12V, min voltage (suggest): 8.0V
- Strong backlight on:<23mA
- Low backlight on:<20mA
- Backlight and LED indicator off:<17mA
- Operation temperature:-40°c ~ +60°c
- LCD operation temperature:-10°c ~ +40°c
- Humidity:0-100%
- Communication cable:RJ45(8PIN), 3 meter

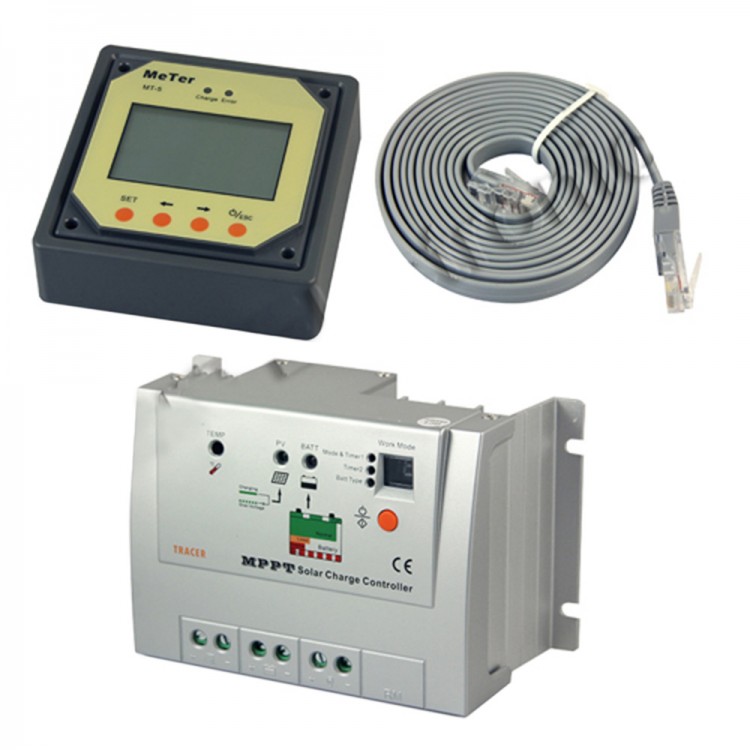

Package Includes:
- 1x MPPT Solar Controller
- 1x  MT-5 Remote Meter
