|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$818.88||$802.17||$777.10||$743.68||Contact US|

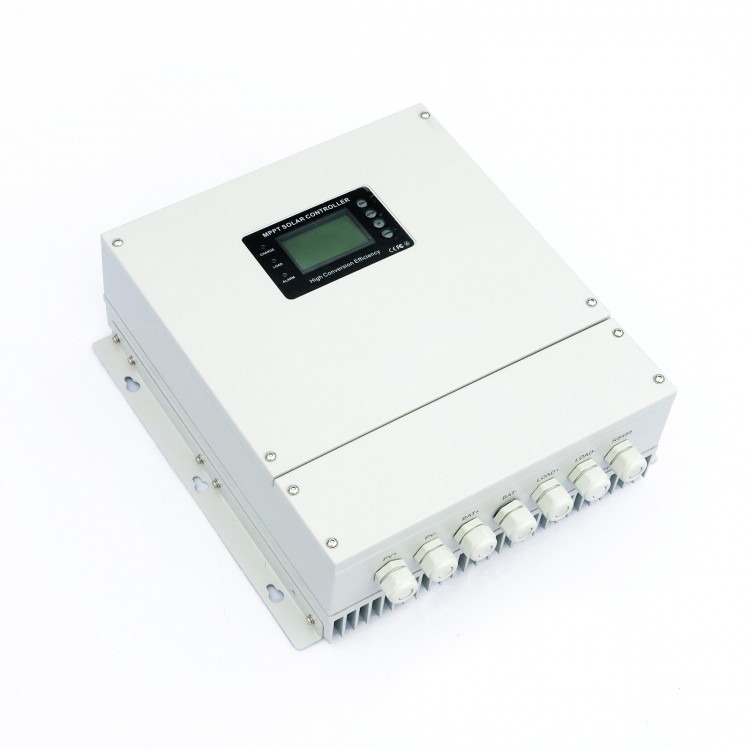

100A MPPT Solar Charge Controller DC 12V/24V/36V/48V Auto Battery Charger Regulator Max. PV Input 150V
The series has high conversion efficiency, efficient MPPT algorithm, neat internal structure and beautiful appearance design. With the continuous optimization of the products, the series has its unique advantages:
1. The various sampling data show on the screen, convenient user access.
2. The wide input voltage range of PV, suitable for a variety of commonly used specifications of solar panels.
3. The professional adaptation of high voltage battery system, providing solutions for special applications.
4. The extension of the functions of WIFI, wireless communication and remote cloud monitoring.
5. Expand the function of parallel machine to meet the combination application of multiple products.
6. The machine function and development, meet the multiple product combination application. Continuous optimization design, super high cost performance.
- It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%，and converter efficiency up to 98%
- Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
- Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control .
- Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings can be selected by the user, and the user can also customize the parameters for other battery charging.
- It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.

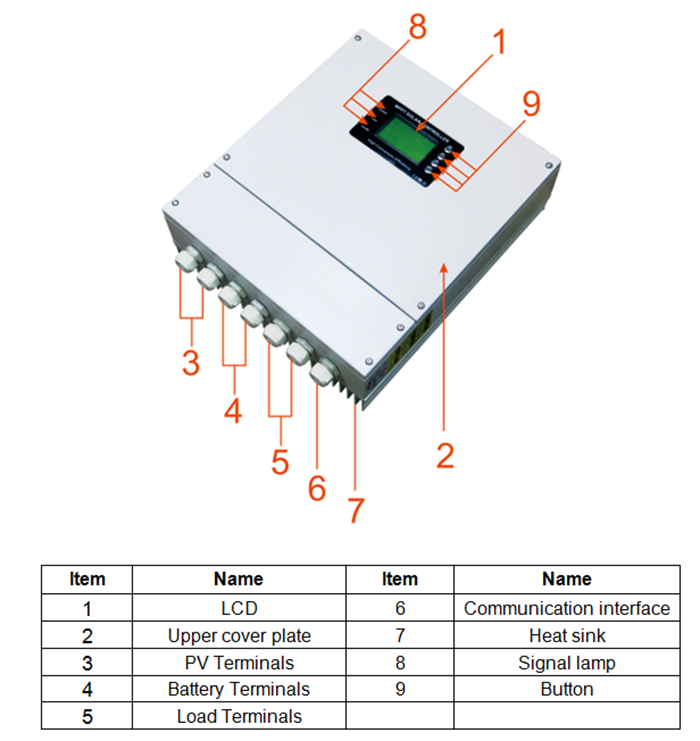

- High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.

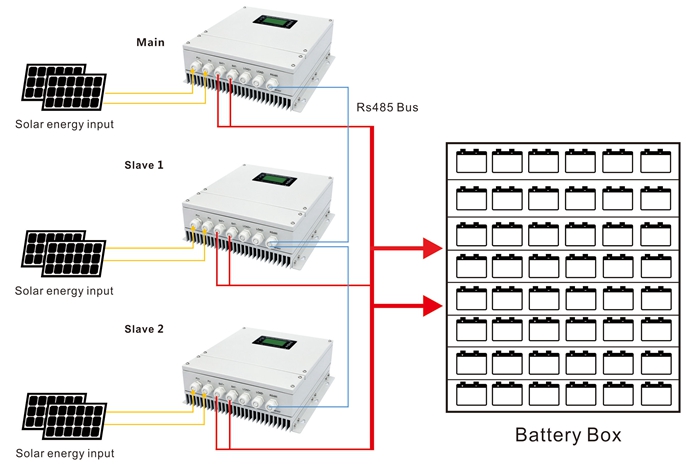

- Support multi - machine parallel to realize system power upgrade.
- RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.

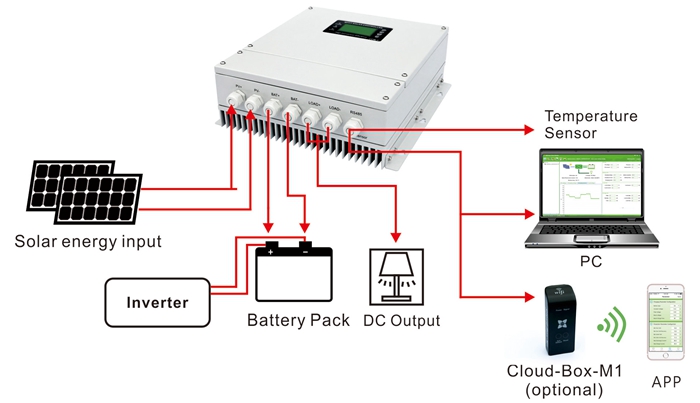

- Support PC software monitoring and WiFi module to realize APP cloud monitoring.
- CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.
- Charging Current: 100A
- Charge Mode: MPPT (Maximum Power Point Tracking)
- MPPT Efficiency:≥99.5%
- System Type: DC 12V/24V/36V/48V Automatic recognition
- PV Max. Voltage (VOC): DC 150V
- Over Voltage Protection Point: DC 150V
- Rated PV Power:
12V system 1300W
24V system 2600W
36V system 3900W
48V system 5200W
- Size of Solar Charge Controller: 500 x 350 x 140mm
- Net Weight (kg): 7.1kg
- Volume Weight: 15 kg
- 1 x MPPT Solar Charge Controller
- 1 x Temperature Sensing Wire
- 1 x User Manual
