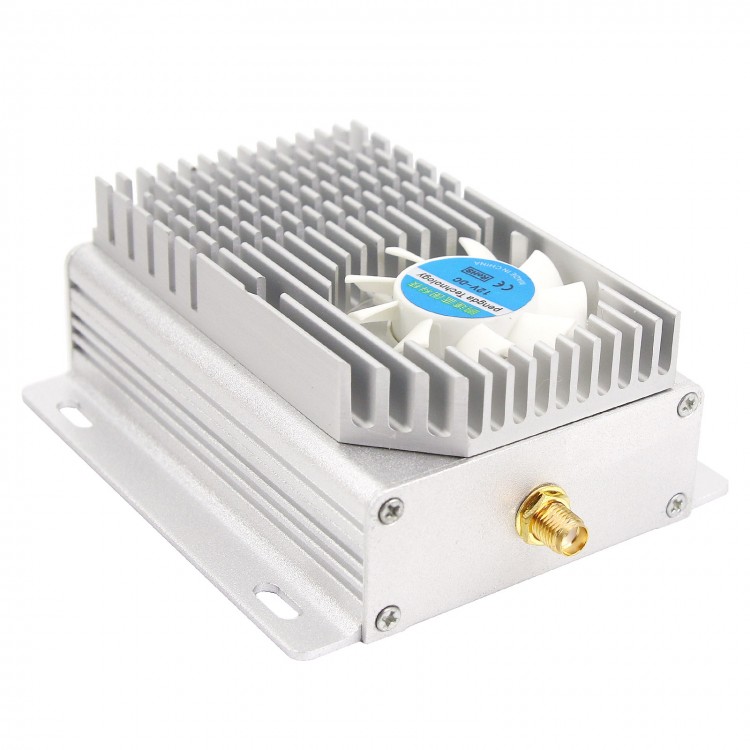

10M-1000M Broadband RF Power Amplifier Module 4W Industrial Level High Frequency
Description:
10M-1000MHz 4W broadband RF power amplifier is a broadband power amplifier with P-channel LMDS tube as the final amplifier. It can achieve a small signal linear gain of up to 33dB over a wide band. The saturation output power can reach 4W.
Performance Features:
· Frequency range: 10-1000MHz
· Gain: 33dB
· Saturated output power: 35dBm
· +15V@400mA (static)
· Feeding method: through-core capacitor (welding)
· Input & output interface: SMA-K
· Comes with cooling fan

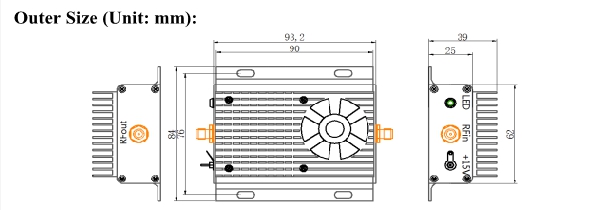

· Dimensions: 90 x 84 x 39 mm (without the size of connector)
Electrical Parameters (TA=+25℃@=15V):
· Saturated output power: typical value 36 dBm
· P1dB: typical value 33 dBm
· Linear gain: 32dB maximum; 33 dBm typical; 34dB minimum
· Linear gain flatness: maximum value -1dB; minimum value 1dB
· Static working current: typical value 400mA
· Dynamic working current: maximum 700mA
· Input & output impedance: typical value 50Ω
Package Included:
- 1 x Set of RF Power Amp
Precautions:
1) The product needs to be stored in a dry environment;
2) Before the product is powered on, ensure that the input and output are reliably connected to a 50 ohm load;
3) External heat dissipation part is needed for long-term operation.

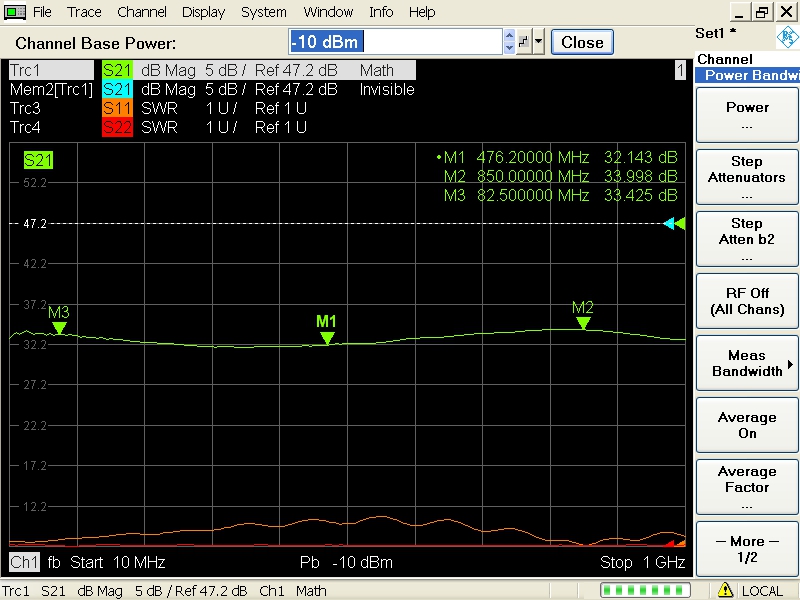

Small signal test chart (input signal -10dBm):

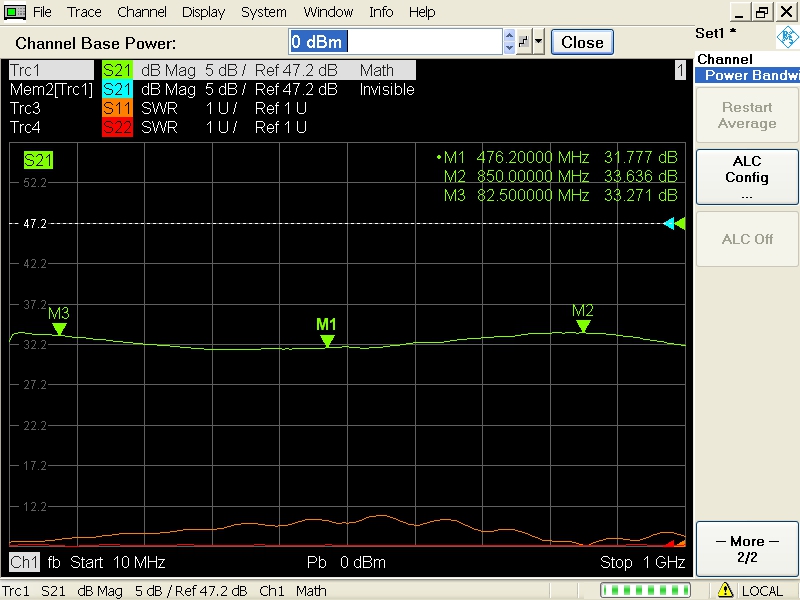

Small signal test chart (input signal-0dBm):

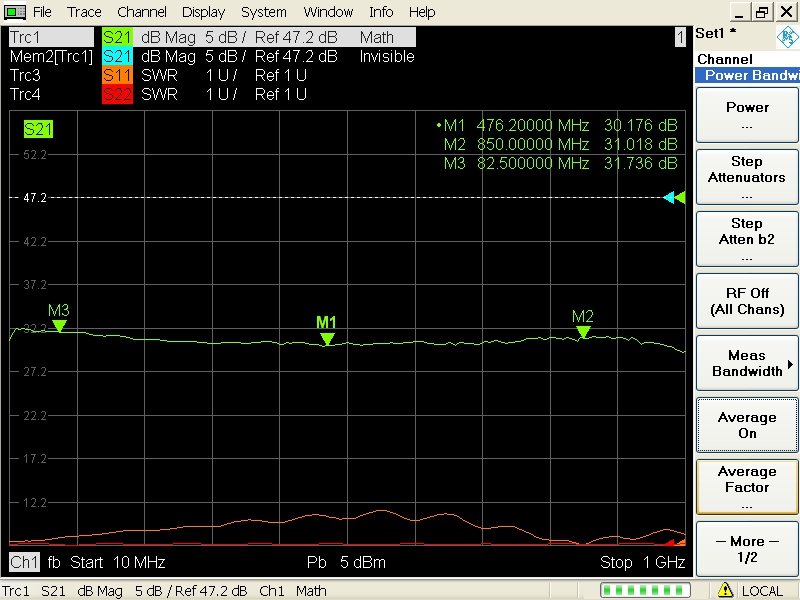

Large signal test chart (input signal 5dBm):
Saturation test chart (input signal 10dBm):
