RF 10-1000MHz High Frequency Wideband Power Amplifier Module 40dB 10W Industrial RF Amplifier with SMA-K Connector

Description:

- The 10-1000MHz 10W broadband RF power amplifier is a broadband power amplifier that can achieve small signal linear gain of up to 40dB in the broadband range, with a typical saturation output power of up to 10W. It comes with a built-in cooling fan, which can ensure independent long-term operation without other cooling methods.

Specification:
- Frequency range: 10 - 1000MHz
- Gain: 40B
- Saturation output power: 40dBm
- +28V at 250mA (static)
- Feed method: through core capacitor (welding)
- Input and output interface: SMA-K
- Cooling fan: yes

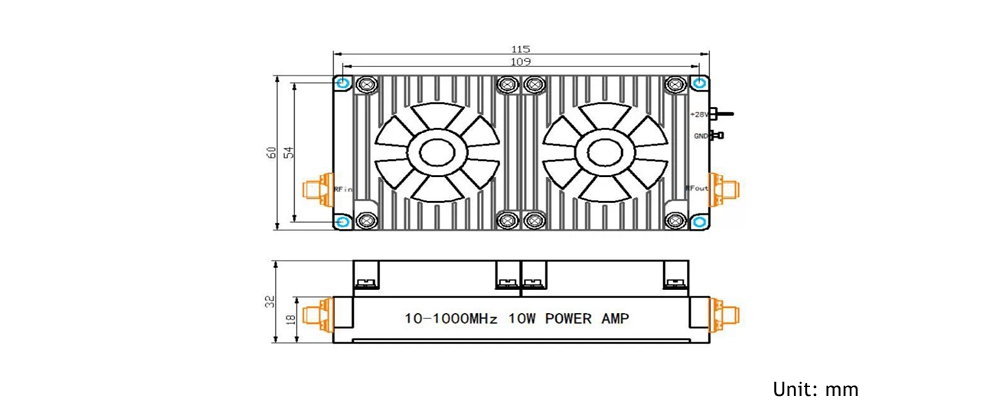

- Dimension: 115 x 60 x 32mm (excluding the connector length)

Package Included:
- 1 x Power Amplifier

Note:
- The product needs to be stored in a dry environment.
- Before powering on the product, it is necessary to ensure that both input and output are reliably connected to a 50ohm load.
- The product requires external ventilation and heat dissipation for a long time working.
