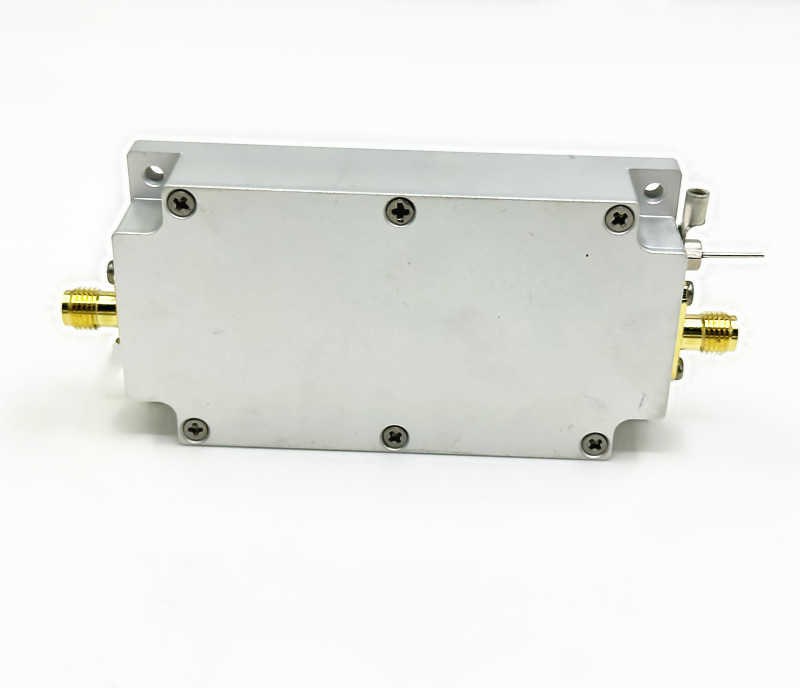

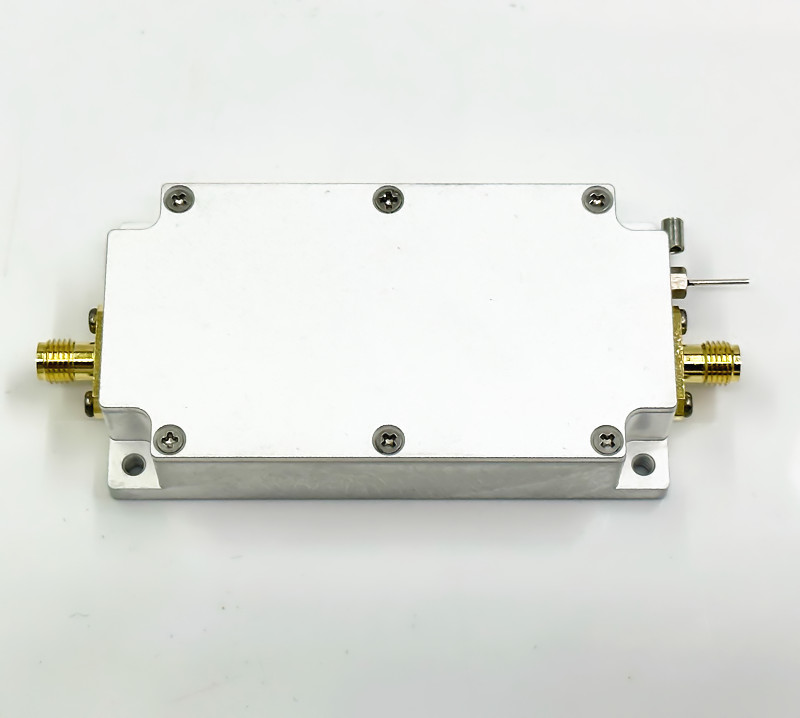

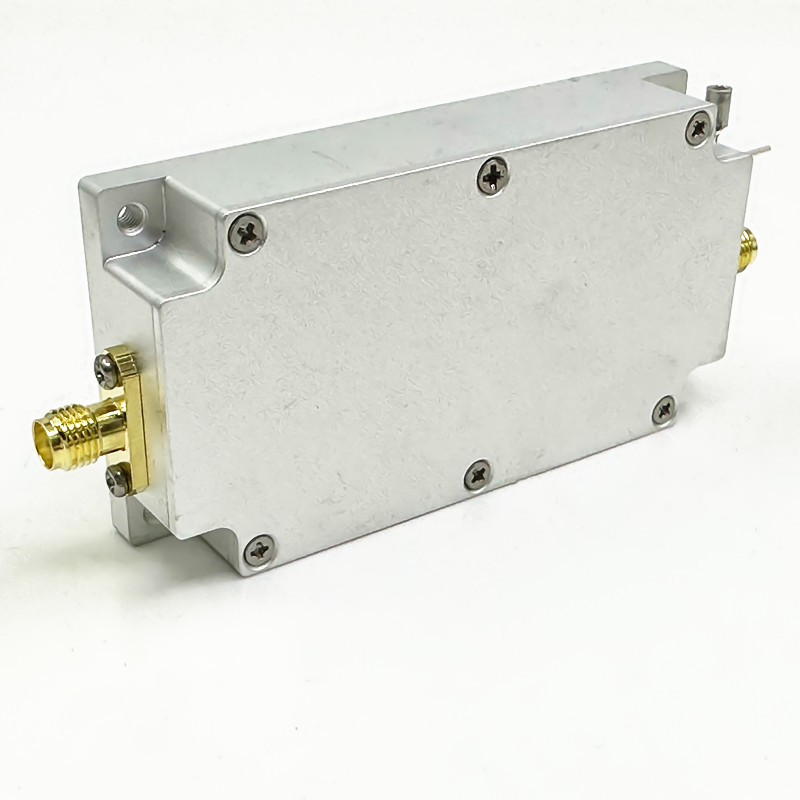

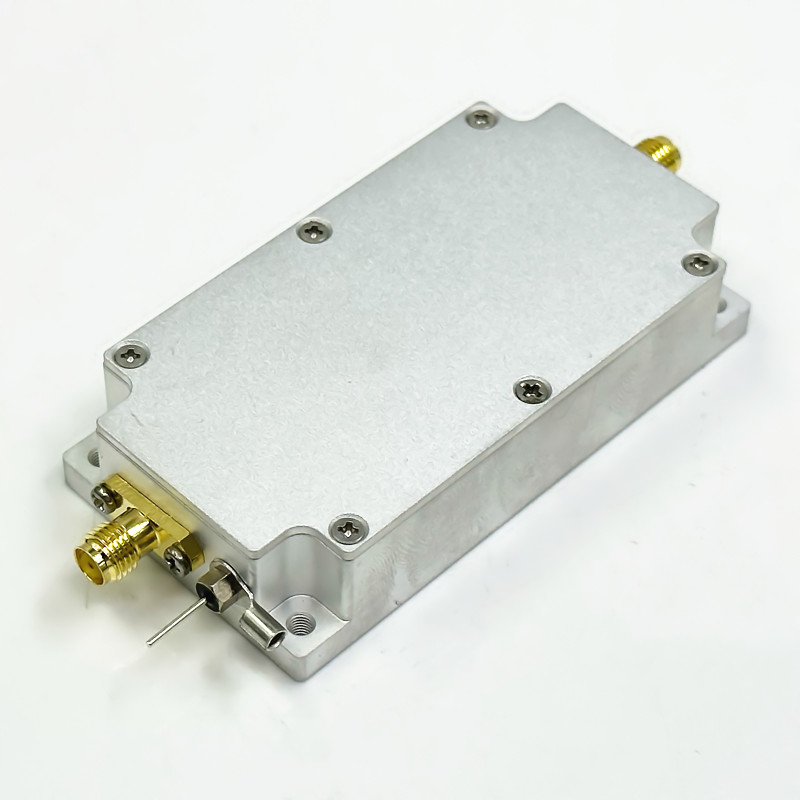

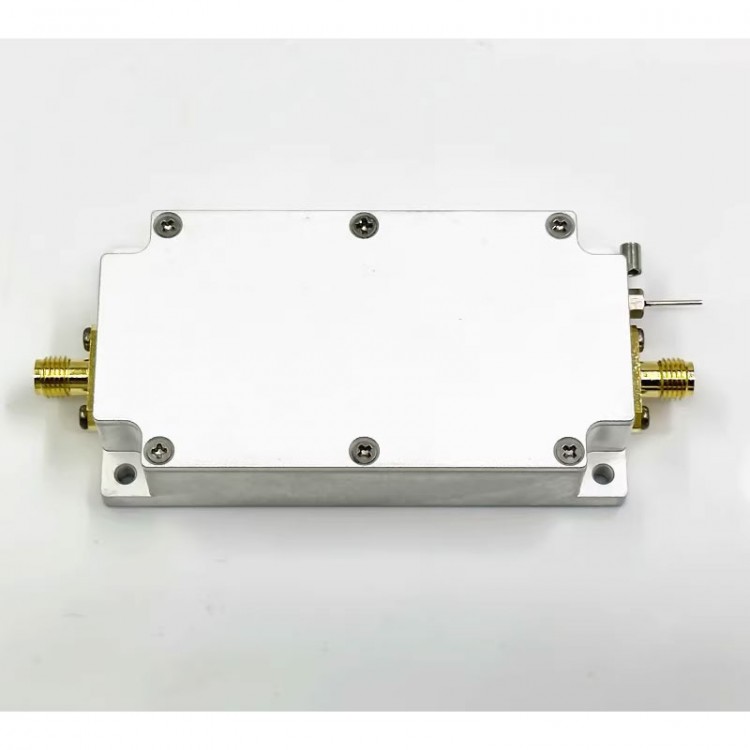

900-1000MHz RF Power Amplifier Module RF Power Amp Features 15W Output Power and 40dB Gain

900-1000MHz RF Power Amplifier Module RF Power Amp Features 15W Output Power and 40dB Gain

Technical Specifications:
* Operating Frequency: 900-1000 MHz (915 MHz, 980 MHz)
* Output Power:
   13 W (41 dBm at 24 V, RFin = 5 dBm (3 mW))
   15 W (42 dBm at 28 V, RFin = 5 dBm (3 mW))
* Operating Voltage: 20-28 V (24 V recommended)
* Operating Current: 1.7 A (varies with supply voltage)
* System Impedance: 50 Ohms

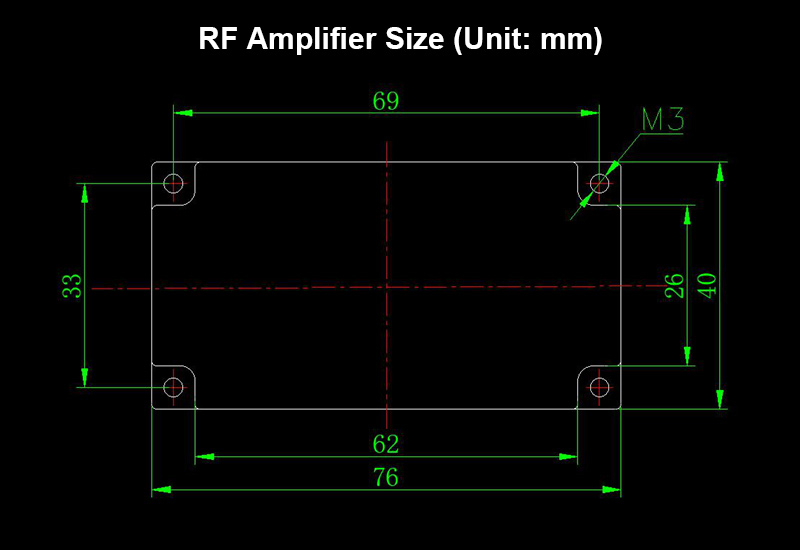

* Dimensions: 76 × 40 × 16.5 mm (excluding connectors)
* Product Weight: 95 g
* Connector Type: SMA female
* Note: Requires an external heat sink

Attention:
* Before using this RF amplifier module, ensure that all instruments and equipment share a common ground (i.e., no potential difference exists between them). Then connect the devices using RF cables, and always connect a load. Operating without a load is strictly prohibited, especially for power amplifiers.
* Make sure to use a proper antenna. When using an antenna as a load, it is crucial to ensure impedance matching at the operating frequency (usually requiring a Voltage Standing Wave Ratio (VSWR) of less than 2.0). Do not use antennas such as telescopic antennas, copper wire antennas, or extremely cheap antennas, as these do not have a defined impedance.
* It is recommended to use a linear power supply, especially when using low-noise amplifiers. A switching power supply generates significant noise, which can couple into the amplifier circuit. Therefore, do not use switching power supplies; use a linear power supply or batteries instead.
* Batteries are not included in the package.

Packing List:
* 1 x RF Amplifier

Packaging Details:
* Weight: 0.25kg
