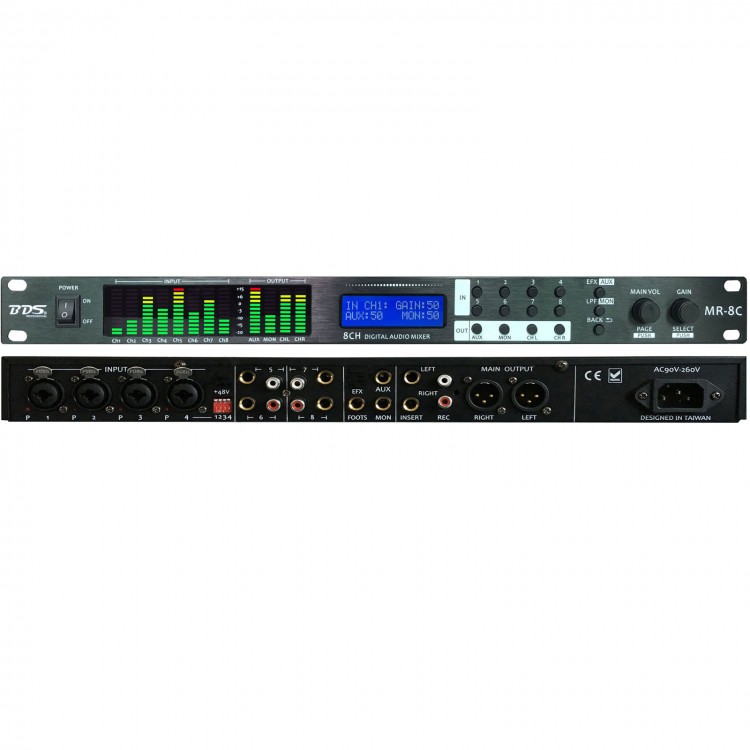

MR-8C Digital Audio Mixer Console High Performance Speaker Amplifier Microphone with LCD Display
Features:
- Standard 1U thin and ultra-small chassis size
- This machine adopts high-performance DSP chip control
- Adopt 2002 dot matrix screen to display the status of the whole machine
- Both input and output have LED spectrum display level
- Input and output adjustment parameters fast key group
- The effector and bass crossover quickly execute the button group
- 4-channel cannon dual-purpose input interface (support 48v power supply)
- 2 way stereo jack or lotus head interface
- The input interface can adjust the high, middle and bass balance
- Stereo XLR main output with INSERT interface
- AUX auxiliary and mono output
- Foot pedal control effect interface
- The input can be adjusted with 4 bands of equalization and 2 bands of frequency points are adjustable
- Integrated 12-segment high-brightness LED spectrum display module
- Both input and output have 12-segment level display
- Support output end bass crossover, pressure limit and other adjustments
- The input has effects and auxiliary and mono output
- Support AC full voltage power input
Specification:
- Power supply: AC90v-260v (50hz / 60hz)
- Power consumption: 10w - 15w
- Input gain:
MIC INPUT: 55db
LINE INPUT: 40db
STEREO INPUT: 24db
- EQ:
MIC: +- 15db low: 60Hz mid: 2.5KHz hi: 12KHz
LINE: +- 15db low: 60Hz mid: 2.5KHz hi: 12KHz
OUTPUT: low: 60Hz mid: 2.5KHz hi: 12KHz
- Frequency response: Any input 22Hz-40KHz±0.5db
- Distortion: under: 0.0008%
- Output level:
XLR: normal: +4dbu; max: +23dbu; output impedance: 100 ohms
RCA(JACK): normal: -2dbu; max: +17dbu; output impedance: 100 ohms
AUX: normal: -2dbu; max: +23dbu; output impedance <10 ohms
MON: normal: -2dbu; max: +23dbu; output impedance <10 ohms
- Low crossover: +-15db frequency 60Hz-300Hz
- Effect: ECHO, DELAY, FLANGER, PITCH, REVERB
- LED Module: 12 x 12section
- LED Color: green, yellow, red
- Dimension: 483mm x 44mm x 130mm
Package Included:
- 1 x MR-8C Digital Mixer
