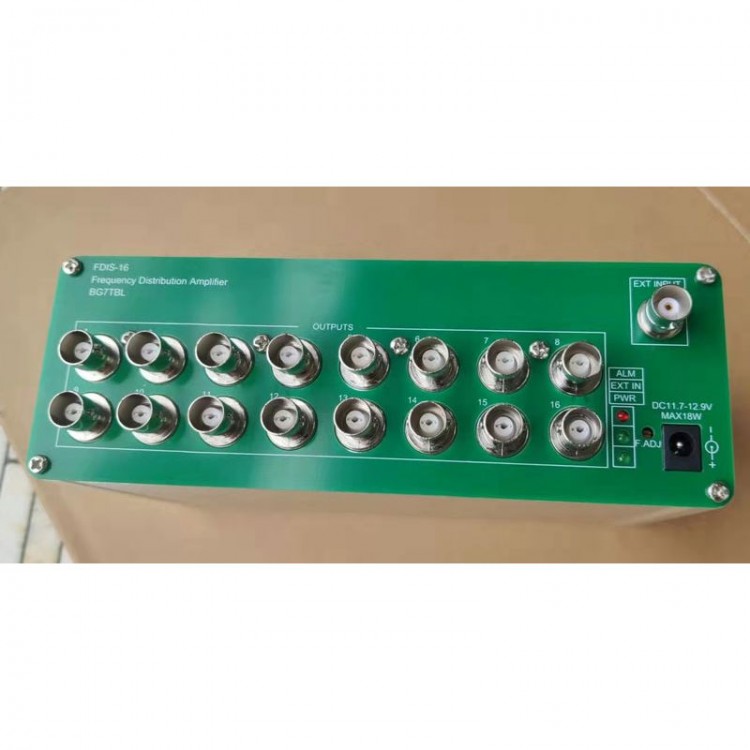

10M Sine Wave BNC Port 13dBm Frequency Distributor 16-Channel Output Frequency Divider Distribution Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$185.20
  • Price in reward points: 1852 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $181.50 $177.79 $172.24 $164.83 Contact US
Quantity:

10M Sine Wave BNC Port 13dBm Frequency Distributor 16-Channel Output Frequency Divider Distribution Amplifier

Specification:

- Model: FDIS-16
- Power supply: DC11.7 - 12.9V, maximum 18W, 5.5/2.1 socket
- Input: AC coupling, 0.5Hz - 200MHz, 0.1Vpp - 5Vpp
- Input impedance: 25kohm
- Output: 16-channel, 12dBm sine wave
- Connector: BNC Connector
- Indicator:
  PWR: light up when power on
  EXT IN: External input signal indicator; light up when input signal is over 0.5Hz, otherwise it will flash or light off
  ALM: alarming indicator; light up when input signal is below 0.5Hz, otherwise it will flash or light off
- Operating temperature: -20℃ ~ +70℃
- Relative humidity: ≤85% (45℃)
- Storage temperature: -30℃ ~ +70℃
- Size: W x H x L = 178 x 62 x 120mm
- Net weight: 800g

Package Included:
- 1 x Frequency Divider
- 1 x Power Adapter (AC110 - 220V - DC12V/1.0A)
