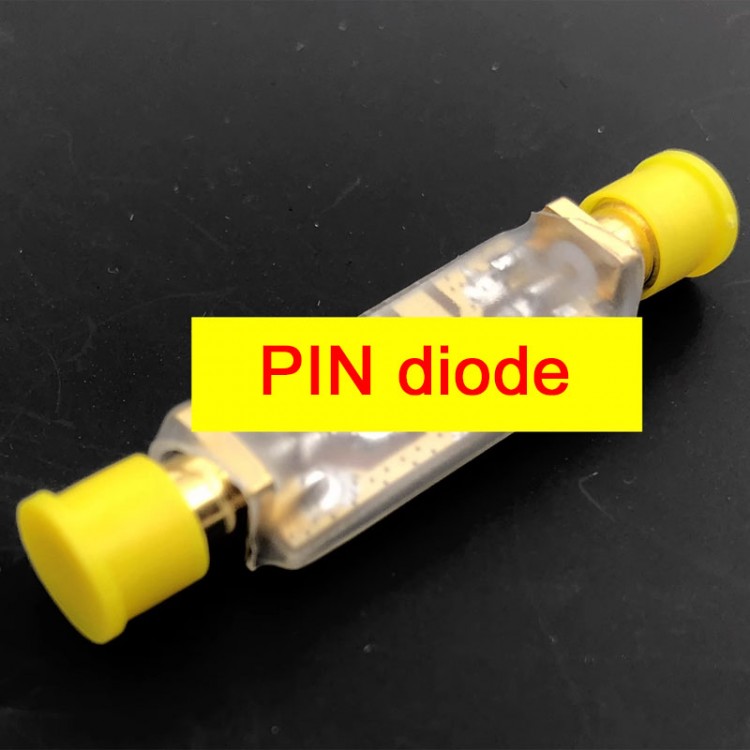

10MHz-6GHz 0dBm PIN Diode SMA RF Limiter Module without CNC Shell for RF Devices Input Protection
Description:
- The RF limiter is used for input protection of low-power receiving equipment such as low-noise preamplifiers, SDR receivers, and spectrum analyzers, which can effectively resist ESD damage. It can also be used for input protection of shortwave receivers. This product contains a solid aluminum alloy shielding shell, no leakage, no interference, small and easy to use. It is a needed device for radio frequency and microwave technology experiments.
Parameters:
- Model: Limiter 0dBm
- Impedance: 50 Ohms
- Insertion loss: <0.2dB @ 1GHz/0dBm; <2dB @ 1 ~ 3GHz/0dBm; <3dB @ 3 ~ 6GHz/0dBm
- Attention: Specific reference to the measured S21 curve
- Maximum input power: 0dBm
- 1dB limiting power: <0dBm

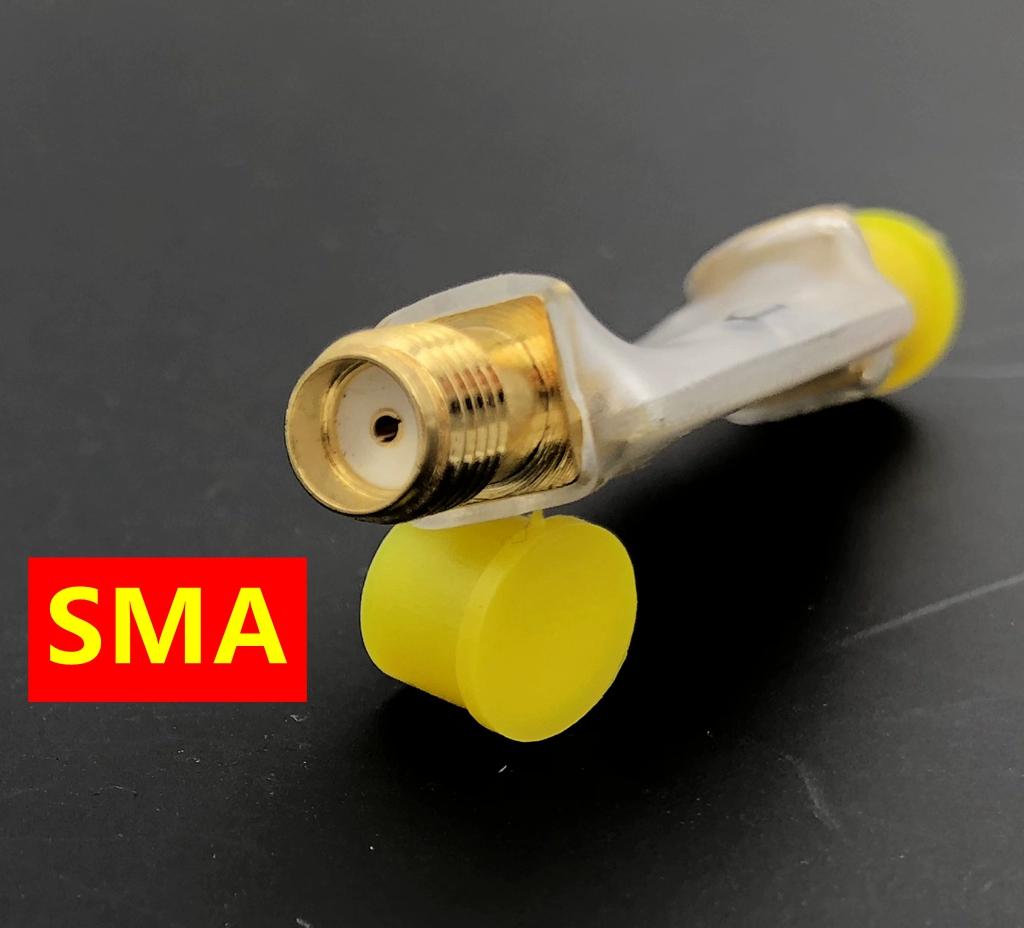

- Interface: SMA female connector
Package Included:
- 1 x RF Limiter

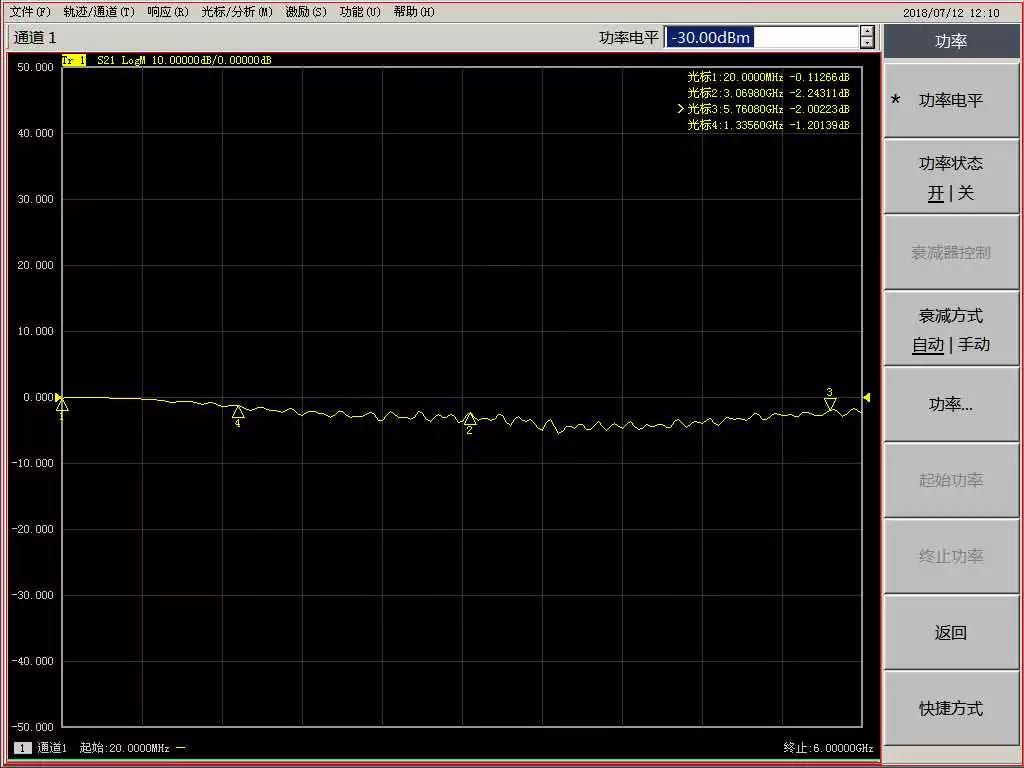

Measured S21 Insertion Loss (0dBm limiter frequency range up to 6GHz):
